High-Power TWTA Satellite Terminals Single Thread System Installation
Rev.1 2–13

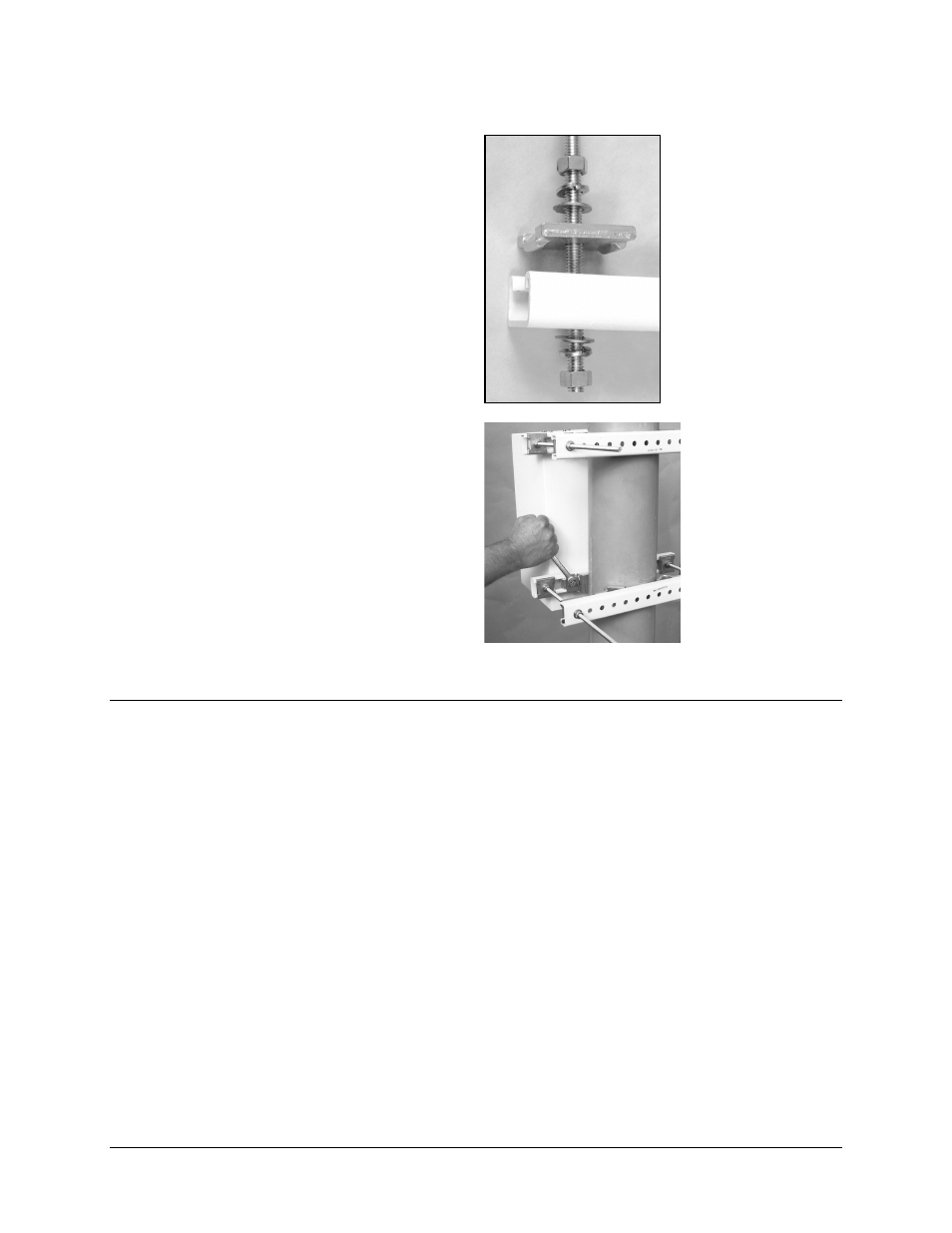

c. Install a 5/16” flat
washer, 5/16” split
lockwasher, and 5/16-
18 nut on each
threaded rod.
d. Position the TWTA as
desired, and tighten
the 5/16-18 nuts
installed in Step 5.c.
e. Slide the pipe blocks
inward until they
contact the vertical
pole, then firmly
tighten the 5/16-18
bolts.
2.3.2.2 Square Pole
For square vertical pole installation, follow the steps in Section 2.3.2.1, with the
following exceptions:
•
Do not perform Step 3.
•
Do not perform Step 5.e.
