High-Power TWTA Satellite Terminals Introduction
Rev. 1 1–11
1.2.4.2 HPC-1110
The HPC-1110 (Figure 1-8) is specifically designed to monitor and control a TWTA
in a 1:1 redundant configuration. Refer to Table 1-5 for a description of the
HPC-1110. Refer to Appendix A for programming guidelines.
Table Chapter 1-5. Description of the HPC-1110
Feature Description
EFData Part No. RF/XTC-111D
Auto Mode For automatic operation when switched from offline to online system.
Power Supply TWTA is power from an AC input.
Control Interface The control interface from the TWTA to the HPC is parallel (discrete) signal
lines.
Local Control Provides local control at the HPC site, or control from a remote site through a
remote control interface.
This is a manual selection at the HPC site.
Panels The front panel provides control switches and indicators. A rear panel of
discrete interface connections for the TWTA, an interlock connector input, and
a remote interface control connector. Also, an input is provided for the
waveguide switch position indicators. A fault indicator and fault reset is
provided for each channel.
T W TA
P o w er
Heater
S tan d b y
H V O N
P ow e r
Rem ote
Local M anual
A utomatic
Fault Reset Lamp Tes t
B
A
1 :1 C O N T R O L L E R

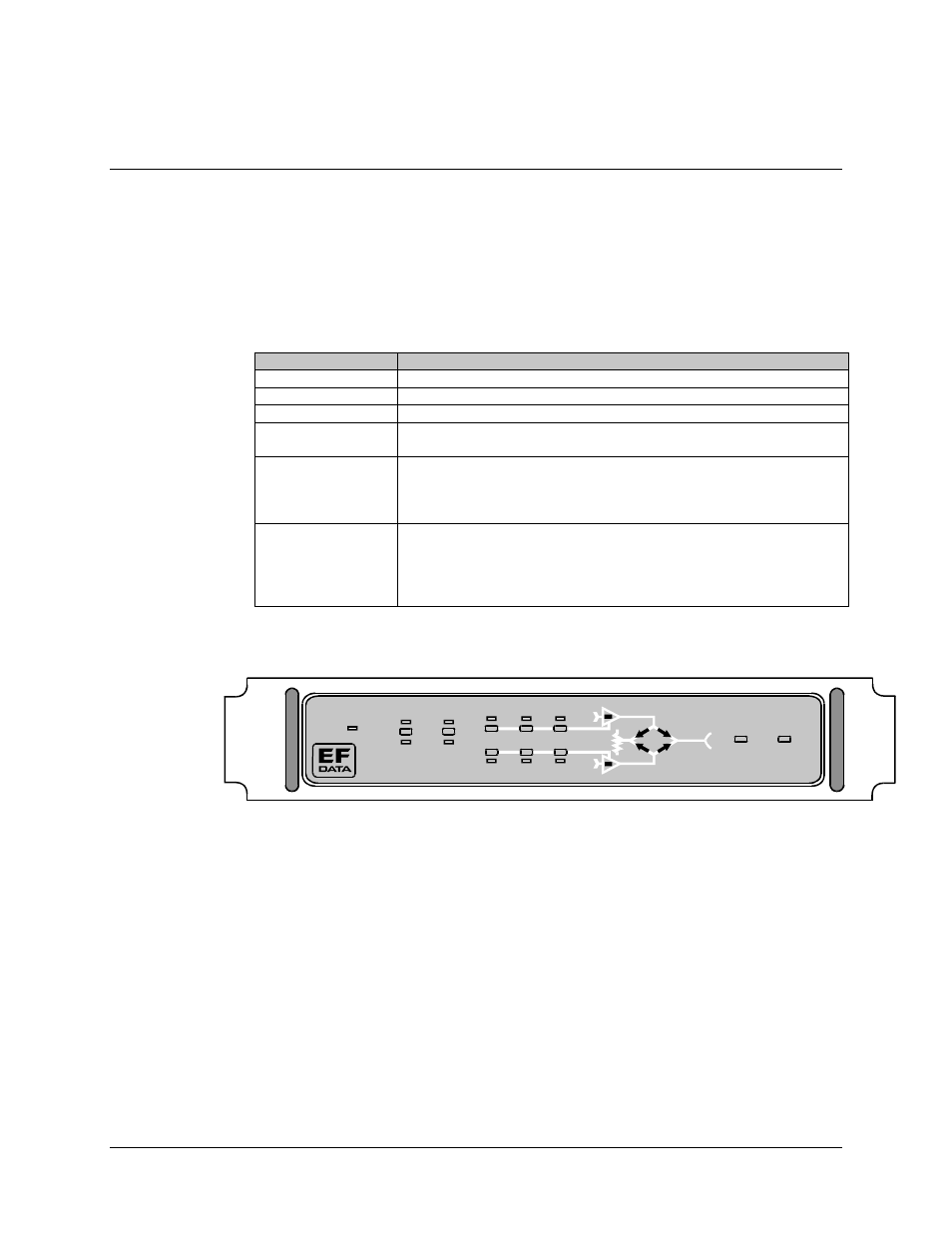

Figure Chapter 1-8. HPC-1110 1:1 Redundant Controller
