Redundant System Installation High-Power TWTA Satellite Terminals
3–28 Rev 1
3.4.2.1 Standard Connections
This section describes the line of connectors on the bottom of the HPC-1110 rear panel,
starting with the left-most (facing the rear panel) connector shown in Figure 3-7.
3.4.2.1.1 AC Prime Power
The HPC will operate from 84 to 260 VAC, single phase, 47 to 63 Hz power source.
For domestic systems, a prime power 115 VAC cable is supplied with the controller. The
prime power connector is shown in Figure 3-8.
Note: Prime power redundancy is built into the controller. If prime power to the
controller is lost and the TWTAs have prime power, the TWTAs will automatically
power the controller.
AC POWER
SWITCH
FUSE
BLOCK
AC
MALE
CONNECTOR
USE ONLY WITH 250V
FUSES /EMPLOYER
UNIQUEMENT AVEC
DES FUSIBLES DE 250V.

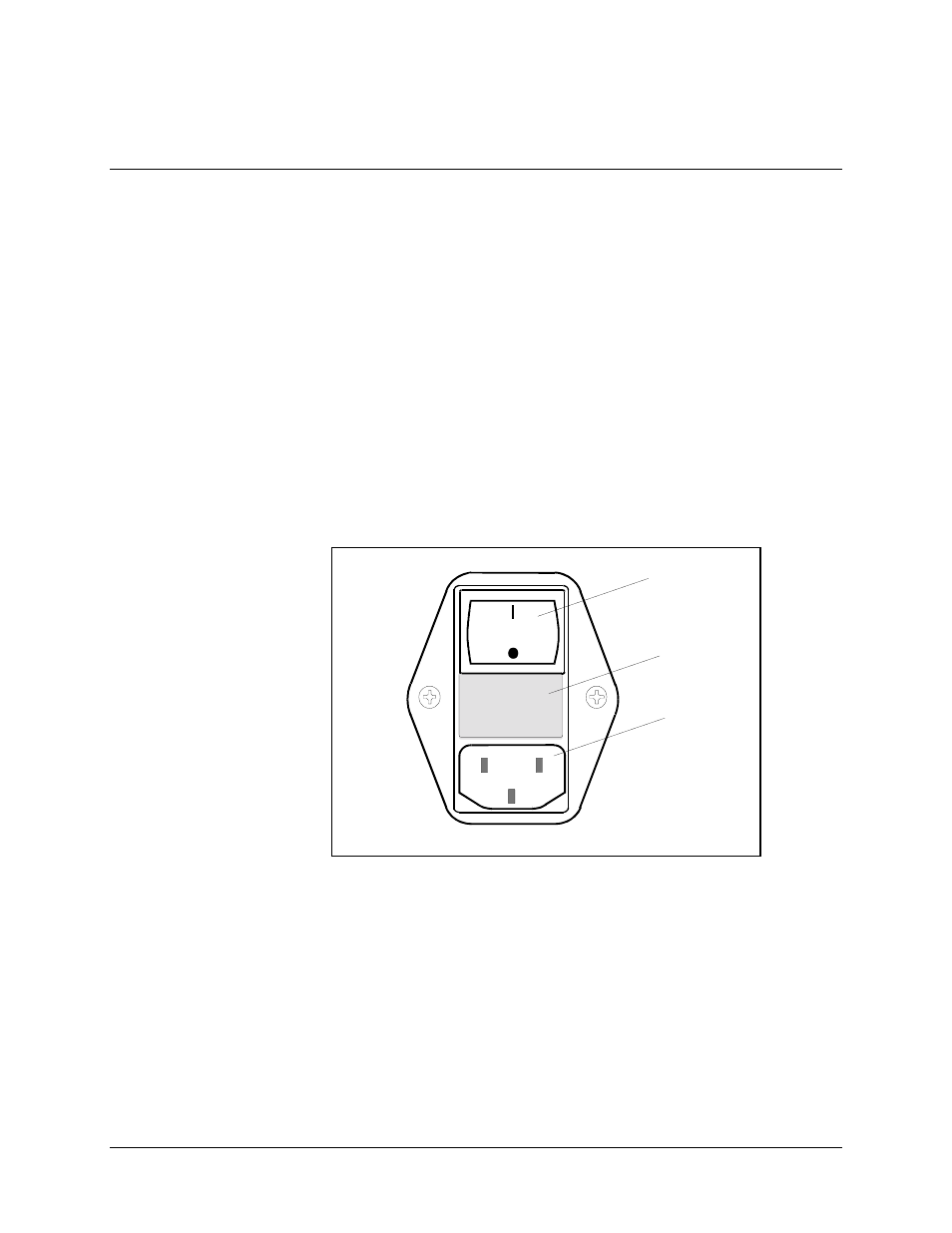

Figure 3-8. Prime Power Connector
