2.4 HPC-1200 Installation
2.4.1 Mechanical
Refer to Figure Chapter 2-8 for dimensional information. The controller can be rack- or
bench-mounted. The mounting brackets are removable.
Drawer slides are not required for rack installations. Mount the unit to the rack with the
mounting brackets supplied with the HPC-1200. The rubber feet are removable.
The following procedure assumes installation in a standard rack.
1. Verify that the rack will accept the unit. Refer to Figure Chapter 2-8 for
mounting dimensions.
2. Set the unit in place and secure it to the rack with screws and washers. (Rack-
mounting screws and washers are not supplied with the unit.)
Note: All connections are made at the rear panel of the unit.
T W TA C O N TR O L LE R
GND +15 VD C H E LIX
CUR RENT
HV
M ON IT O R
TE MP
A NALO G
EX T ERNA L IN TE RL OC K PO W ER
O N
HIG H V O LTAGE STAND
BY
FAULTS S TATU S
T E MP B EA M
SE LE C TED O N
HE L IX A RC F TD FAN L OCK HV O N SUM MARY FAU LT FA N ON LAM P T ES T
O N
L O CAL
R E MOT E
HEAT ER
S TAN DBY
ON
HIG H
VO LTAG E
AC
PO W ER
O N
4 8 .2 6 c m (
19 .0 0 in .
)
4. 09 c m (
1 .61 in.
)
1 6 .61 cm (
6.5 4 in .
)

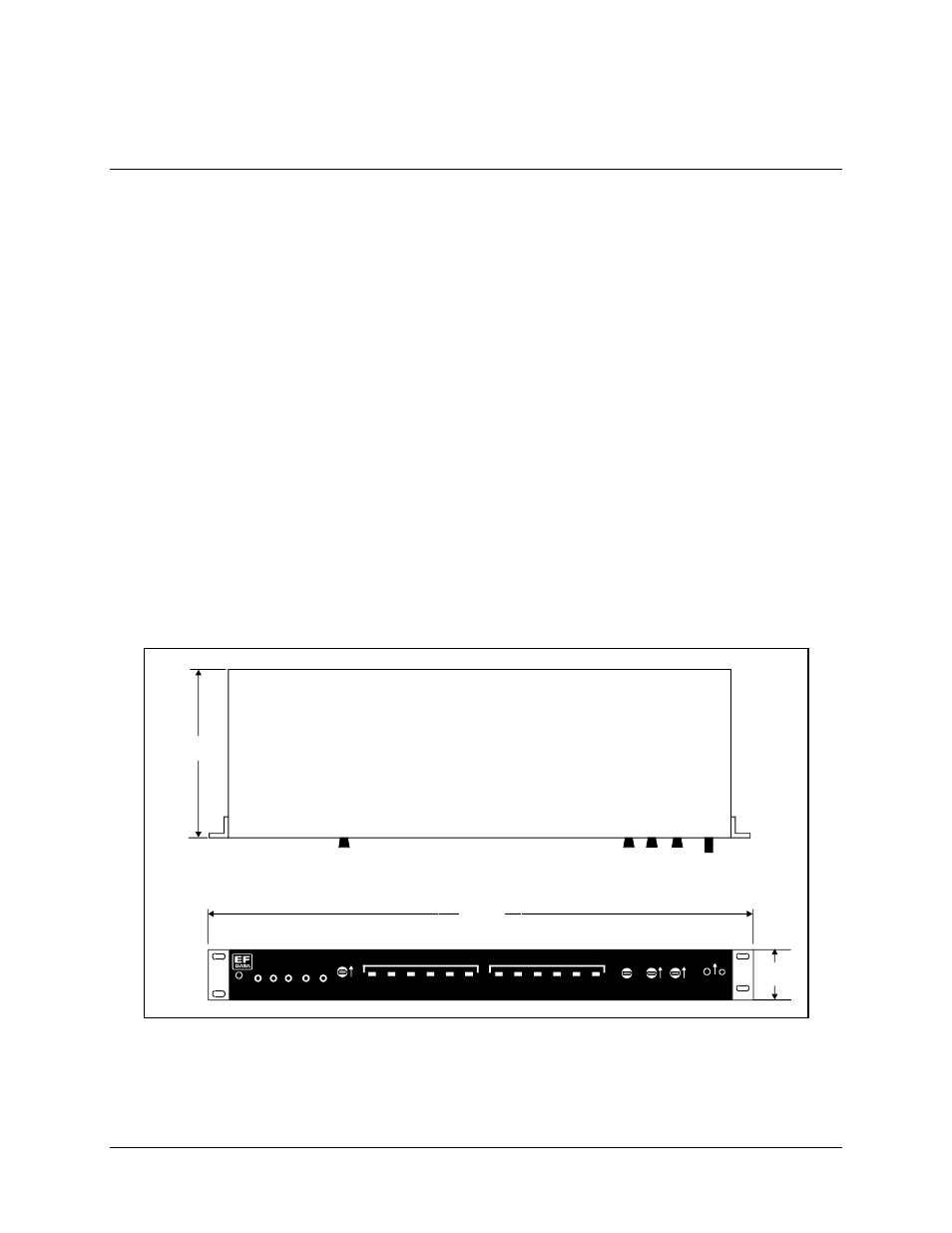

Figure Chapter 2-8. HPC-1200 Outline Drawing
