Chapter 5.
CONTROLLER FOR SINGLE
THREAD SYSTEMS
This chapter describes the HPC-1200 (Figure 5-1), the controller used for single thread
TWTA systems.

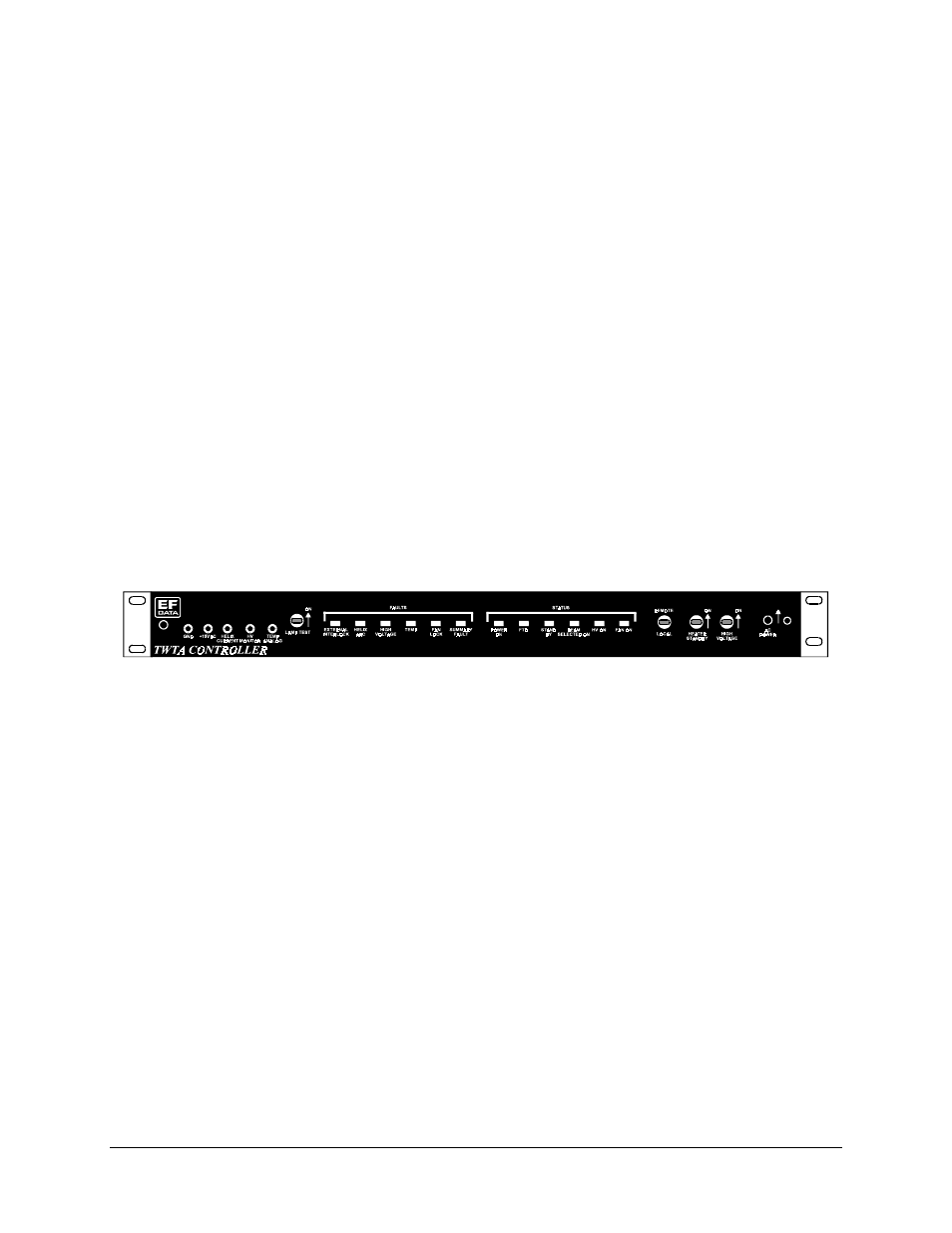

Figure 5-1. HPC-1200
The HPC-1200 provides full control and monitoring of the EFData TWTAs.
The HPC-1200 is cable connected to the TWTA and can be located at any site that is
convenient for the user for local control of the TWTA.
Prime power for the HPC-1200 is supplied by the TWTA via the interconnecting cable.
Refer to Section 1.3 for HPC-1200 specifications.
Refer to Chapter 2 for installation instructions.
