Single Thread System Installation High-Power TWTA Satellite Terminals
2–26 Rev.1
Table Chapter 2-4. Mating Connector for AC
Unit
Pin # 115V Operation 230V Operation
1 N/C 230 VAC
2 Neutral N/C
3 115 VAC 230 VAC
PE Ground Ground

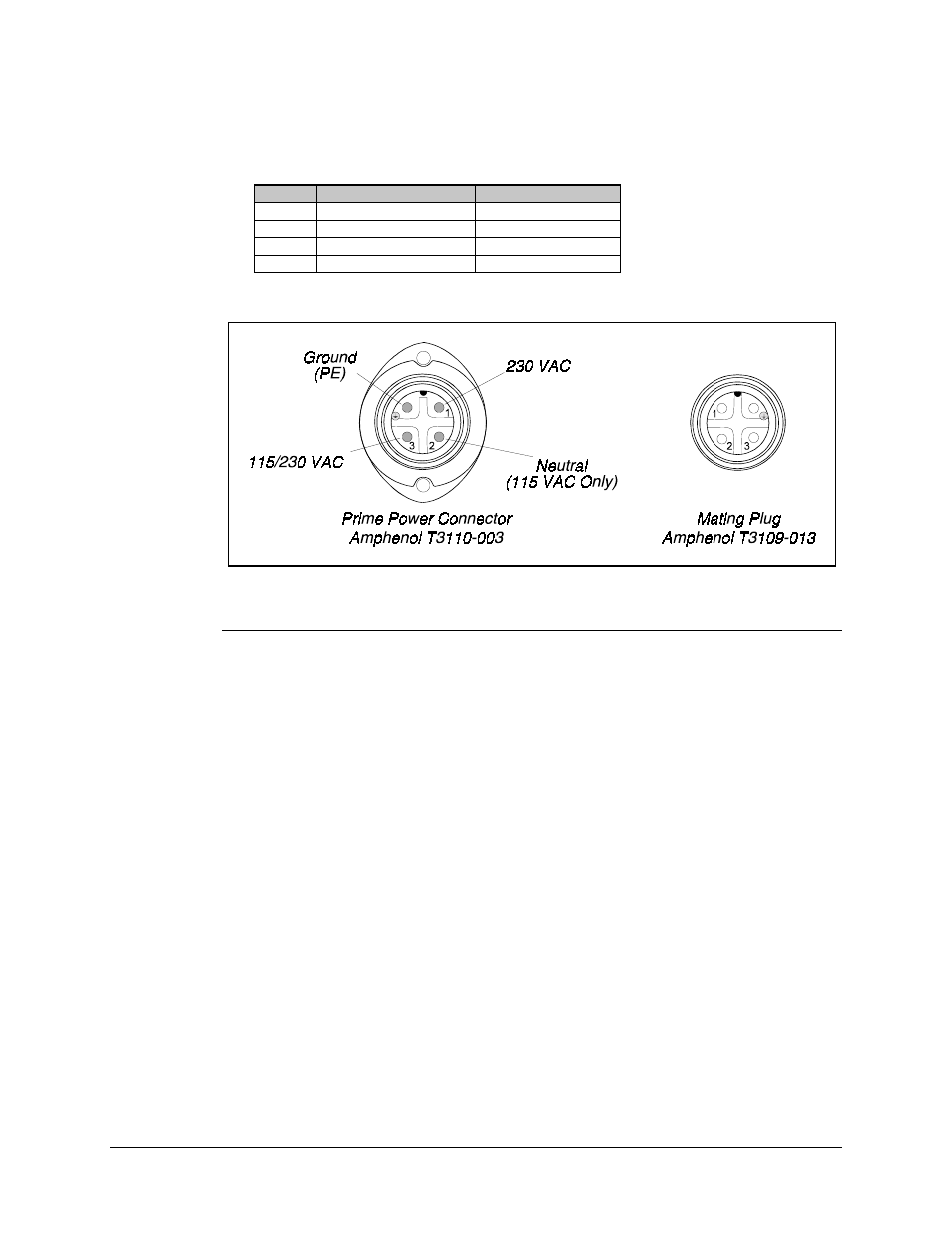

Figure Chapter 2-6. Single Phase AC Power Connections
2.3.4.3 RF TX Input (J3)
The RF TX input is a type N female connector that comes from the RFT. The input
impedance is 50
Ω
.
The input frequency is determined by the type of installation:
•
C-band (5845 to 6425 MHz)
•
Extended C-band (6725 to 7025 MHz)
•
Ku-band (14.0 to 14.5 GHz)
