Chapter 3

MVME2500-ECC Installation and Use (6806800N30F)

41

Controls, LEDs, and Connectors

3.1

Board Layout

The following figure shows the components and connectors on the MVME2500-ECC,
applicable to both standard and extended variants.

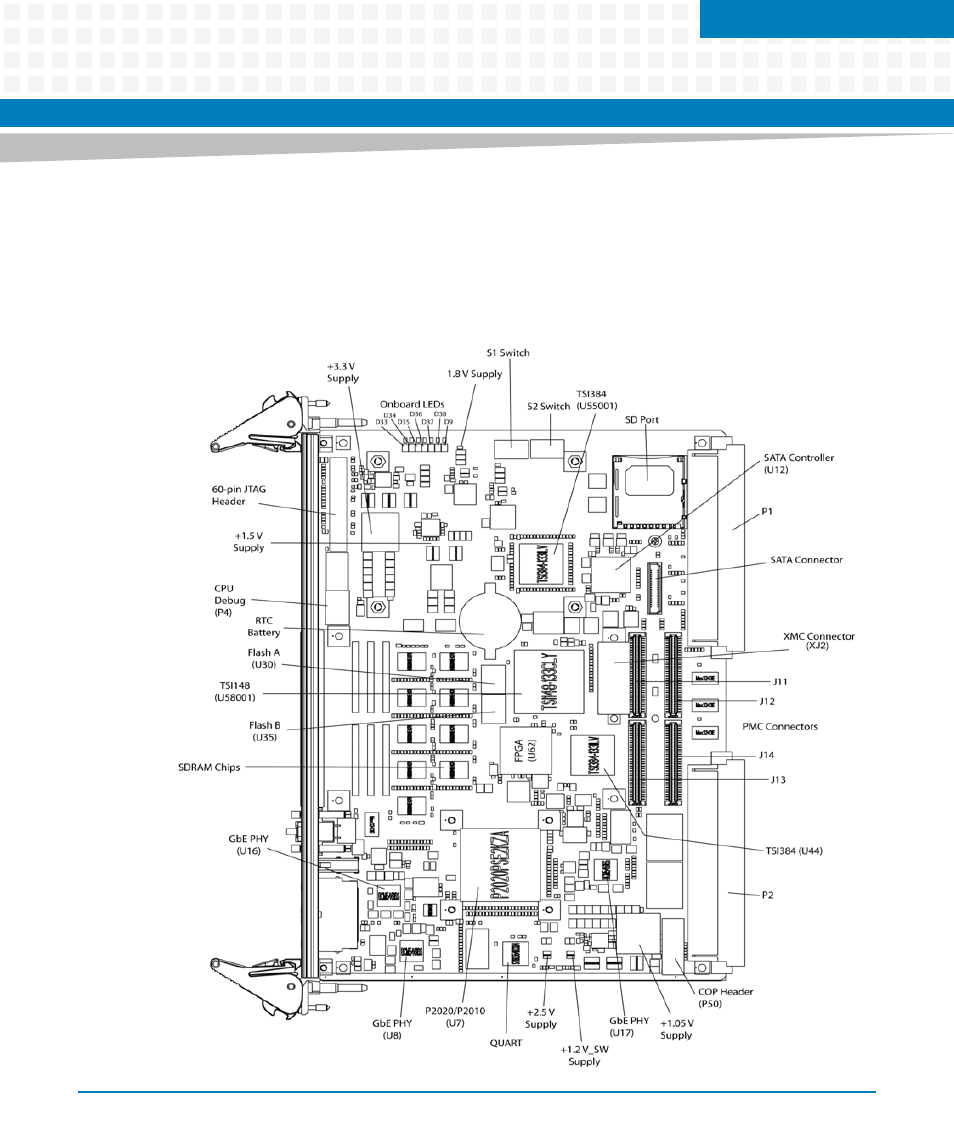

Figure 3-1

Component Layout
