Dell PowerConnect M6220 User Manual
Page 710

708
Configuring IP Multicast
Configuring the Candidate RP using the CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• PIM Commands
Adding a Candidate RP
Use the Add Candidate RP page to add PIM Candidate rendezvous points (RPs) for each IP multicast
group.
1. Open the Candidate RP Configuration page.
2. Click Add.
The
Add Candidate RP page displays.

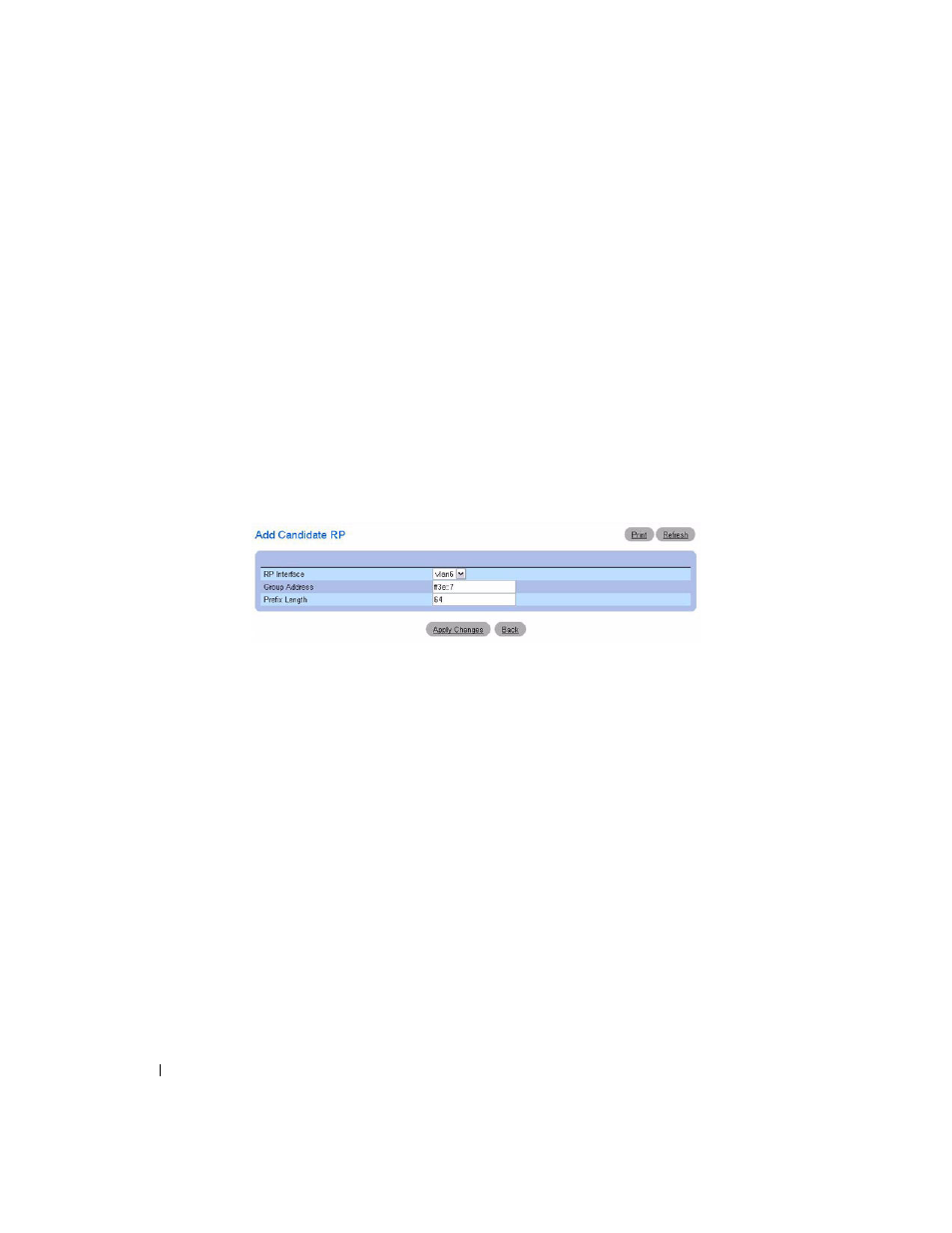

Figure 12-39. Add Candidate RP
3. Select the interface for which the Candidate RP is to be configured.
4. Enter the group address transmitted in Candidate-RP-Advertisements.
5. Enter the prefix length transmitted in Candidate-RP-Advertisements to fully identify the scope of the
group which the router supports if elected as a Rendezvous Point.
6. Click Apply Changes.
The new Candidate RP is added, and the device is updated.
