S10C100 User's Guide - Rev. A01 StorCase Technology, Inc.
Configuration 13
NOTE: Factory default is set to S.Port0.
S.Port0 = External Monitoring
S.Port1 = RAID Monitoring (Use this setting for accessing the RAID Module via the
UIM Serial Port)

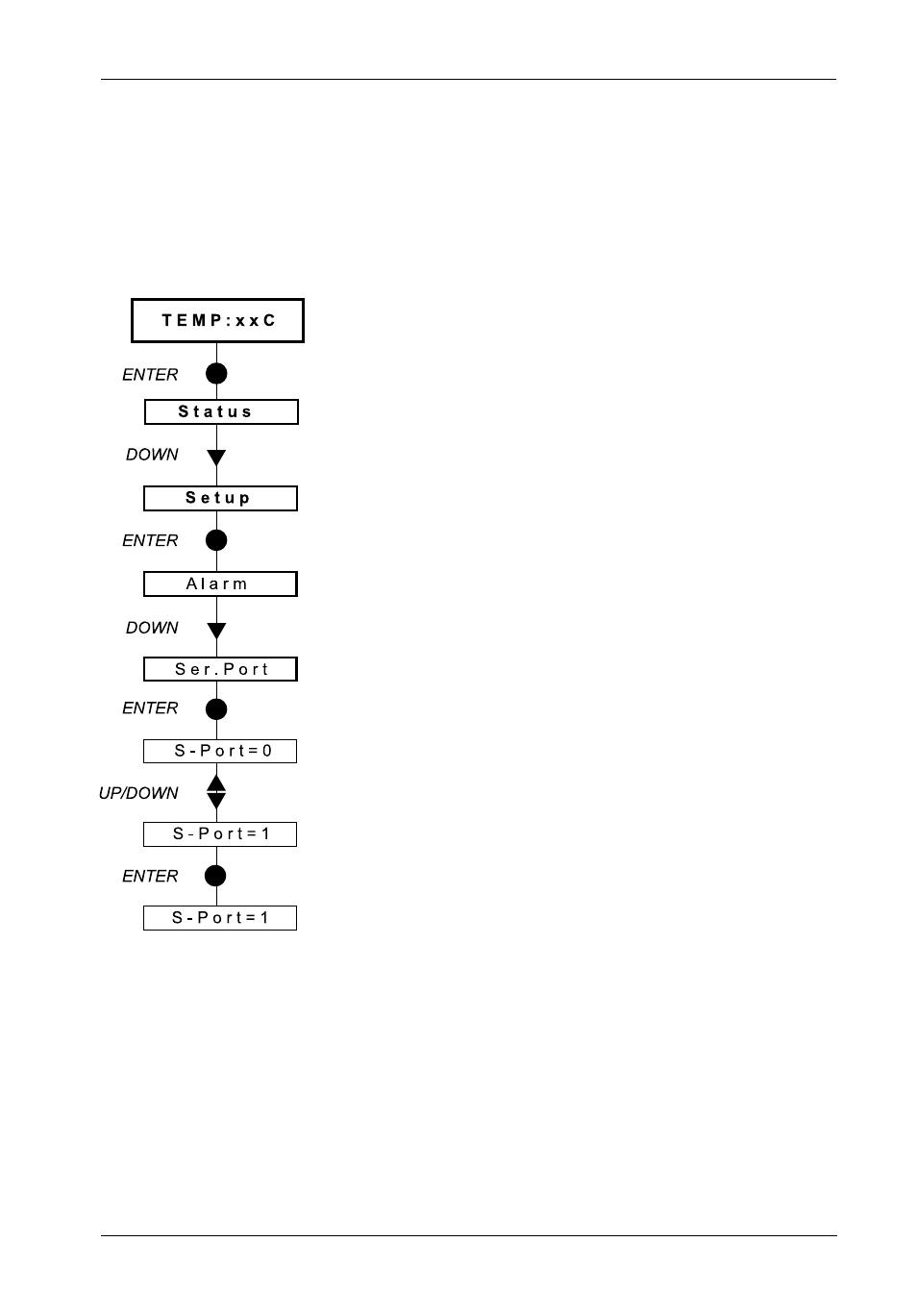

1. Press ENTER at the Default Display so that
display = Status.
2. Press DOWN until display = Setup.
3. Press ENTER until display = Alarm.
4. Press DOWN until display = Ser.Port
5. Press ENTER until display = S-Port0 (Factory
Default). This is the current serial port set-up.
6. Press UP or DOWN to change the serial port option
to S-Port1.
7. Press ENTER to accept the change. The RAID
Module can now be accessed via the UI Module
serial port.
To access the Disk Array Administrator Utility via the UI Module RS-232 serial port, the User
must first configure the Serial Port Set-Up in the UI Module (see below).
Refer to the InfoStation User's Guide (specifically, sections "InfoStation User Interface" and
"Serial Port Set-Up") for further information.
