116 Configuration
StorCase Technology, Inc. S10C100 User's Guide - Rev. A01
Displaying Disk Cache Status
This function allows the user to display the cache status of each disk drive. Any disk drives
with write-back cache enabled should be connected to a UPS in case of power loss. If the
drives are not on a UPS and power is lost during disk writes, the array will lose any data in
the disk's write-back cache.
To display disk cache status:
1. Select Utilities Menu from the System Menu and press Enter.
The Utilities Menu should now display (Figure 47).
2. Select Drive Utilities Menu and press Enter.
The Drive Utilities Menu should now display (Figure 76).
3. Select Display Drive Cache and press Enter.
The Select Drives screen should now display.
4. Select the desired drive to display and press Enter.
The Cache Status screen should now display (Figure 79).
5. Press Esc to return to the Drive Utilities Menu.

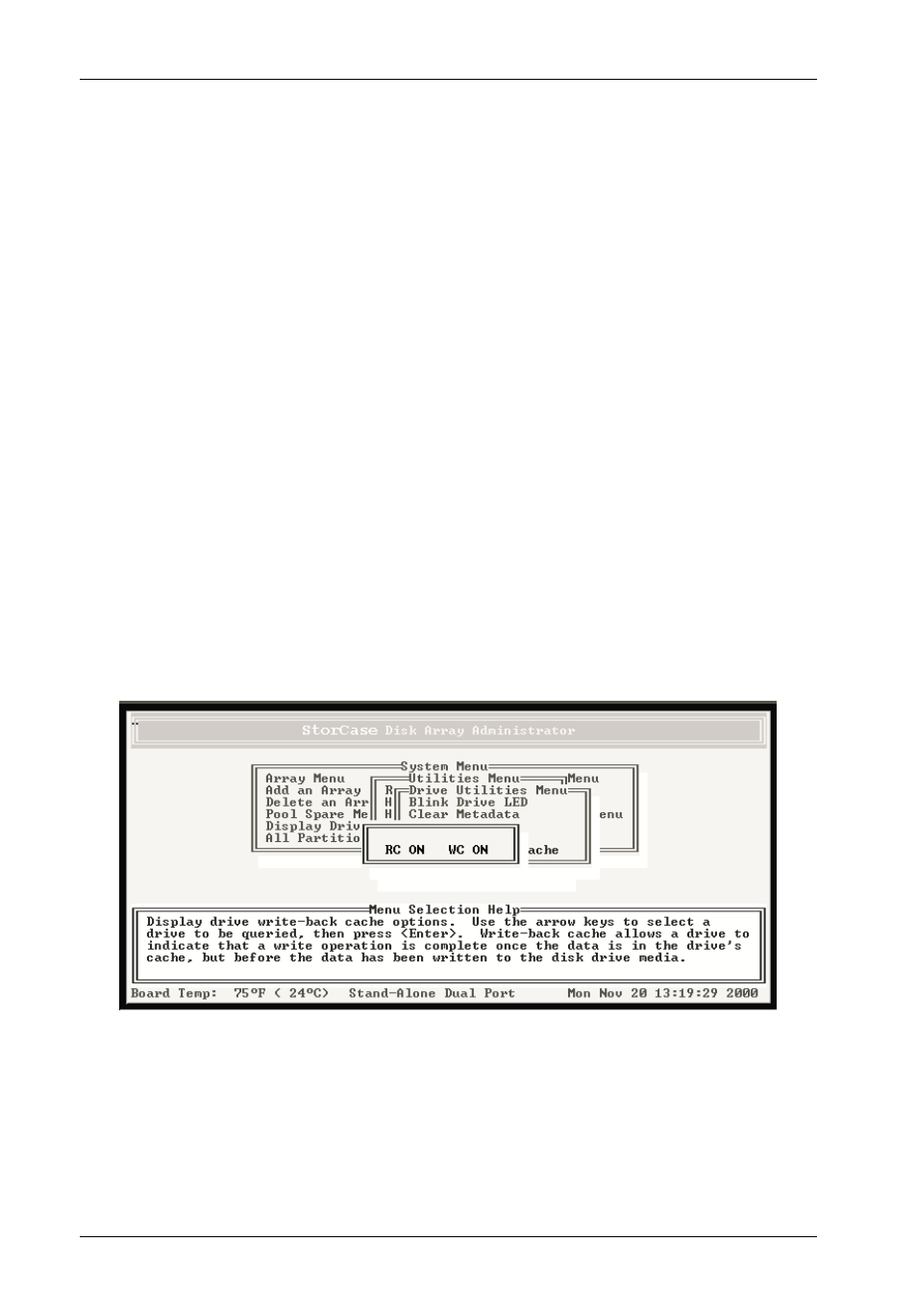

Figure 79: Cache Status Screen
