112 Configuration
StorCase Technology, Inc. S10C100 User's Guide - Rev. A01
To view drive status:
1. Select Array Menu from the System Menu and press Enter.
The Select Array screen will display, along with a list of existing arrays (Figure 16).
2. Select the desired array and press Enter.
The Array Menu should now display (Figure 17).
3. Select Drive Status and press Enter.
The Drive Status screen should now display, showing all drives that are members of
the array as well as those assigned as dedicated spares (Figure 75).

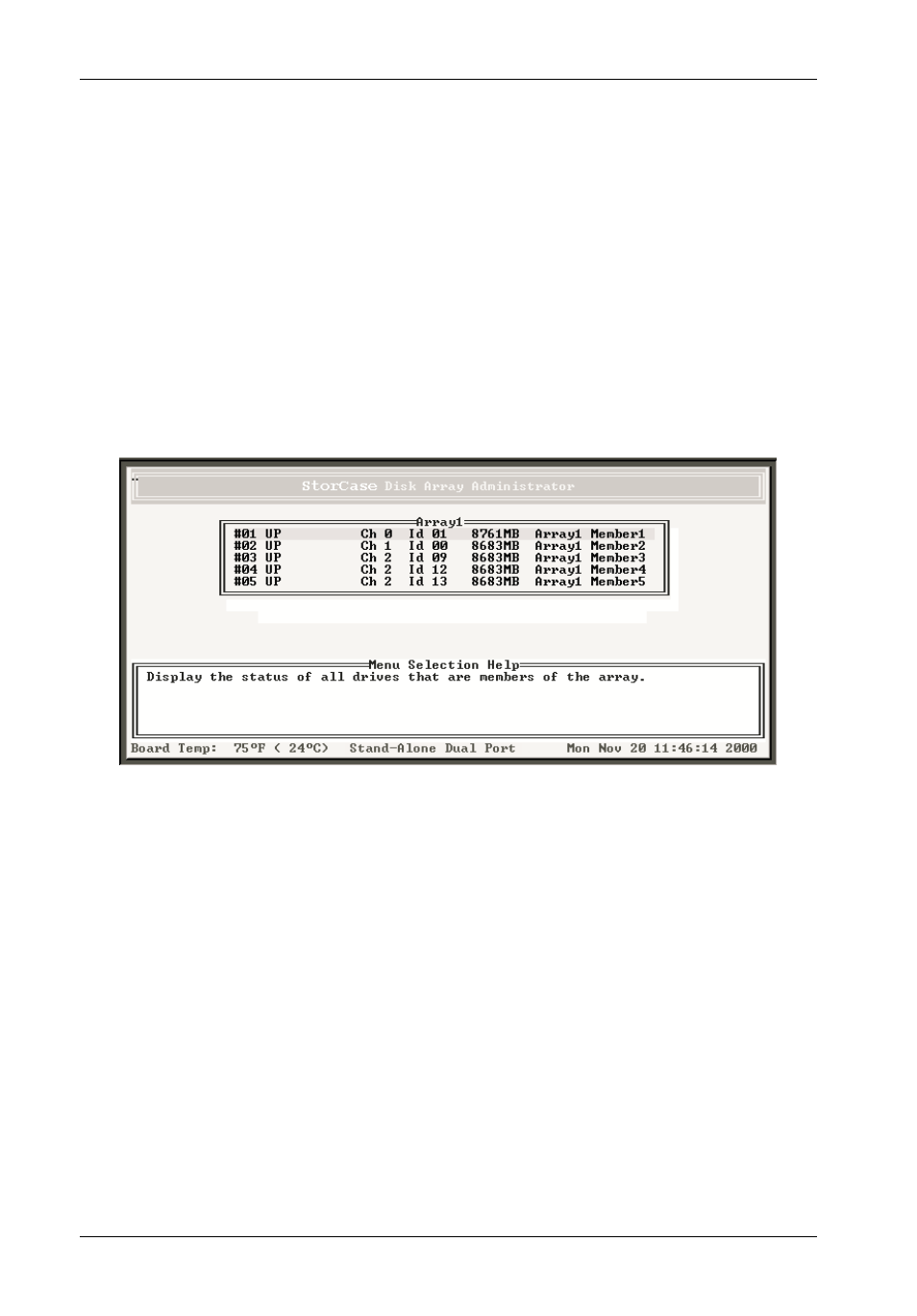

Figure 75: Drive Status Screen
Use the é or ê key to scroll through the drives. These are the drives that are currently
members of the array.
4. Press Esc to return to the Array Menu.
