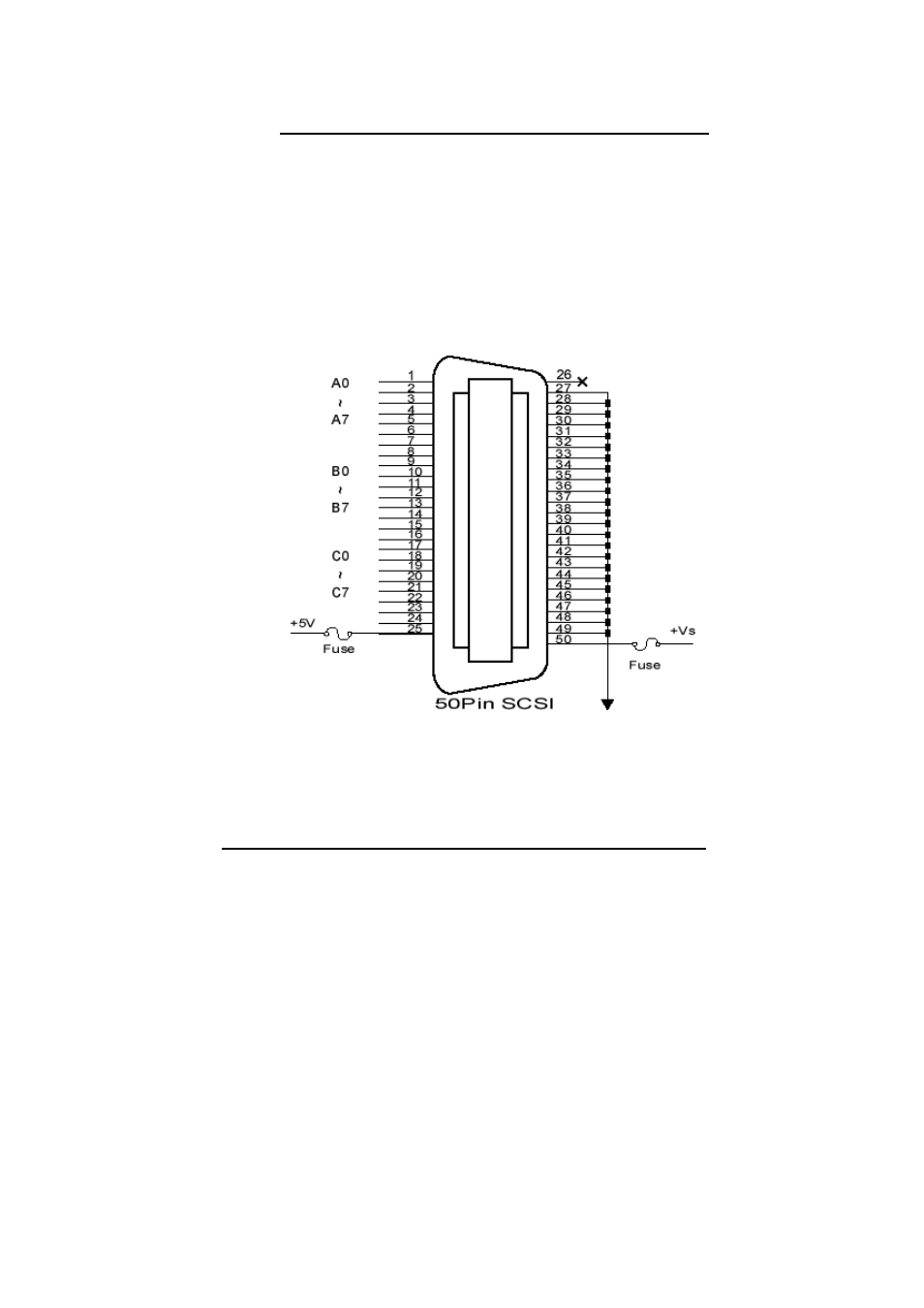

5.6.4 Pin Definitions of NuDAM-6058
Pin #
Signal Name
Description
1
DI0
Digital input channel 0
2
DI1
Digital input channel 1
3
DI2
Digital input channel 2
4
DI3
Digital input channel 3
5
6
Default*
Initial state setting
7
(Y) DATA+
RS-485 series signal, positive
8
(G) DATA-
RS-485 series signal, negative
9
(R) +VS
Power supply, +10V~+30V
10 (B)
GND
Ground
