2.2 Description of the control module

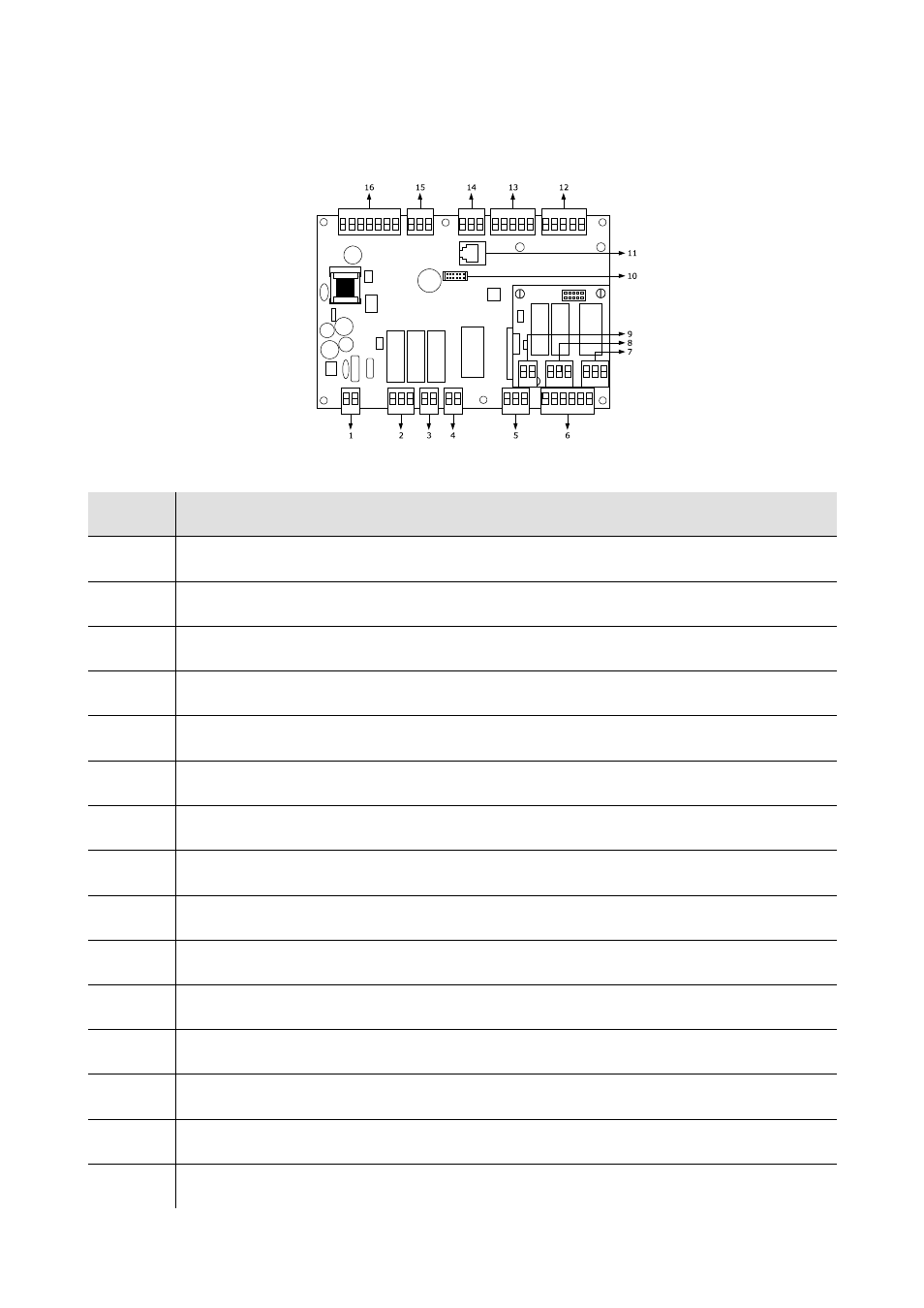

The following drawing illustrates the aspect of the Vcolor 818 control module.
The following table illustrates the meaning of the Vcolor 818 control module parts.
Part Meaning
1 power supply
2 digital outputs K3 and K4
3 digital output K2
4 digital output K1
5 digital output K5
6 digital inputs
7 digital output K6
8 digital outputs K7 and K8
9 reserved
10 reserved
11 reserved
12 analog inputs (cabinet probe, evaporator probe and condenser probe)
13 analog inputs (needle probe 1, needle probe 2 and needle probe 3)
14 reserved
15 PWM analogue output
