TOSHIBA
6 F 8 A 0 7 7 0
5A2 Cable Connections
Connect rtie terminaled cable wires
i : y
ihe terminal board as described below.
IMPORTANT
Connect the wires securely to the lerminal board. A loose connection may result in
unsatisfactory ilowmelcr perform a nee. Make sure the wires are securely connected,
(1) Remove the housing cover for the terminal board shown in Figure 3.1. The lerminal board
is located inside the converter as shown in Figure 3.2, Connect the crimped terminal of
each wire to the specified pin of the terminal board . Sec Figure 5,1 for the terminal board

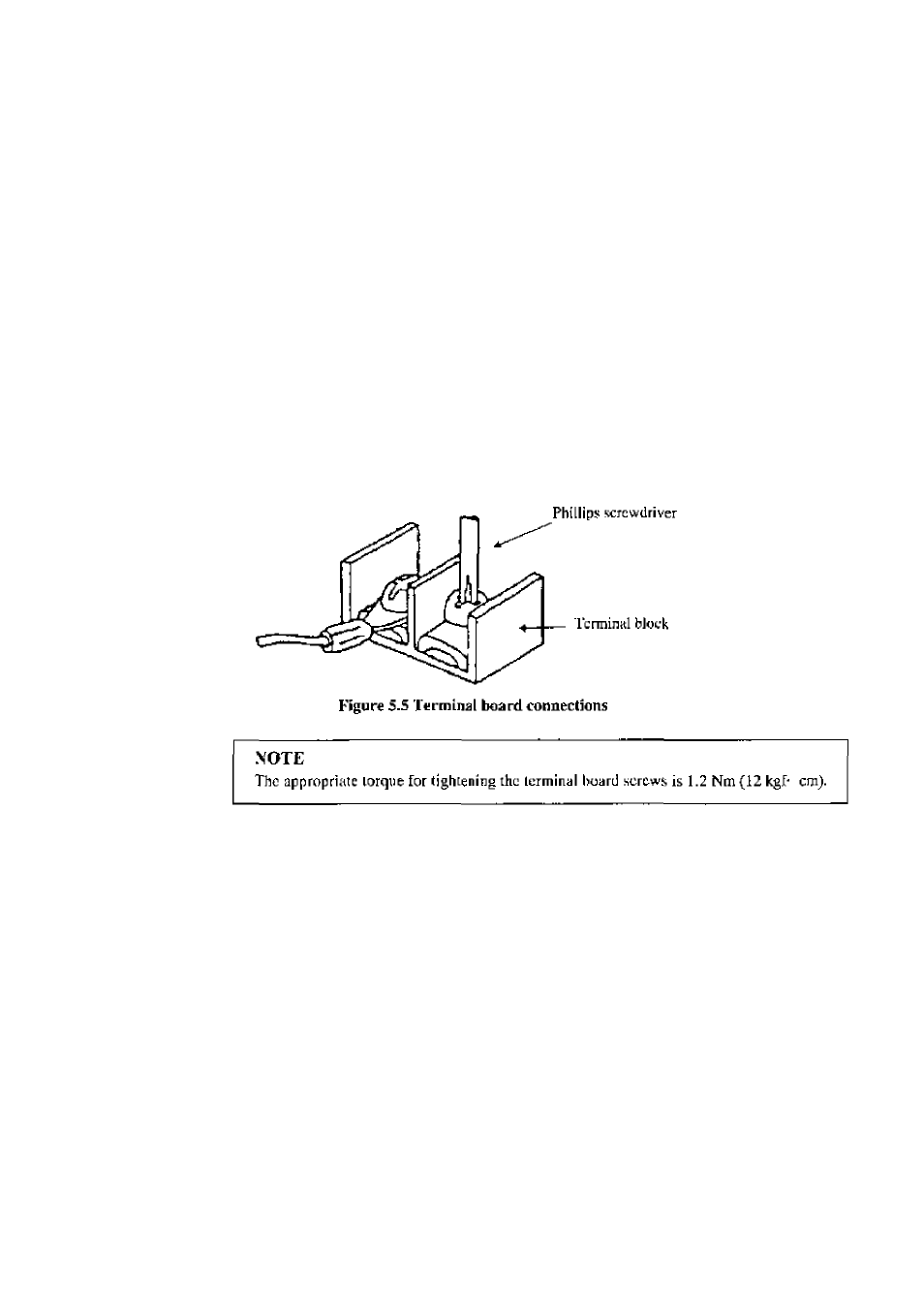

configuration. Tighten each crimped terminal to the terminal board with a screw using a
Phillips screw-driver asshow-n in Figure Loose connection may result in unsatisfactory
flowmeter performance. Make sure the wire is securely connected.
(2) After the terminal block connection, pull the cable a little so that the cable runs .straight
from the terminal block without unnecessary w-inding.
(3) Attach the terminal cover and screw the housing cover for the terminal block. To keep Ihe
housing seal, tigliten securely Ihe cover using a tool fitting with the groove on the cover.
-
3 1
-
