Figure 4.3 detector piping orientation, Figure 4.4 [nstallatioti position of the detector, Toshiba – Toshiba LF434 User Manual
Page 22
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
TOSHIBA
6 F 8 A 0 7 7 0
(2) Pipe Orientatir>n
The delector may
be
installed in hori/ontal, vertical or sloping pipe runs as shown in
Figure However, except forhorizonlal iiislallatiuii, Quid should flow from lower lo
upper directions- See Figure 4.3.

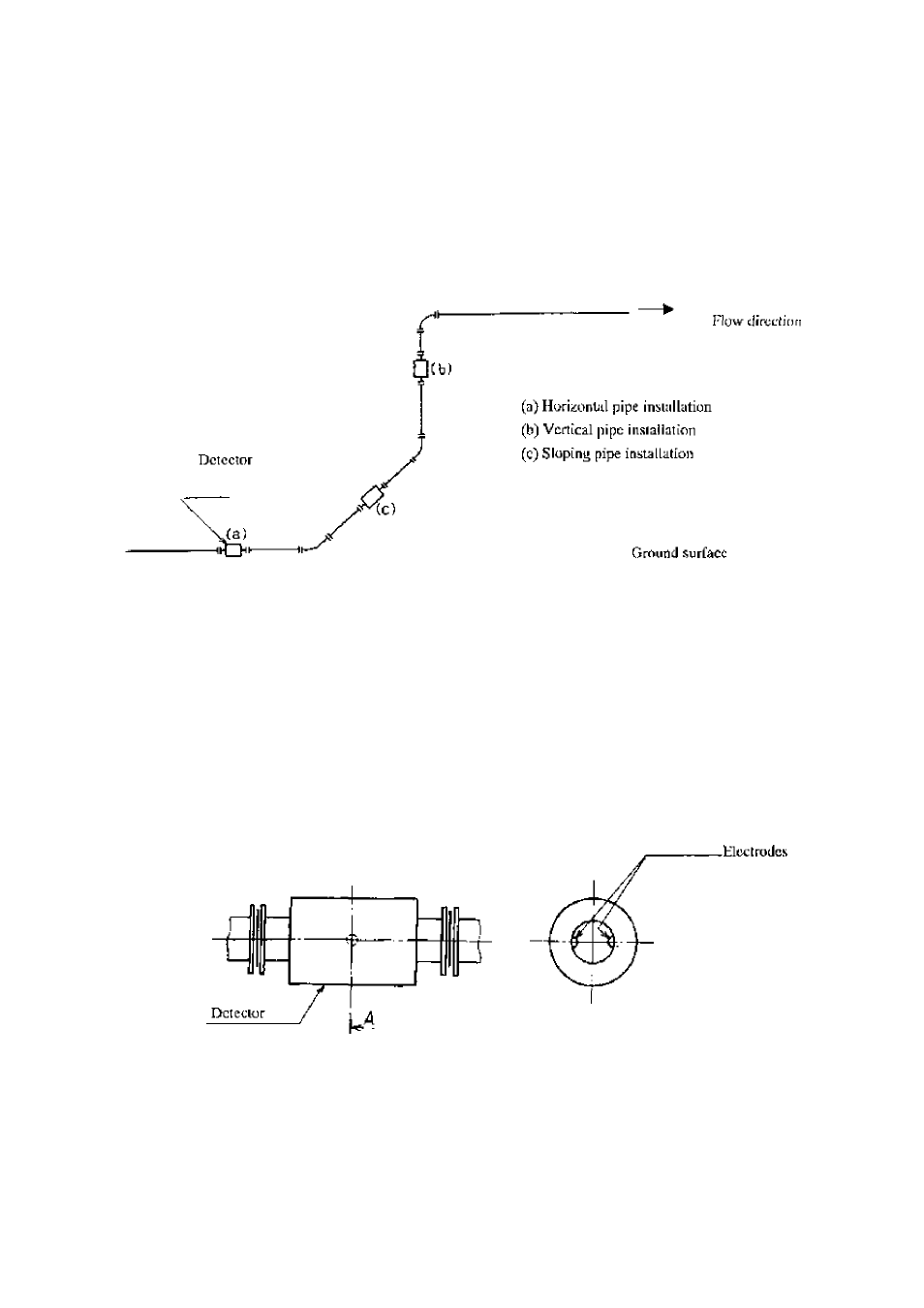

Figure 4.3 Detector Piping Orientation
I hc cJccirodcs should be posilioned horizonlaJly against the ground surface in any piping
installation. See Figure 4.4.
Cmss-scction A - A
Ground surface
Figure 4.4 [nstallatioti position of the detector
-
