BÜCHI Labortechnik AG Maintenance | 7
PrepChrom C­700 89/110

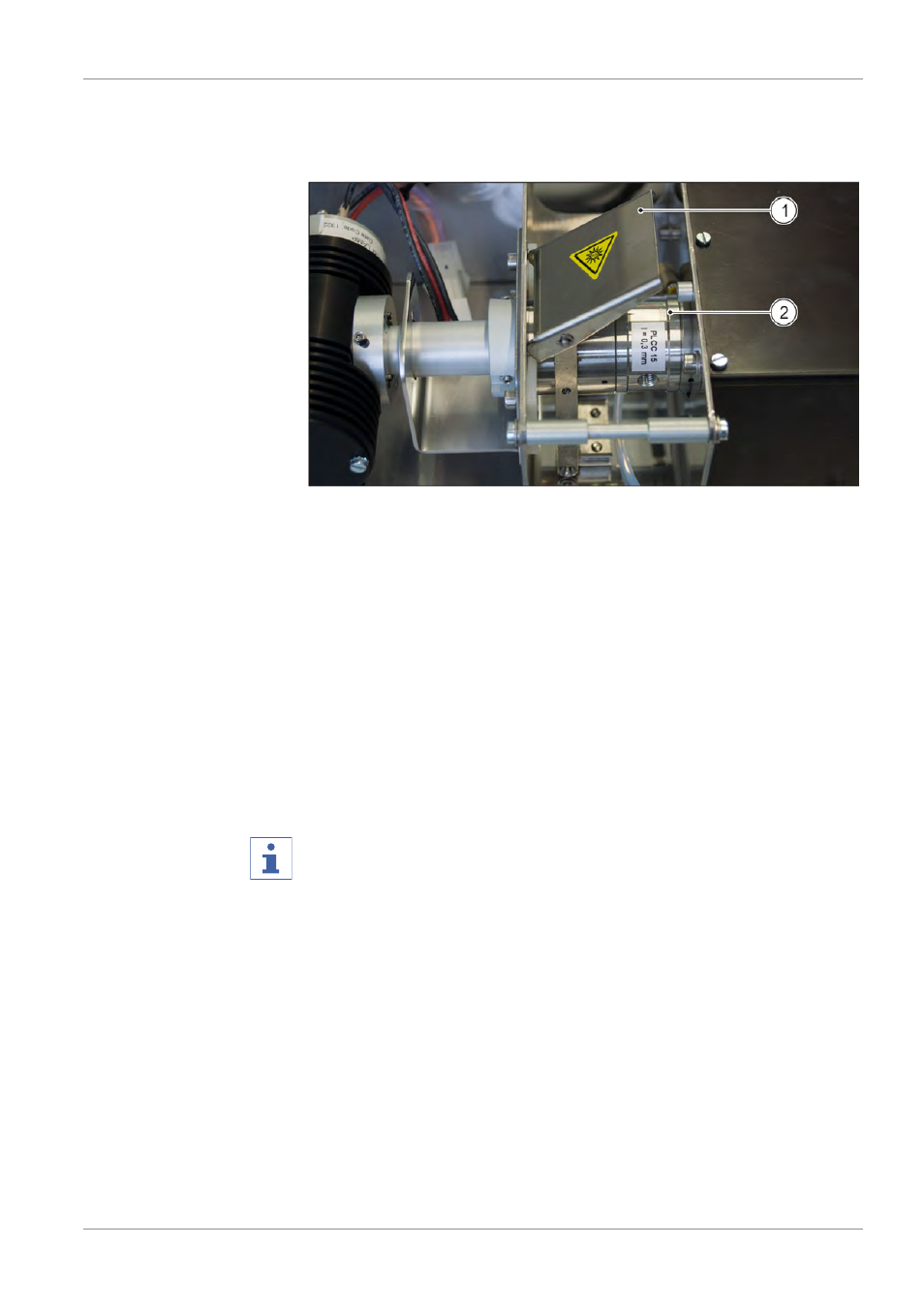

u Hold the flow cell (2) with one hand while lifting the lever (1) further up.
u Remove the flow cell.
u Flush the cell with pure solvent and rinse extensively.
u Reassemble the UV Detector module in reverse order to disassembly.
Follow­on tasks
u Purge the system and verify there is no baseline drift.
7.2.3 Check valve, cleaning
Preliminary tasks
u Purge the system with a suitable solvent (isopropanol).
u Air purge the system.
• 6.9 Air purge [ } page 85]
u 7.3.5.1 Check valve, removal [ } page 94]
Tasks
NOTE
Always clean all 4 check valves.
u Clean the check valves in a ultrasonic bath with methanol or acetone for
5 minutes.
Follow­on tasks
u 7.3.5.2 Check valve, installation [ } page 95]
