BÜCHI Labortechnik AG Installation | 5
PrepChrom C­700 43/110

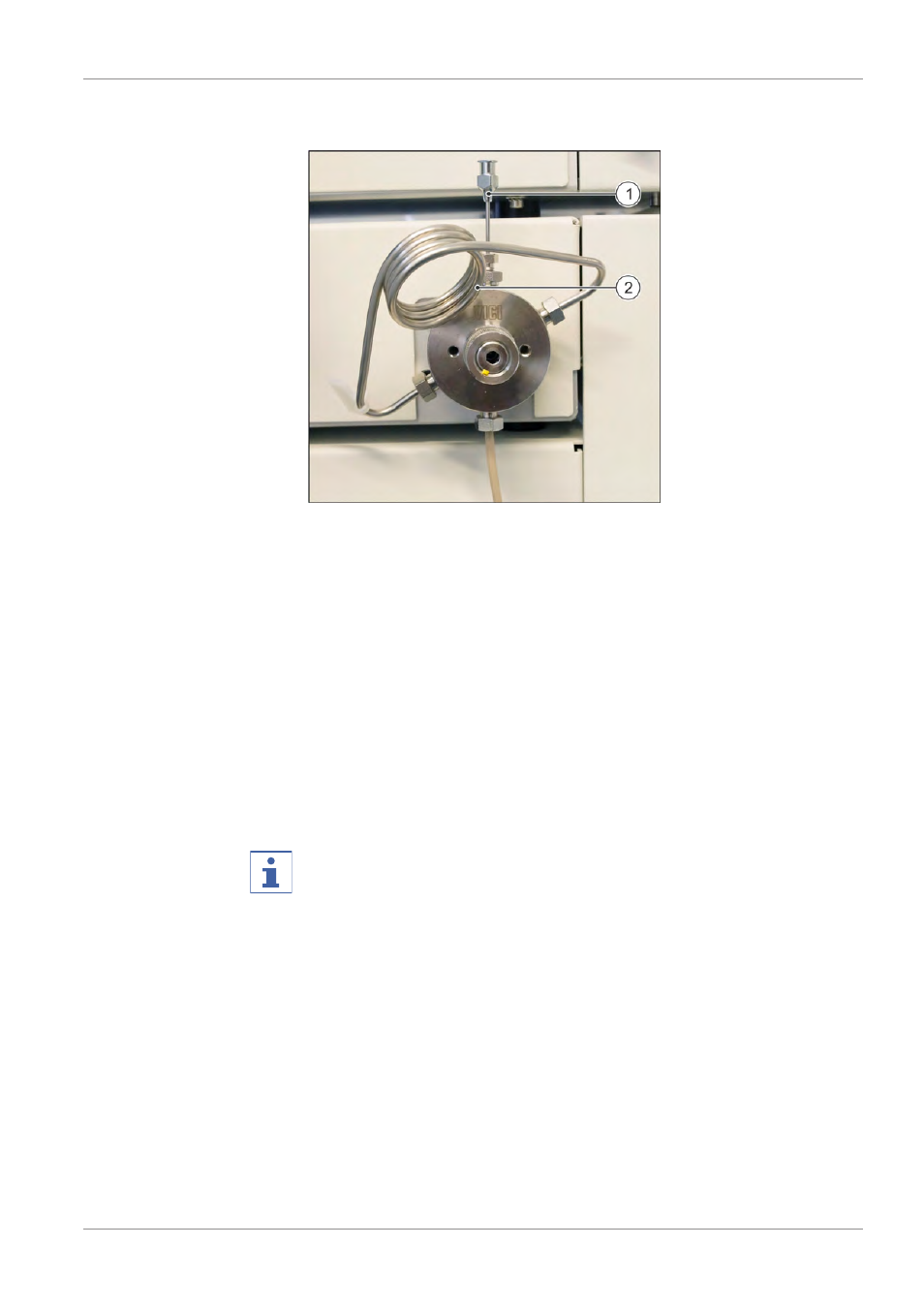

u Install the loop (2) between the port no 2 and 5.
• HAF560 Injection loop, 2 mL
5.2.3 Tubing Flash/prep column, installation
Tasks
u Install luer lock adapters (6) and (4).
• HAF450 Adapter luer lock male to 1/4"–28 male
• HAF630 Adapter 1/4"–28 female to luer male
u Install the tube (1) between the port no 3 of the 6­way electrical valve and
column inlet.
• HAF830 Tubing ETFE, 1.6 mm ID
u Install the tube (3) between the column outlet and inlet of the UV Detector
module. The long nut of the tube must be connected with the column.
• HAF860 Tubing, ETFE, 1.6 mm ID, plastic connectors
u Install the tube (2) between the fraction collector inlet to the UV Detector
module outlet.
NOTE
The tube is already pre­installed on the inlet in the rear of the fraction collector
module.
u Install the tube (5) between the port no 6 of the 6­way electrical valve and
waste bottle.
• HAF480 Tubing ETFE, valve port 6 to waste, 100 cm, 1.6 mm ID
u Insert the waste tube from the rear of the fraction collector into the waste
bottle.
