BÜCHI Labortechnik AG Description of function | 4
PrepChrom C­700 33/110
4.4.7 Collection
4.4.7.1 Collect all

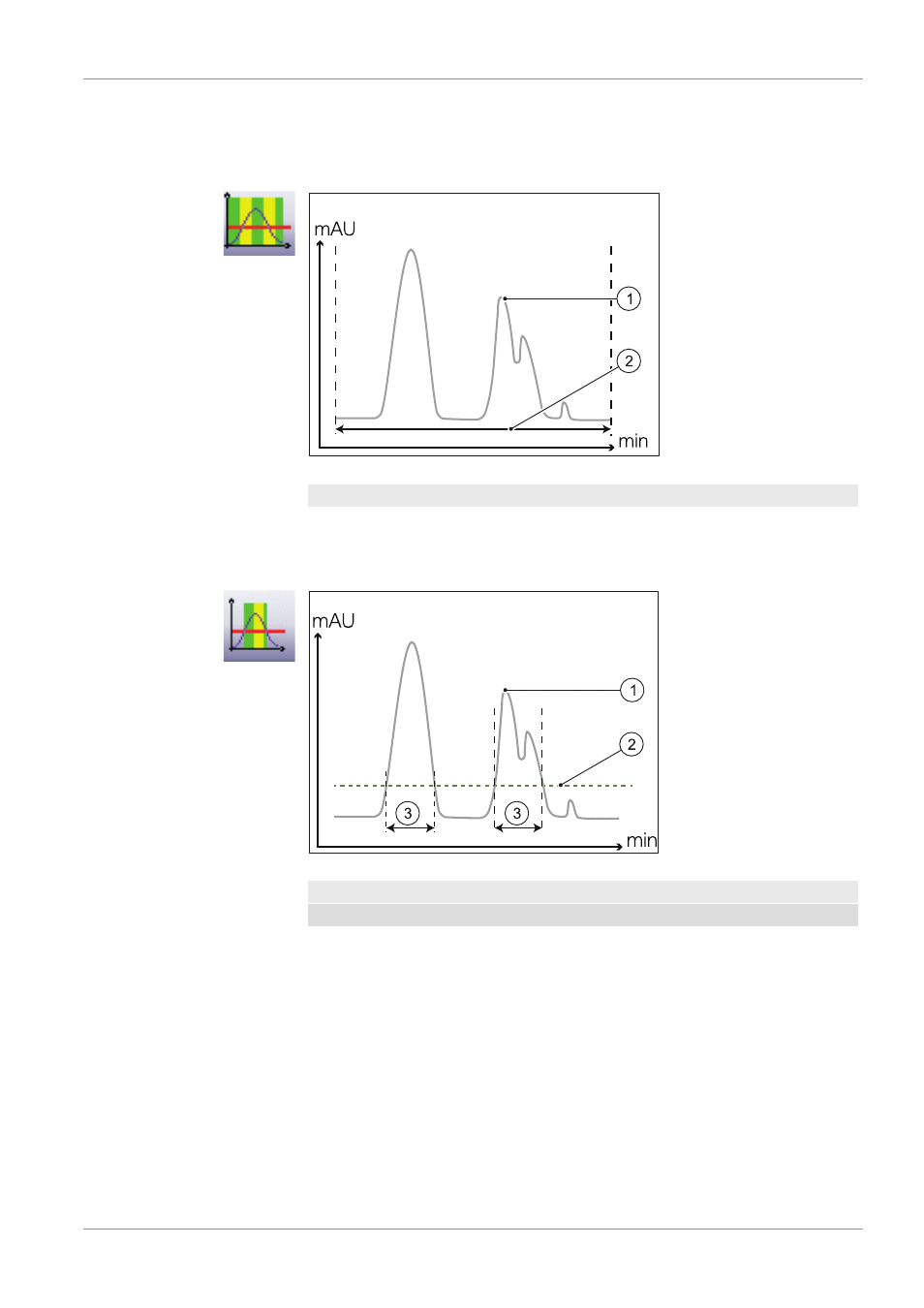

Fig. 12: Collect all
1 Chromatogram/peak 2 Collection time
During a run a continuous collection into glass tubes will be performed.
4.4.7.2 Threshold collection
Fig. 13: Threshold collection
1 Chromatogram 2 Threshold
3 Collection time
During a run a collection above the threshold (2) will be performed. Elution be­
low the threshold is directed to the waste bottle. The collection time (3) depends
on the threshold adjustment, glass tube and peak size. The fraction collector
can split a peak to one or more glass tubes, depending of the tube volume.
