5 | Installation
BÜCHI Labortechnik AG
40/110
PrepChrom C700
u

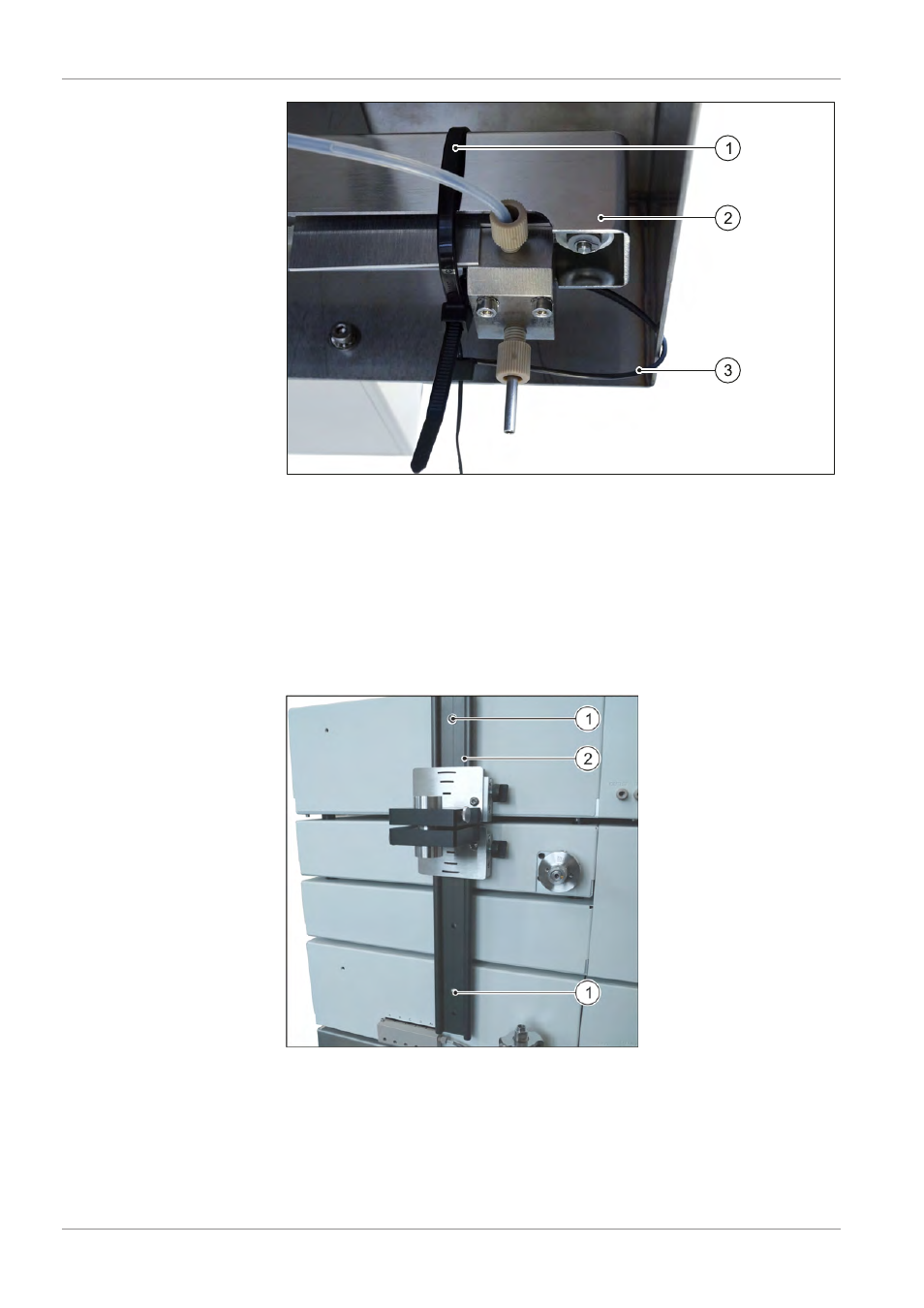

Position the column holder (2) on the left side and secure it with 2 hex
screws (1), washers and spacers.
• The spacer is placed between the column holder and the device. The
spacer is placed between the column holder and the device.
• Tighten the screws using the Allen wrench 3 mm.
u
Repeat the previous step for the 2
nd
column holder on the right side.
u
Place the stylus holder on a suitable place next to the touch screen.
• Make sure that the extensible cord gives a suitable length to reach all ar
eas of the touch screen.
