5 | Installation BÜCHI Labortechnik AG
62/110 PrepChrom C­700

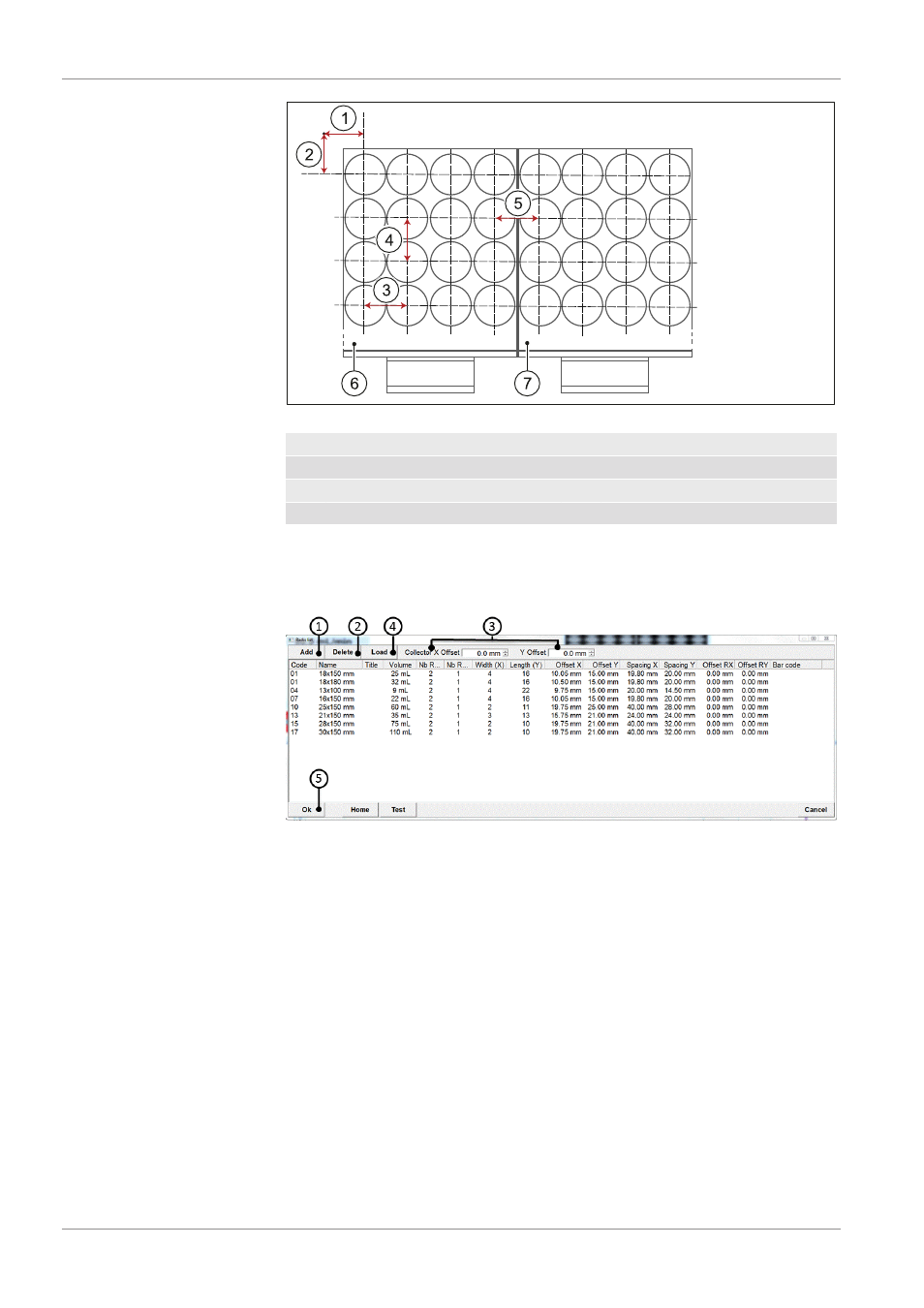

Fig. 17: Fraction collector offset adjustment
1 Offset X=1 2 Offset Y=2
3 Spacing X=3 4 Spacing Y=4
5 Offset RX=5–3 6 Rack 1
7 Rack 2
u Press Load (4) to save the data in the fraction collector
u Press OK (5) to finish the setup.
Note: Offset RY = 0 because the number of racks on the Y axis is 1.
5.7.6 Needle, offset
Note: the offset of the needle is preset and should only be changed in case of a
drift.
u Press Setup > Racks
u Adjust Collector X offset and Collector Y offset (1).
u Click on Load (2) and wait for the message Data exported.
u All racks offsets in the list are now configured. Select one from the list and
click on Home (3) then Test (4). The needle of the collector goes to the 1
st
tube of the rack.
