• When set to a higher value, the connection will be terminated after inactivity for the specified period of
time, in seconds.
The timeout feature is useful when several indicators want to print to the same printer.
9.1.4 Connecting to a Remote Host - Stream weight data to an Ethernet Remote Display
1. Connect the 880 and Remote Display either directly
to each other (each with a Ethernet Remote Display
IP: 192.168.0.10
TCP Port: 10001 880 Client
IP: 192.168.0.110
Remote IP: 192.168.0.10
Remote Port: 10001
Network
Switch
Static IP on the same
subnet), or through an Infrastructure Network.
2. Configure the Client Remote Server IP and port to
the IP address and TCP port of the remote display.
3. Configure the trigger setting for the Client to either
Stream Industrial (STRIND), or Stream Legal-for-
Trade (STRLFT).
4. To prevent data overrun on the receiving device (the
880 will stream data at up to 50 frames per second),
it is recommended the Client’s End-of-Line Delay be
set to 1 (10 frames per second) or 2 (5 frames per
second), or higher. This is also a good way to help
reduce network traffic if speed is not a concern. If data at the remote display appears to lag, or get behind
the data on the indicator, the End-of-Line Delay may need to be increased even more.
5. Shortly after returning to weigh mode, the 880 will start to stream data to the Ethernet Client port. The 880
will then attempt to make the connection. The data will be sent to the Remote Host once connected. This
may take several seconds.
Note
There may be several seconds worth of buffered data sent at the moment of connection.
9.1.5 Connecting to a Remote Host, Stream/Demand Data to Remote Ethernet-to-RS-232 Device Server
1. Connect the 880 and device
server either directly to Ethernet to RS-232
Device Server
IP: 192.168.0.30
TCP Port: 10001 880 Client
IP: 192.168.0.110
Remote IP: 192.168.0.30
Remote Port: 10001
Network
Switch
Serial Device
such as a Printer,
Remote Display,
or Serial Scale in
an Indicator
RS-232

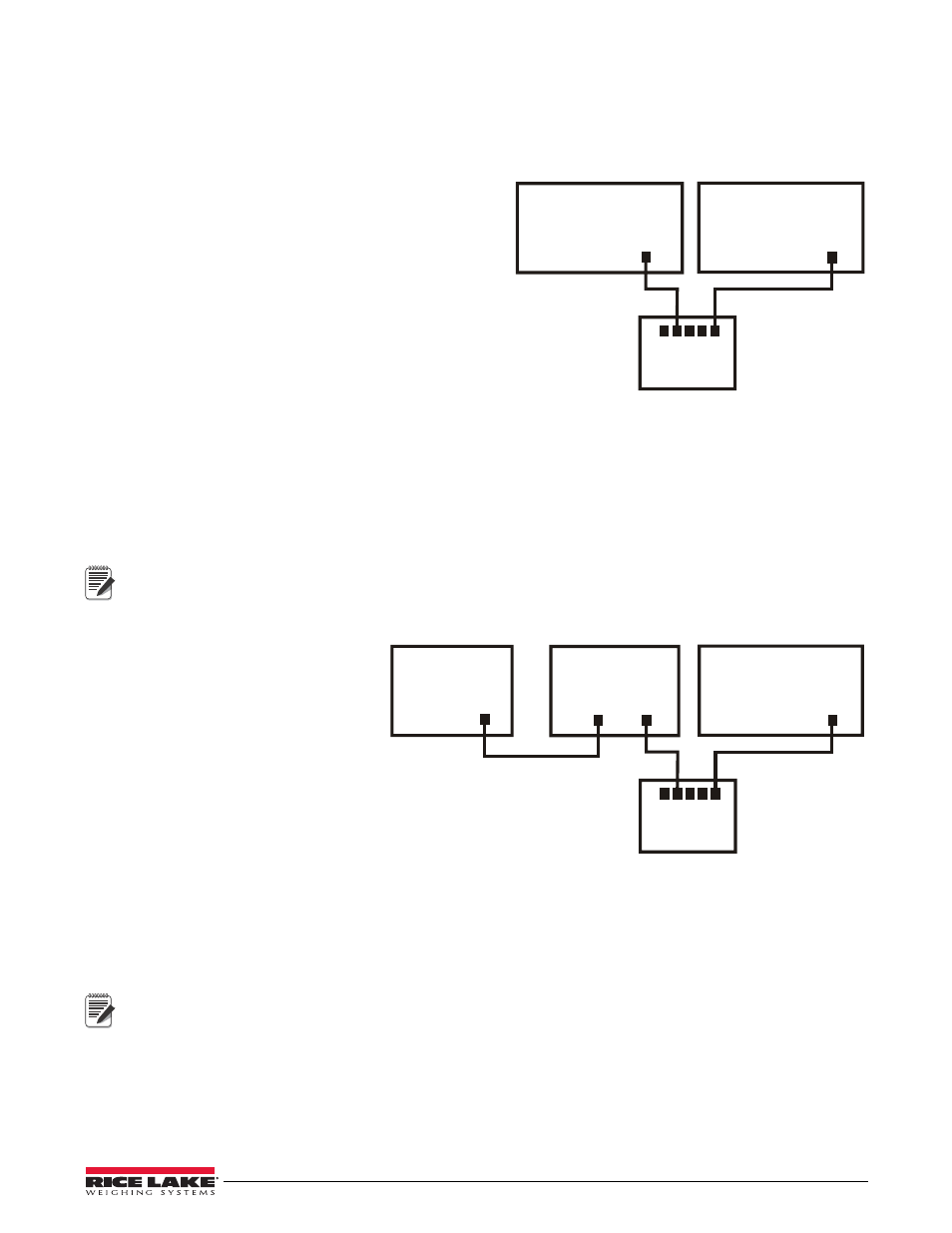

Figure 9-4. Stream or Demand Data to a Remote Ethernet
to RS232 Device Server
each other
(each with a static IP on the same
subnet), or through an
infrastructure network.
2. Configure the Client Remote
Server IP and port to the IP
address and TCP port of the
device server.
3. Configure the trigger setting for
the client to either command
mode (COMAND), stream
industrial (STRIND), or stream
Legal-for-Trade (STRLFT),
depending on the application.
4. Connect the serial output of the device server to the serial device set to send or receive data through the
Ethernet connection.
Note
In this configuration, the
880
has to initiate the connection
