Backplate
Power Supply Board
Cable, Power
to CPU
CPU Board
Screws connecting power
supply board to backplate
Screws connecting CPU
board to backplate
Installation 21

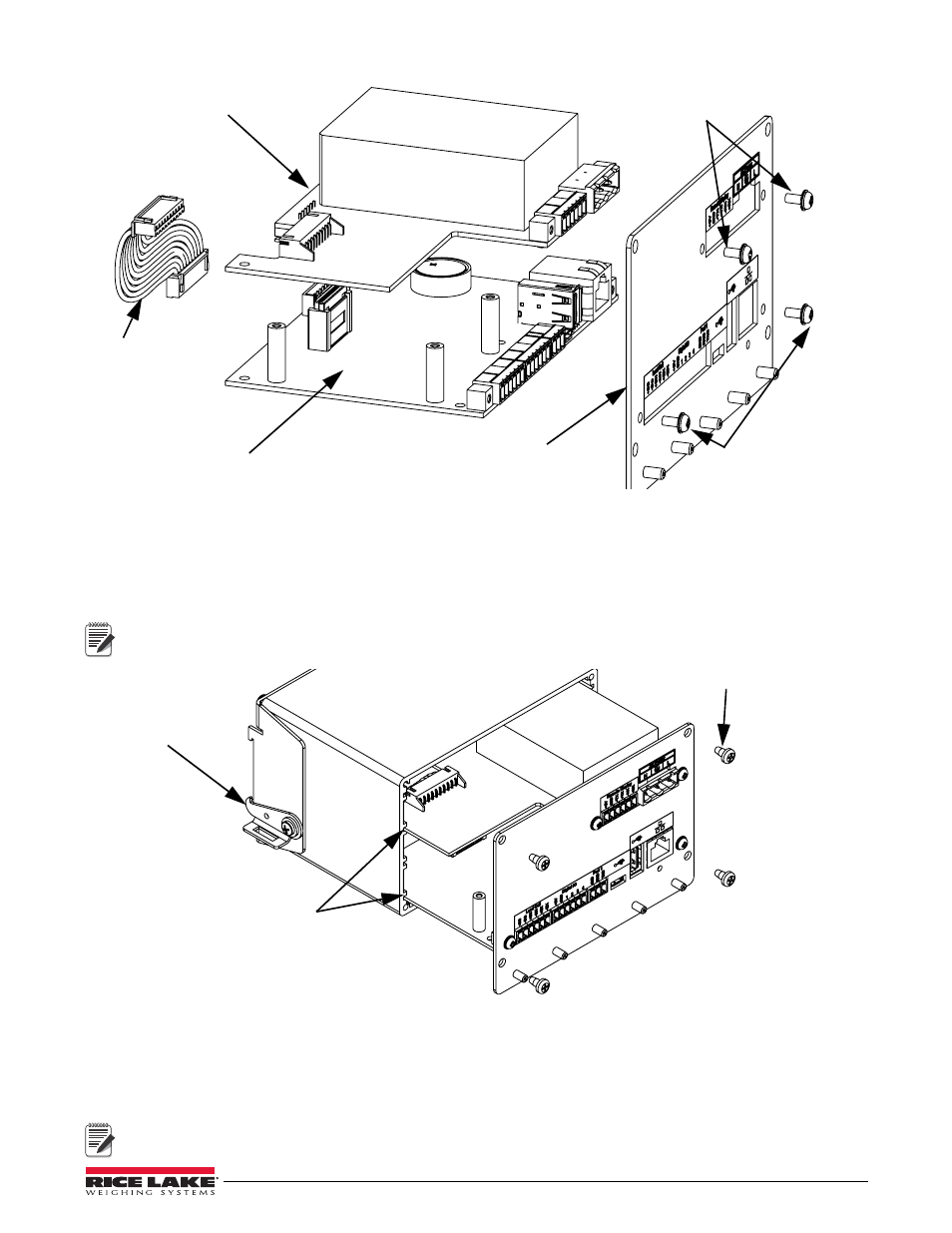

Figure 2-14. Boards Removed from Enclosure
7. Place the new board in position and secure using the existing screws.
8. Connect cable to boards.
9. Slide backplate with boards into enclosure, ensure that each board is seated correctly in the grooves of the
enclosure.
Ensure boards are
seated properly in the
grooves of the
enclosure.
Corner screws
DIN Rail Clip
Note
Ensure the enclosure is in the upright position, otherwise the connector for the display will not align with the
front cutout. Enclosure brackets should be at the bottom.
Figure 2-15. Boards Installed in Controller Assembly Enclosure
10. Secure backplate to enclosure using the four existing corner screws.
11. Reinstall controller assembly (see Section 2.2 steps 4-6).
12. Reconnect all connectors to the backplate. See Figure 2-12 for connector locations.
Note
If option card is installed, see the option card addendum for proper installation of the module.
