Installation 23

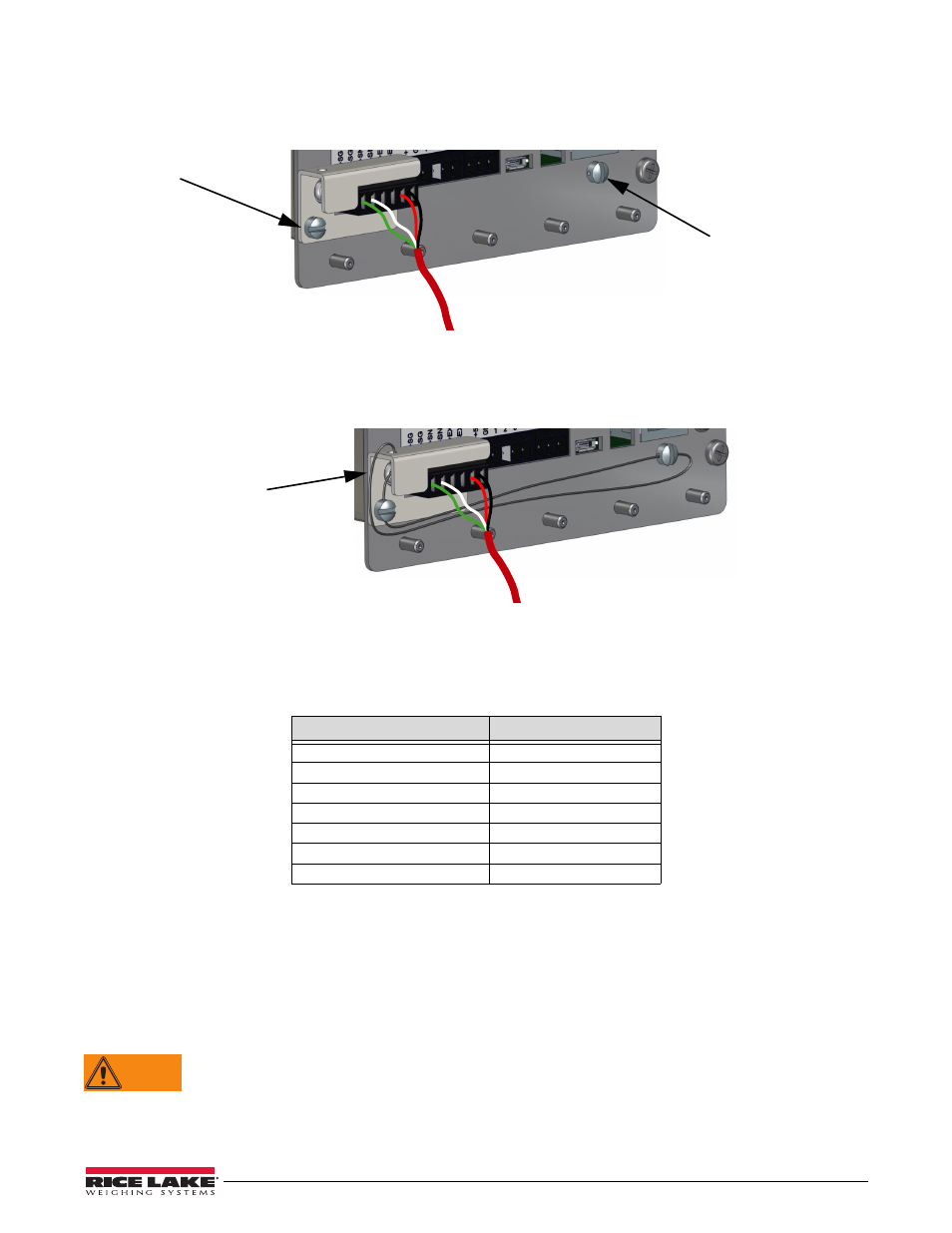

4. Insert the other screw into the hole for the setup switch access.
Fillister Head Screw
Fillister Head Screw
5. Install the wire by threading through the two fillister head screws and the hole in the top of the load cell
sealing clip. Seal the wire to secure.
Sealing Wire
Figure 2-18. Install Sealing Wire
2.13 Option Cards
Connector J8 is reserved for option cards. Table 2-5 lists the options available for the 880 Indicator. Each kit
includes instructions for installing and setting up the option.
Table 2-5. Available Option Cards
Option Addendum Part Number
Analog Output Card 131601
Relay Board 131602
EtherNet/IP 156554
DeviceNet 156558
Profibus DP 156556
Modbus TCP 156557
ProfiNet 156555
2.14 Battery Replacement
When battery voltage gets low, the indicator display shows
low bat
. Replace the battery when this warning is
displayed. The battery should last about seven years.
• Use the Revolution configuration utility or EDP commands (see Section 6.1 on page 65) to store a copy of the
indicator configuration on a PC before attempting battery replacement. If any data is lost, the indicator
configuration can be restored from the PC.
WARNING
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of unused batteries according to the manufacturer’s instructions.
The battery should be considered bad and discarded at 2.9V.
