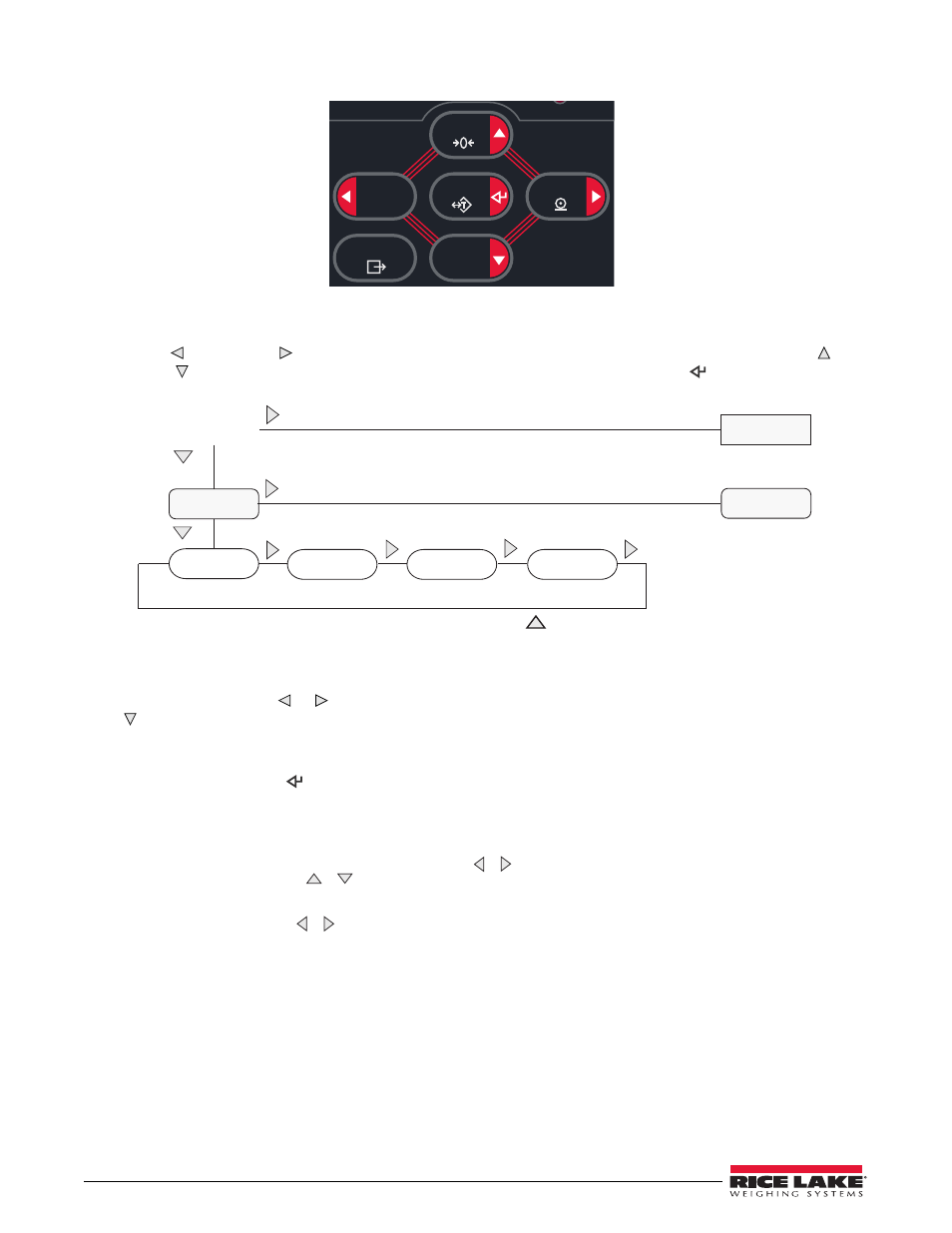

Figure 3-3. Five-Key Keypad Functions in Setup Mode
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 3-3).
The
UNITS
( ) and
PRINT
( ) keys scroll left and right (horizontally) on the same menu level;
ZERO
( ) and
GROSS/NET
( ) move up and down (vertically) to different menu levels. The
TARE
key ( ) serves as an Enter key
for selecting parameter values within the menus.
Level 1
Parameter
Current value
Level 2
Parameter
Value Value Value
Level 1
Parameter
Level 2
Parameter
When moving through values below the first menu level, press to return to the level
above.
Figure 3-4. Setup Mode Menu Navigation
To select a parameter, press or to scroll left or right until the desired menu group appears on the display, then
press to move down to the sub-menu or parameter to be edited. When moving through the menu parameters, the
current selected value appears first on the display.
To change a parameter value, scroll left or right to view the values for that parameter. When the desired value
appears on the display, press to select the value and move back up one level. To edit numerical values, use the
navigation keys to select the digit and to increment or decrement the value.
0 0 0 0 0 0
When editing numeric values, press or to change the selected digit.
Press or to increment or decrement the value of the selected digit.
After the number desired is displayed, press ENTER. The decimal point
will begin flashing if a decimal value is allowed. To move the decimal,
use or to move the decimal position. Press ENTER when done.
Figure 3-5. Editing Procedure for Numeric Values
