Rockwell Automation Publication D2-3518-3 - May 2013 63
Chapter 8

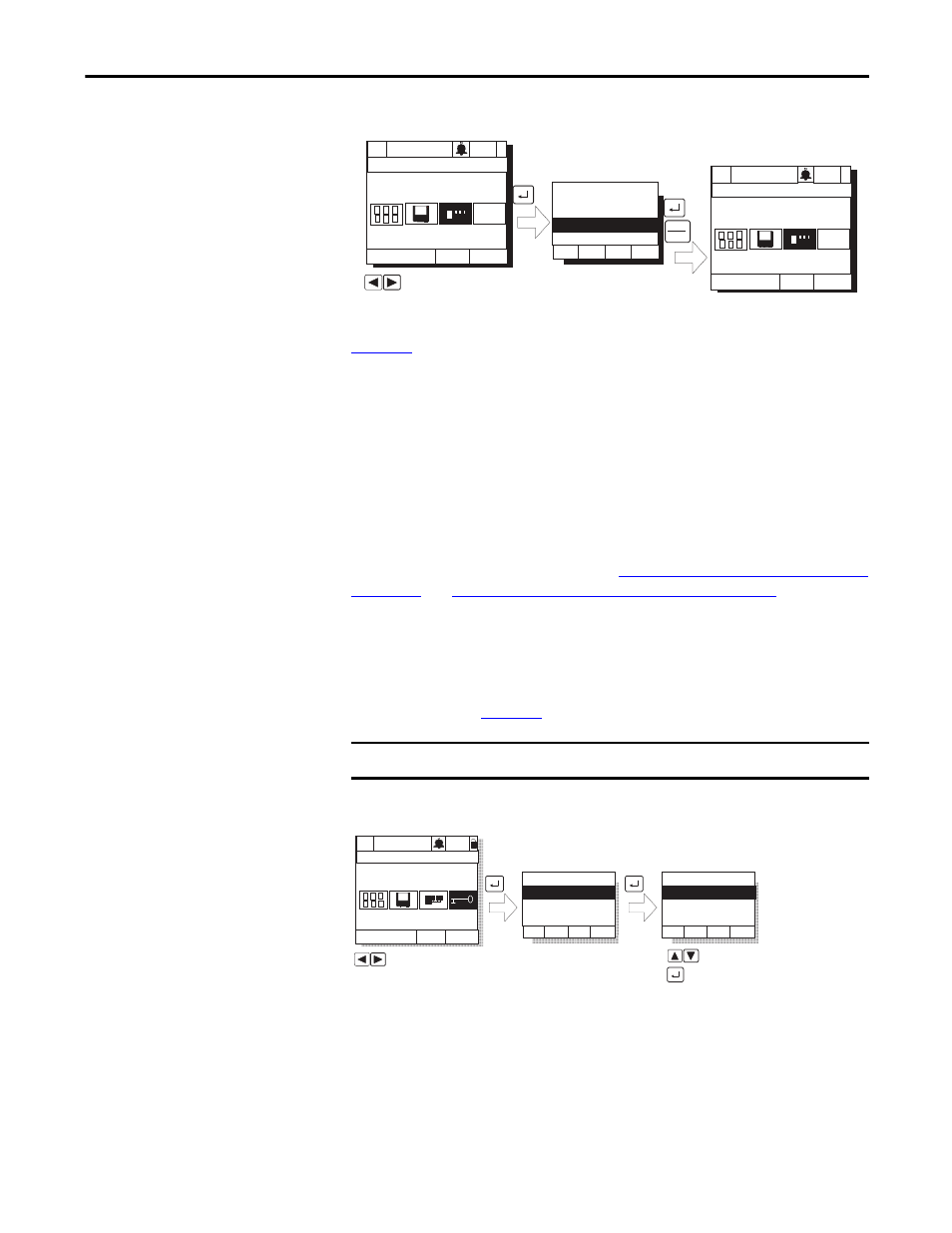

Figure 27 - Selecting the Active Rectifier
To switch back to viewing inverter information, use the process described by
Figure 27 , but select the LiquiFlo 2.0 device.
Selecting the Parameter
Access Level The LiquiFlo 2.0 AC drive provides two levels of access to the parameters:
• Basic (0)
• Advanced (1)
The Advanced level allows access to all of the parameters.
The Basic level allows access to a subset of the Standard level and contains only
the most commonly used parameters. See
Inverter Parameters Basic Access Level
on page 64 and Rectifier Parameters Basic Access Level on page 64 for
parameters available at the Basic level.
The active access level is displayed in Parameter Access Level (196).
To select the parameter access level using the OIM, select the Password icon from
the main menu. See
Figure 28 .
Figure 28 - Selecting the Parameter Access Level
Highlight Password icon
ESC
PROG
LiquiFlo 2.0 0
LCD OIM 1
P0: LiquiFlo 2.0
Auto Stopped
Main Menu
Device Select
Monitor Lang
P2: Active Rectifier
Auto Stopped
Main Menu
Device Select
Monitor Lang
Active Rectifier 2
Highlight Device Select Icon
IMPORTANT This option is not supported in the VS Utilities software.
Auto Stopped
Main Menu
Password
P0: LiquiFlo 2.0
Password:
Set Wrt Prot PW
Set Access Lvl
Highlight Password icon
Password:
Advanced
Select
Highlight option
Monitor Lang
>>
Basic
