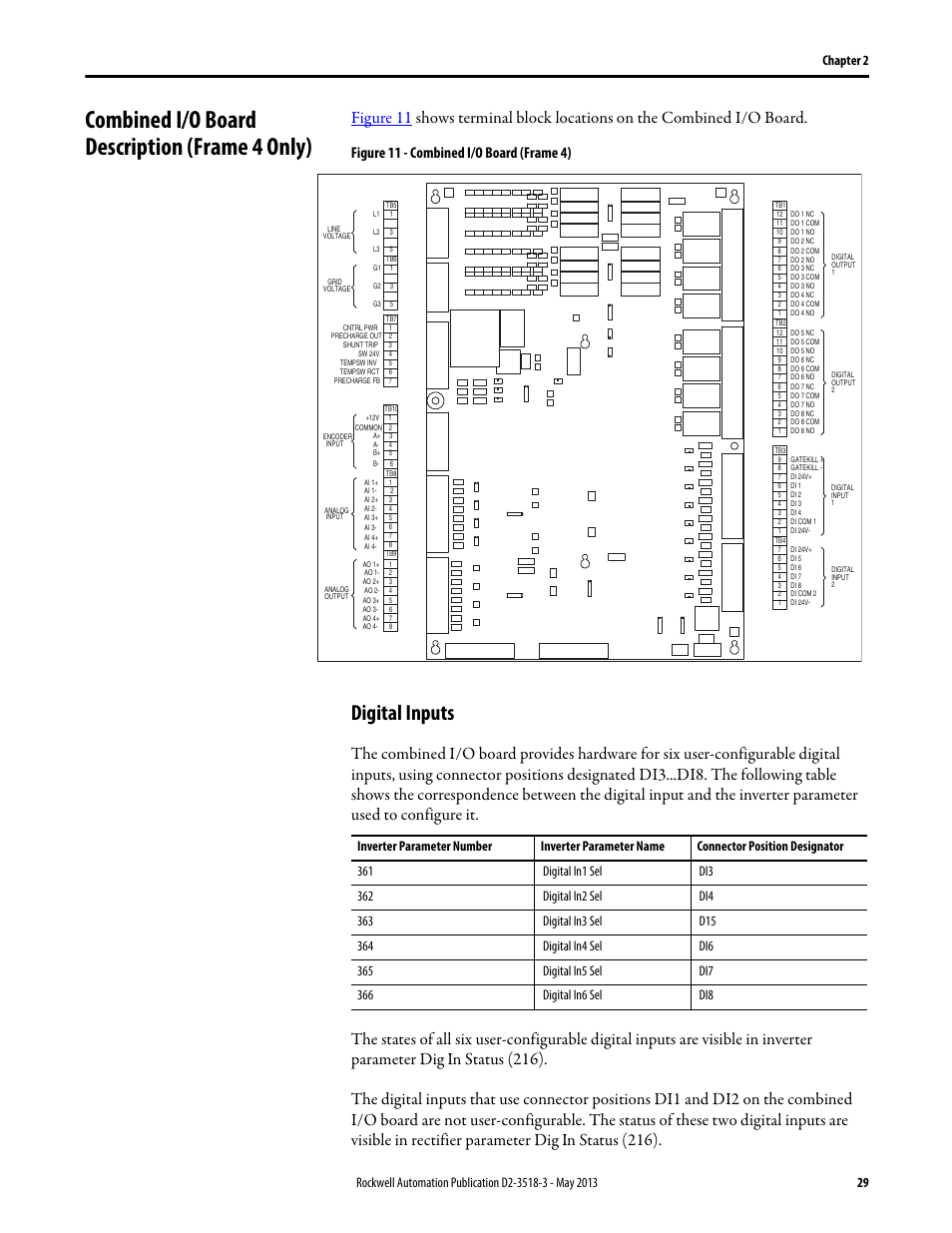

Combined i/o board description (frame 4 only), Digital inputs, Figure 11 - combined i/o board (frame 4) – Rockwell Automation Liqui-Flo V2.0 AC Drive User Manual
Page 29
