Standard i/o board description (frame 3 only), Digital inputs, Digital outputs – Rockwell Automation Liqui-Flo V2.0 AC Drive User Manual

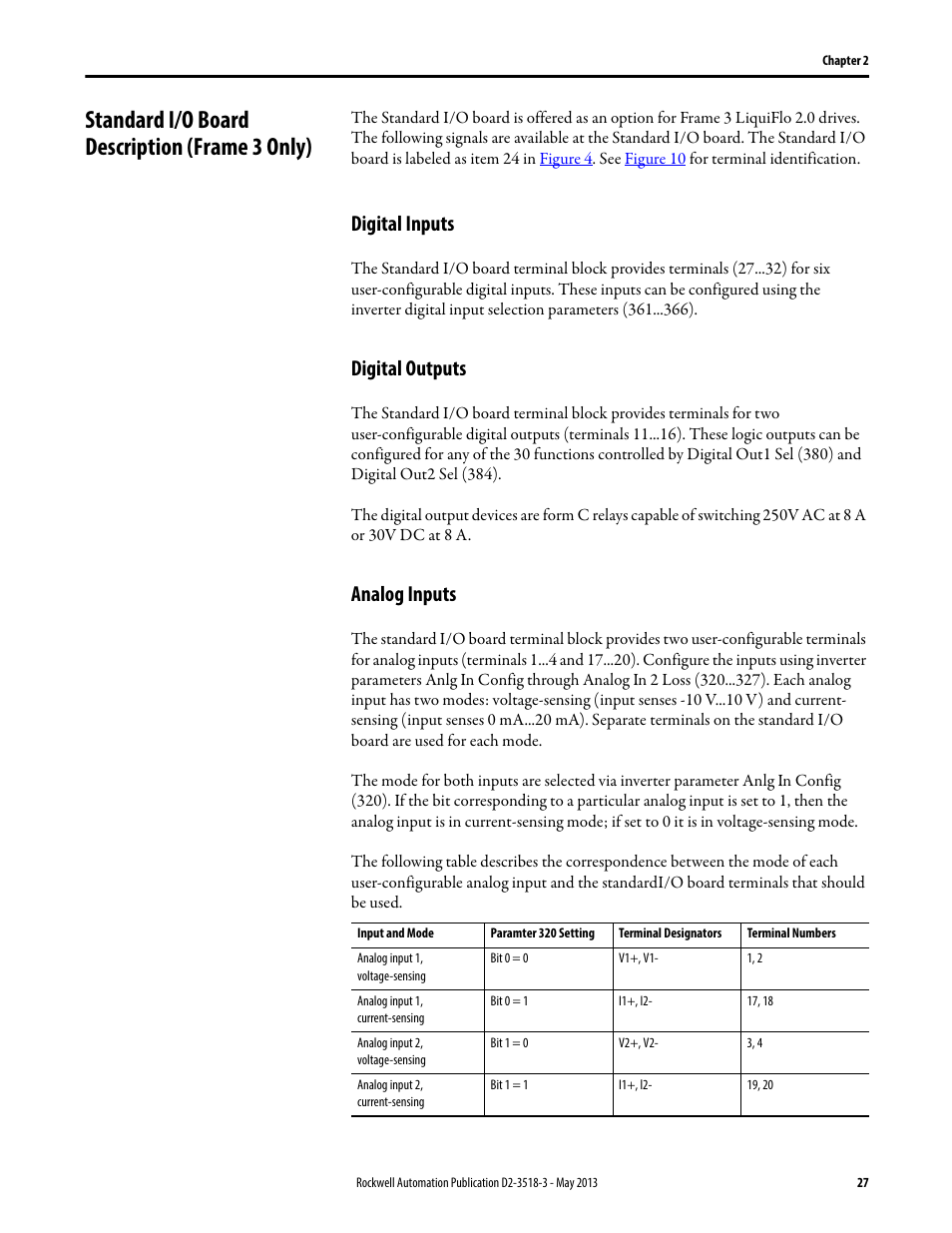

Page 27: Analog inputs, Digital inputs digital outputs analog inputs
