Rockwell Automation Publication 6000-IN007A-EN-P - October 2014 79
No-load Test Chapter 4

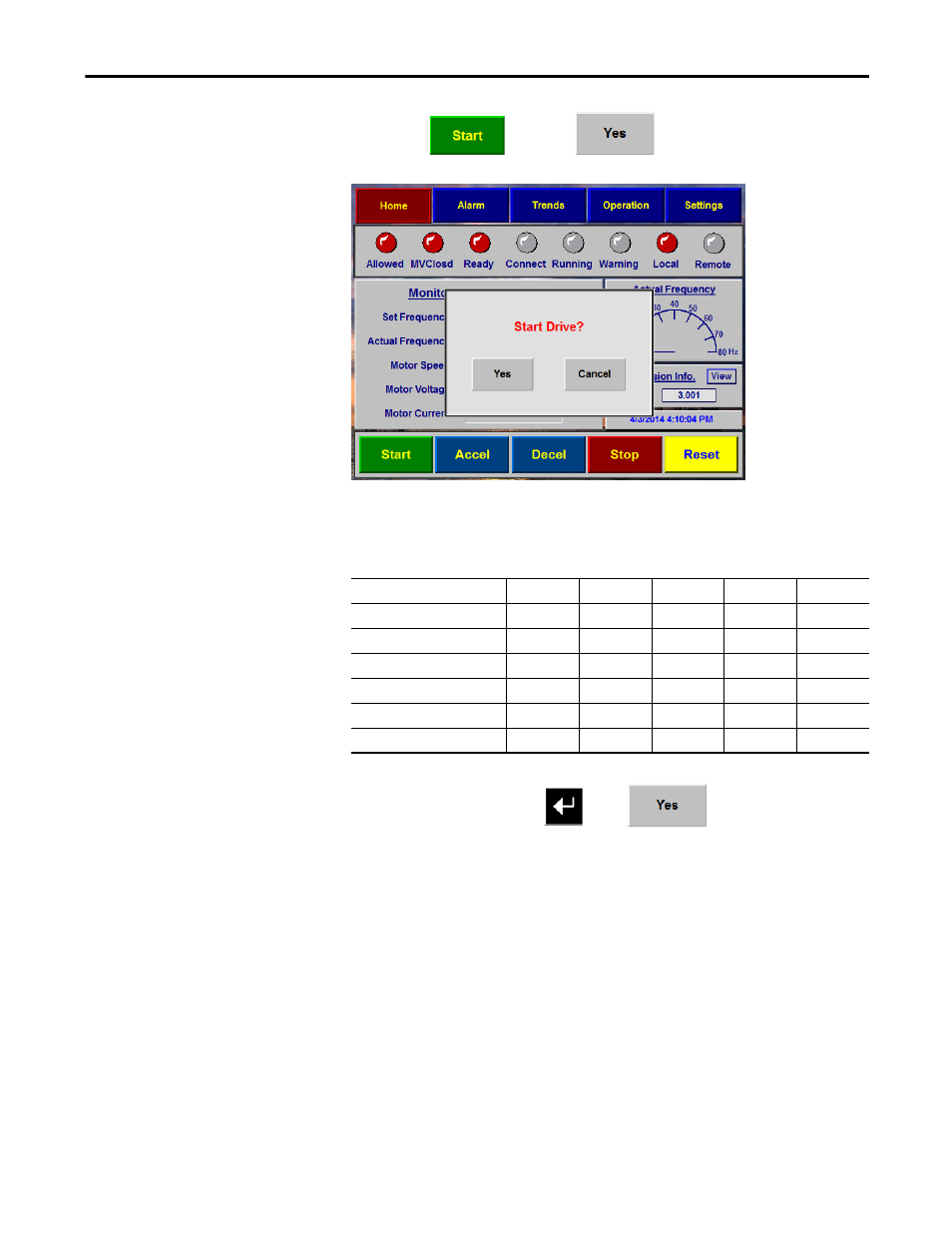

7. Press , and press in the Start Drive? dialog box to
confirm operation.
8. Record the output voltage in the HMI screen.
The value must not by more than ±10% of output voltage based on the
drive configuration.
9. Press the Set Frequency: input field. In the Set Freq: dialog box, enter a
value of “20” and press . Press to confirm.
10. Record the output voltage in the HMI screen.
Repeat this process for 30, 40, and 50 Hz (or 60 Hz).
11. Run the drive for 30 minutes at 50 Hz or 60 Hz (dependent on system
frequency).
12. Switch off customer-supplied control power.
The Control Power Supply Loss warning appears in the HMI.
The K8 relay will automatically switch-off and the K9 relay will switch on
to supply control power from the isolation transformer tertiary winding.
Drive Voltage 10 Hz 20 Hz 30 Hz 40 Hz 50 Hz
3 kV 310 770 1370 2110 3000
3.3 kV 340 850 1500 2320 3300
4.16 kV 430 1060 1900 2930 4160
6 kV 620 1540 2740 4220 6000
6.6 kV 690 1690 3010 4650 6600
10 kV 1040 2560 4560 7040 10,000
