Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Commissioning Manual User Manual
Page 49
Rockwell Automation Publication 6000-IN007A-EN-P - October 2014
49
Commissioning
Chapter 3
3.
Press

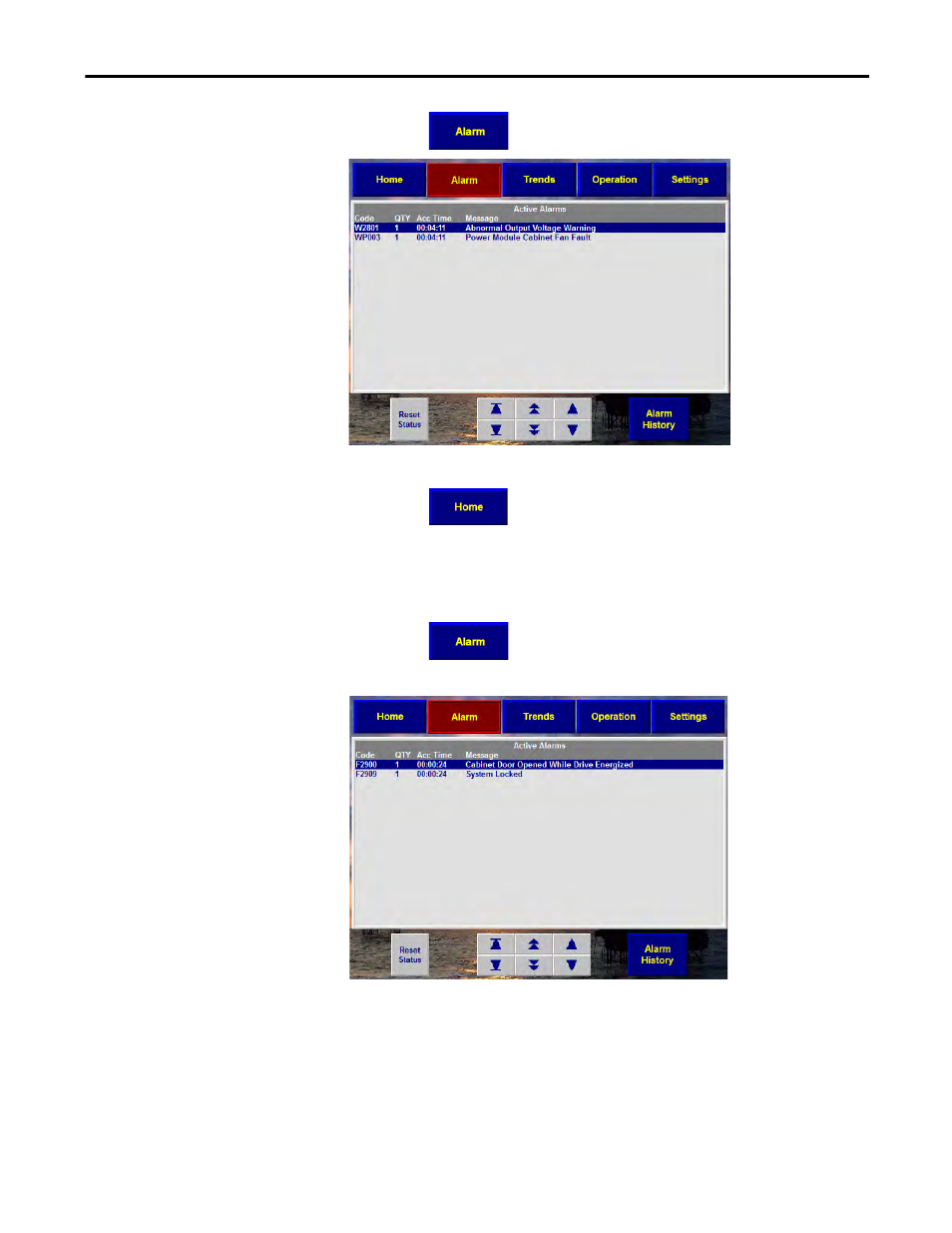

and confirm the Power Module Cabinet Fan Fault.
4.
Turn the (Q13) circuit breaker to the ON position, to remove the fault.
5.
Press
to return to the Main Interface Screen.
Simulate Cabinet Door Open Warning
1.
Open the left Isolation Transformer Cabinet door.
2.
Press
to confirm the Cabinet Door Open Warning.
The drive will shut off.
3.
Close the left Isolation Transformer Cabinet to remove the warning.
4.
Repeat this procedure using the:
•
Right Isolation Transformer Cabinet door
•
Left Power Module/LV Cabinet door
•
Right Power Module/LV Cabinet door
•
Bypass Cabinet door (if applicable)
