Rockwell Automation Publication 6000-IN007A-EN-P - October 2014 45
Commissioning Chapter 3
Simulate Warnings and Faults
This section describes how to simulate warnings and faults, and how to clear or
reset the alarm. Warning codes begin with a W prefix, and fault codes begin with
a F prefix.
The Set Frequency: field will already have 50 Hz shown from the previous
exercise in the Set Freq: dialog box.

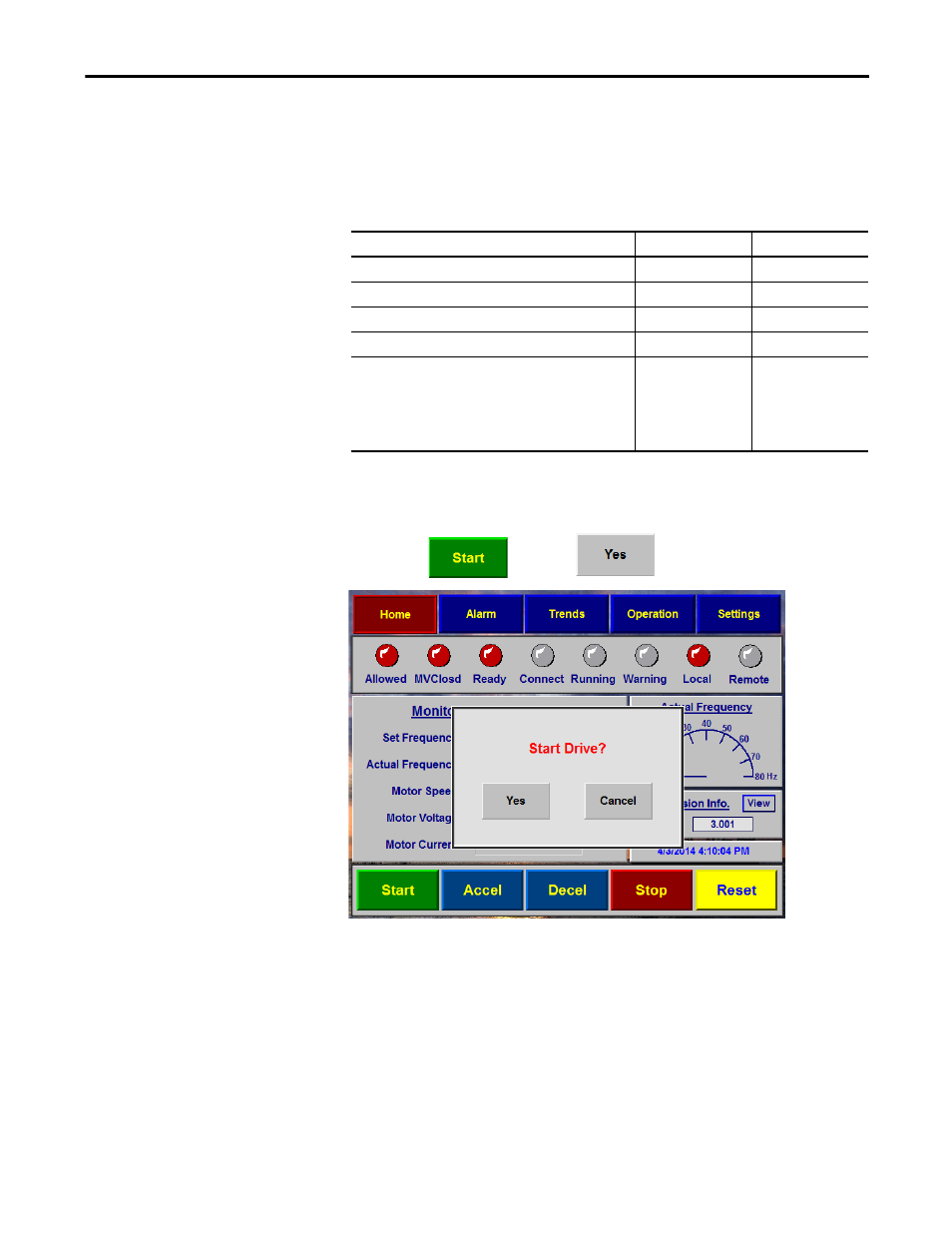

1. Press , and press in the Start Drive? dialog box.
Simulate the Transformer Overtemperature Warning
1. Open the LV door of the Isolation Transformer cabinet.
2. Using a jumper wire, connect terminal blocks 401 and 419 on the
transformer protection relay.
Alarm Self-clearing Requires Reset
Transformer Overtemperature Warning YES
Transformer Overtemperature Trip YES
Transformer Cabinet Main Cooling Fan Fault YES
Power Module Cabinet Main Cooling Fan Fault YES
Cabinet Door Open Warning
– Left Isolation Transformer Cabinet Door
– Right Isolation Transformer Cabinet Door
– Left Power Module/LV Cabinet Door
– Right Power Module/LV Cabinet Door
– Bypass Cabinet Door (if applicable)
YES
