Preparation and Inspection Chapter 2
Final Steps before
Equipment is Ready for
Energization 1. Review interior of all cabinets for foreign material that might have been
left behind during the installation process. Ensure no tools, hardware, or
wiring debris remain in the drive system cabinets. Clear any metal shavings
that may result from any drilling activities.
2. If any internal barriers were removed during the commissioning process,
ensure they are reinstalled.
Seal the Cabinet Plates
Once the back plates have been reattached, the seams along the plates must be
sealed with silicone. Where the silicone is applied is dependent on the cabinet
configuration (Fixed-mounted or Drawout Power Module).

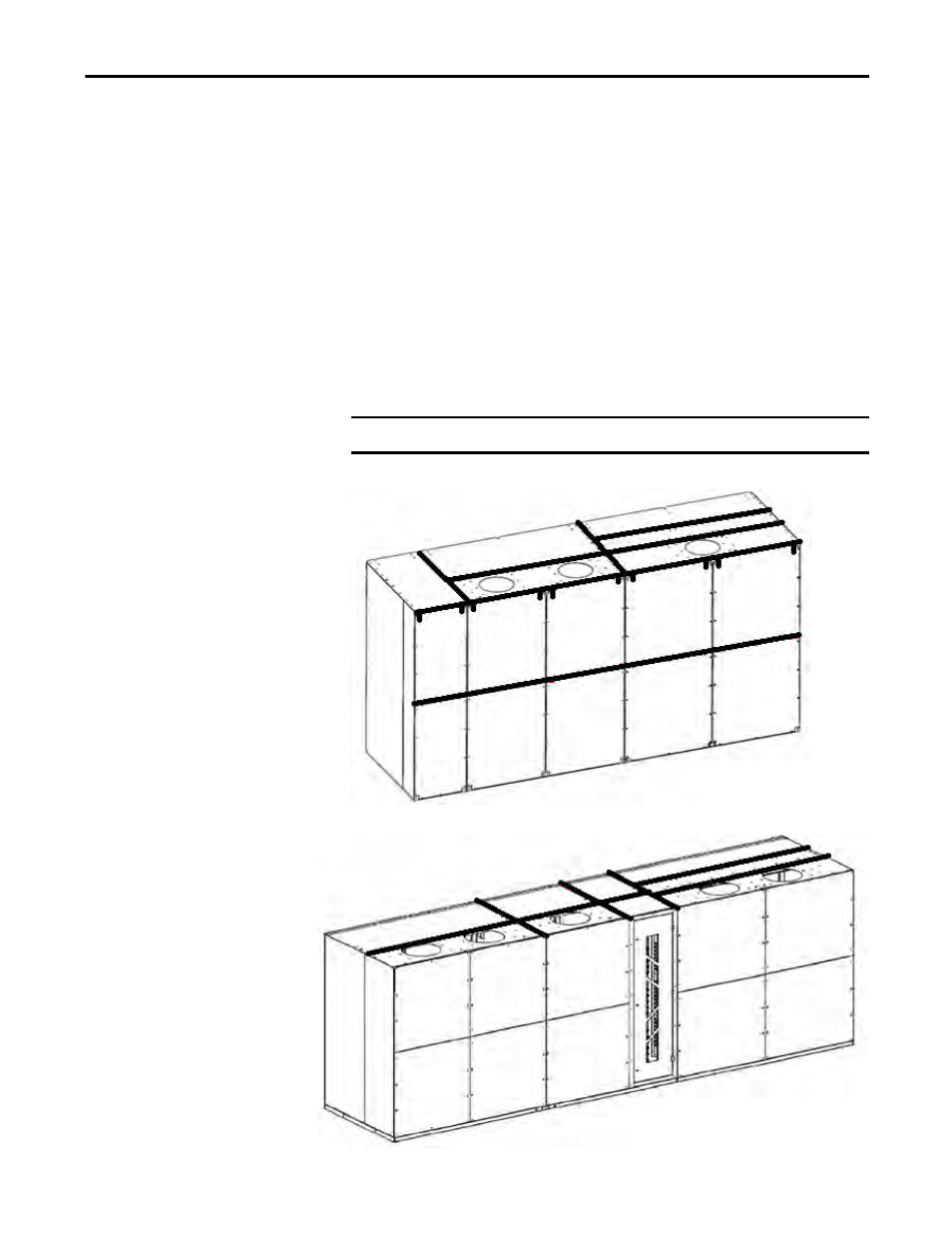

Figure 11 - Silicone Locations on Fixed-mounted Power Module Configuration
Figure 12 - Silicone Locations on Drawout Power Module Configuration
IMPORTANT Use the approved silicone that is shipped with the drive.
Apply silicone as
shown by bold lines
Apply silicone as
shown by bold lines
