Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Commissioning Manual User Manual
Page 53
Rockwell Automation Publication 6000-IN007A-EN-P - October 2014
53
Commissioning
Chapter 3
2.
Open the Bypass cabinet door, and close QS2 and QS3.

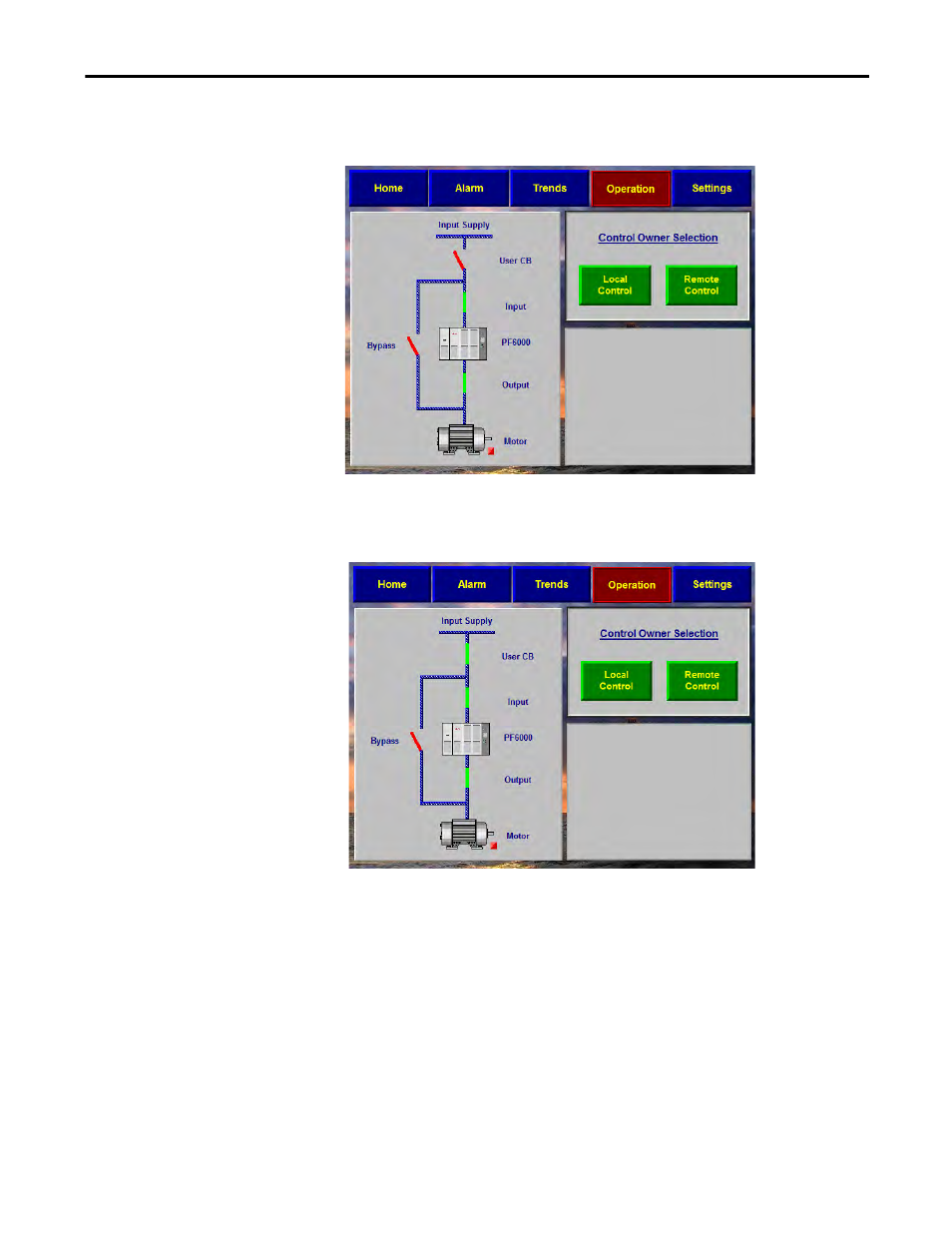

Verify the Input and Output contactors are closed on the HMI.
3.
Close the customer-supplied input circuit breaker by installing a
temporary jumper wire (X-117, X-119).
Verify the input circuit breaker is closed.
