Rockwell Automation 6000 PowerFlex Medium Voltage Variable Frequency Drive Commissioning Manual User Manual
Page 25
Rockwell Automation Publication 6000-IN007A-EN-P - October 2014
25
Preparation and Inspection
Chapter 2
5.
Switch the miniature circuit breakers in the LV Cabinet off.

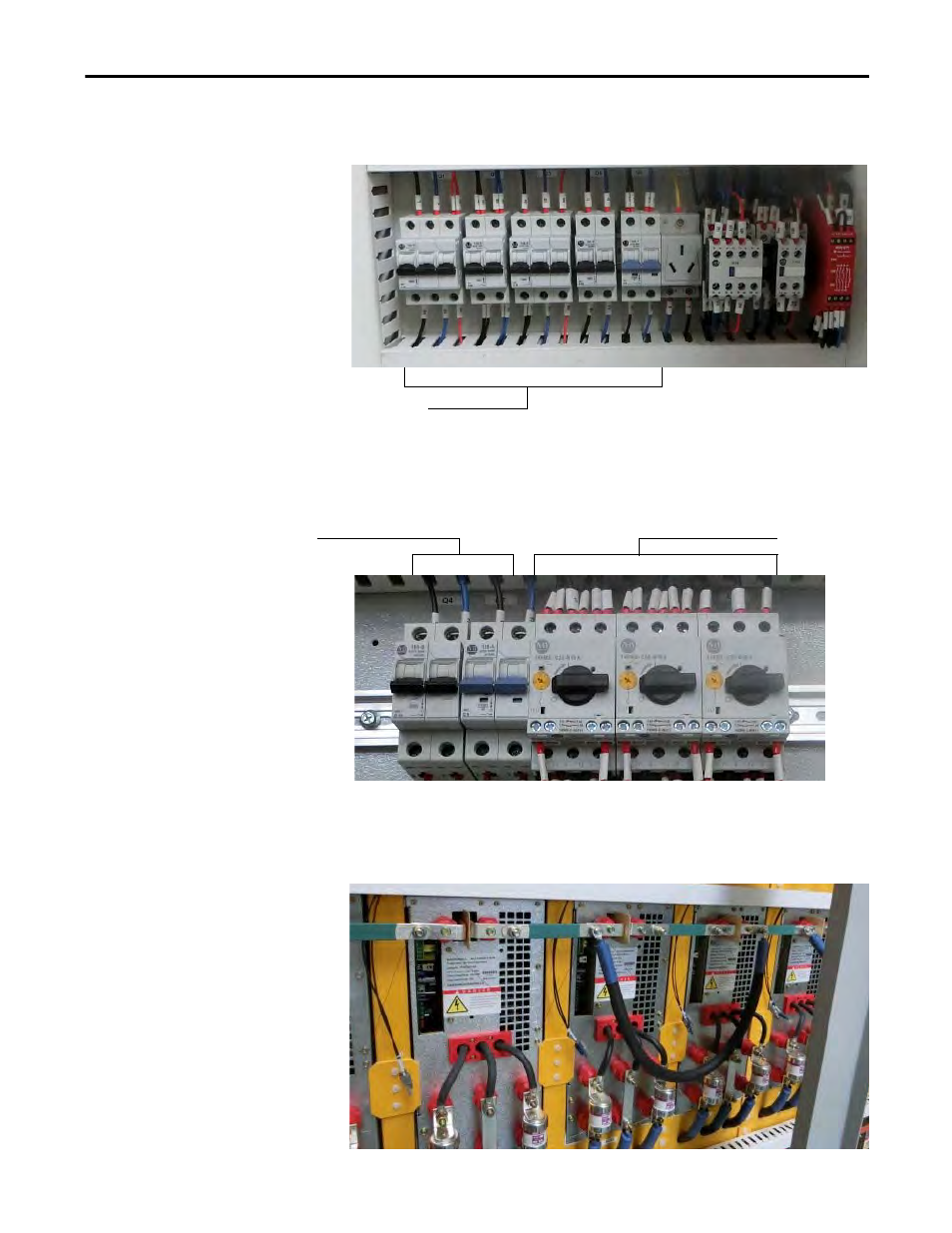

Figure 4 - Control Switches
6.
Switch the miniature circuit breakers in the Isolation Transformer Cabinet
LV Control panel off. Switch the Top Main Cooling Fan circuit breakers
off.
Figure 5 - Control Switches
7.
Remove two star connection cables (the cabling that goes through the
HECS) and connect them to the output connections of any two power
modules within a phase.
Figure 6 - Star Connection Cable
Miniature Circuit Breakers
Top Main Cooling
Fan Circuit Breakers
Miniature Circuit Breakers
