64
Rockwell Automation Publication 1783-UM004E-EN-P - June 2014
Chapter 2 Switch Installation
Connect the Switch to a DC Power Source
You must supply a power solution for the device. An IP67-rated cordset or
patchcord with a female-end, 4-pin mini connector is required to provide power
to the switch. Rockwell Automation offers a Bulletin 1607 IP67-rated power
supply to provide 24V DC power to the switch. Ethernet communication and
control power cables are available separately.
Power over Ethernet
For switches with Power over Ethernet (PoE) capability, PoE power is drawn
from the single power connection. There is no separate power input for PoE.
Power Cables and Cordsets
Cordsets

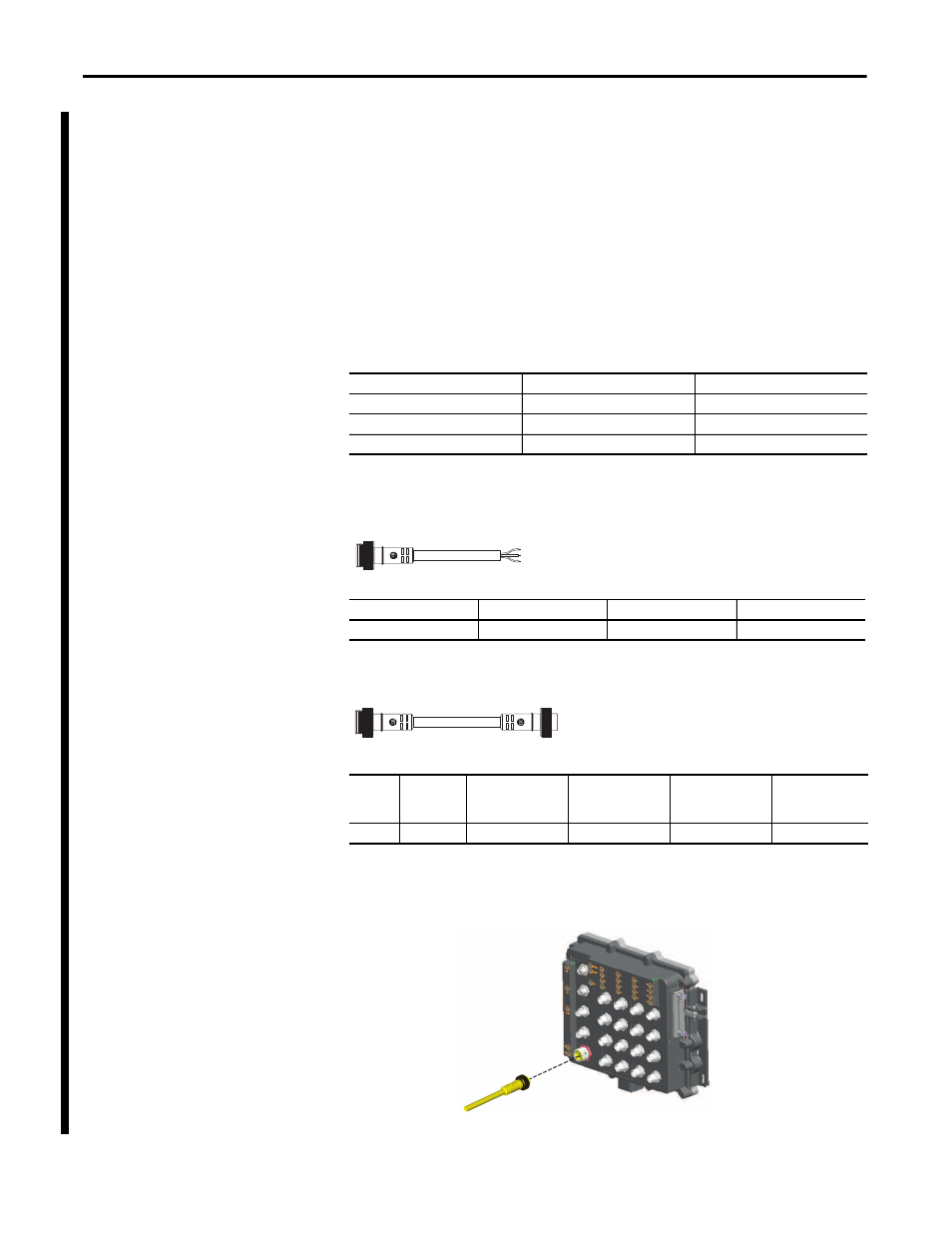

Connect the DC power to the switch through the front panel connector.
Switch Configuration
Required Power Input
Power Supplied per Port
PoE
44-57V
15.4 W, max
PoE+
50-57V
30 W, max
Non-PoE
9.6…60V
Not applicable
No. of Pins
Assembly Rating
Straight Male
Right Angle Male
4
600V, 10 A
889N-M4AFC
(1)
F
(1) Replace (1) with 6 (6 ft), 12 (12 ft), or 20 (20 ft) for standard cable lengths.
Patchcords
889N-E4AFC
(1)
F
No. of
Pins
Assembly
Rating
Straight Female,
Straight Male
Straight Female,
Right Angle Male
Right Angle
Female, Straight
Male
Right Angle
Female,
Right Angle Male
4
600V, 10 A
889N-F4AFNM-
(1)
(1) Replace (1) with 1 (1 m), 2 (2 m), 5 (5 m), and 10 (10 m) for standard cable lengths.
889N-F4AFNE-
(1)
889N-R4AFNM-
(1)
889N-R4AFNE-
(1)
32475
32476
32478
