Upload and download configuration files, Upgrade license files – Rockwell Automation 1783-BMxxx Stratix 5700 Ethernet Managed Switches User Manual User Manual
Page 186

186
Rockwell Automation Publication 1783-UM004E-EN-P - June 2014
Chapter 4 Manage the Switch via the Device Manager Web Interface

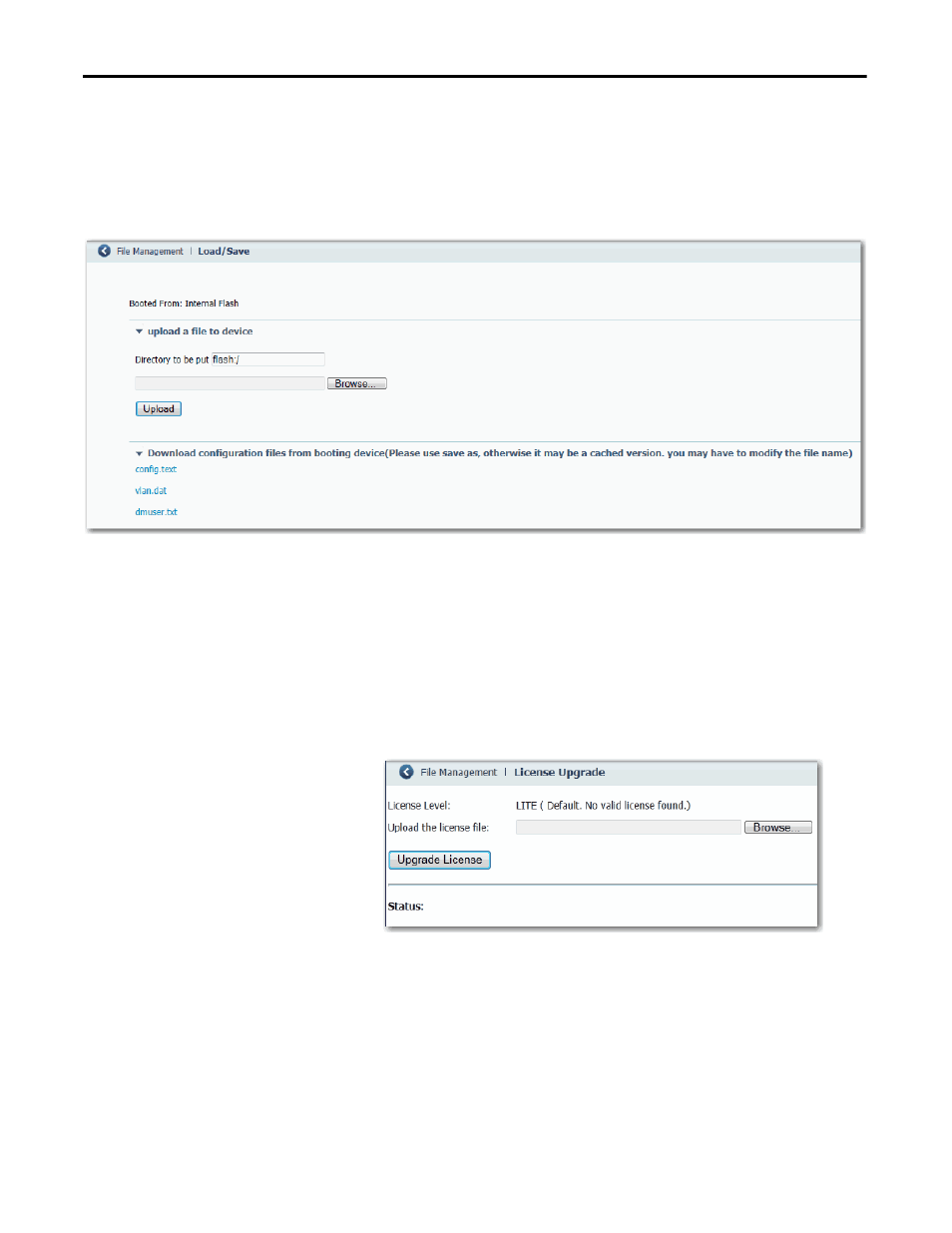

Upload and Download
Configuration Files
To copy a configuration file from a file on another device, such as a PC, to the
onboard memory, enter the directory name of the folder on the switch, browse to
select the file, and click Upload.
To download a configuration file from the onboard memory to your computer,
right-click the link and choose Save Link As.
Upgrade License Files
After obtaining a license file, use the License Upgrade window to install it on the
switch.
1. Click Browse to select the license file.
2. Click Upgrade License to begin the upgrade process.
Messages appear to indicate the progress. Once the upgrade is complete,
the switch restarts.
