Chapter 5 Manage the Switch via the Studio 5000 Environment
Save and Restore the
Switch Configuration

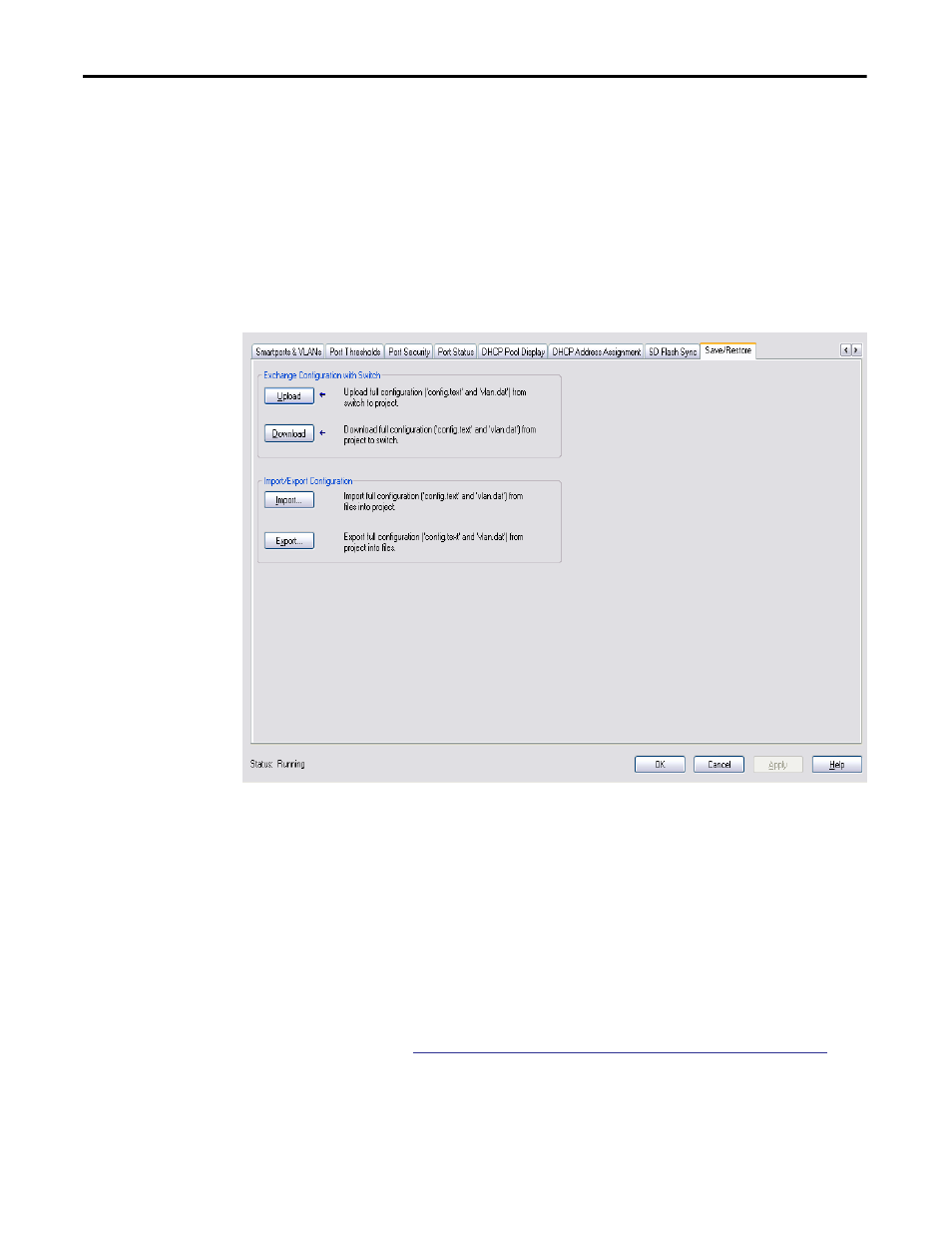

Use this tab to do the following:
• Save the switch configuration to a file for archiving
• Restore a switch configuration stored locally on the computer or within
the Logix Designer application project.
You must be online to save and restore configuration files. Most of the settings
appear dimmed when the switch is offline.
Be prepared to enter a valid switch password to save and restore a switch
configuration.
The switch configuration consists of these two files:
• Text file containing configuration parameters
• Binary file containing VLAN information
Once the switch configuration is uploaded to the project file in the Logix
Designer application, the switch configuration can be exported as computer files
by using the Export button.
You can import a switch configuration from the appropriate files on your
computer to the project by using the Import button on the switch AOP. You can
then download the configuration to the switch by using the Download button on
the AOP.
Refer to Save and Restore the Switch Configuration on page 234
more information on the Save and Restore feature.
