230
Rockwell Automation Publication 1783-UM004E-EN-P - June 2014
Chapter 5 Manage the Switch via the Studio 5000 Environment

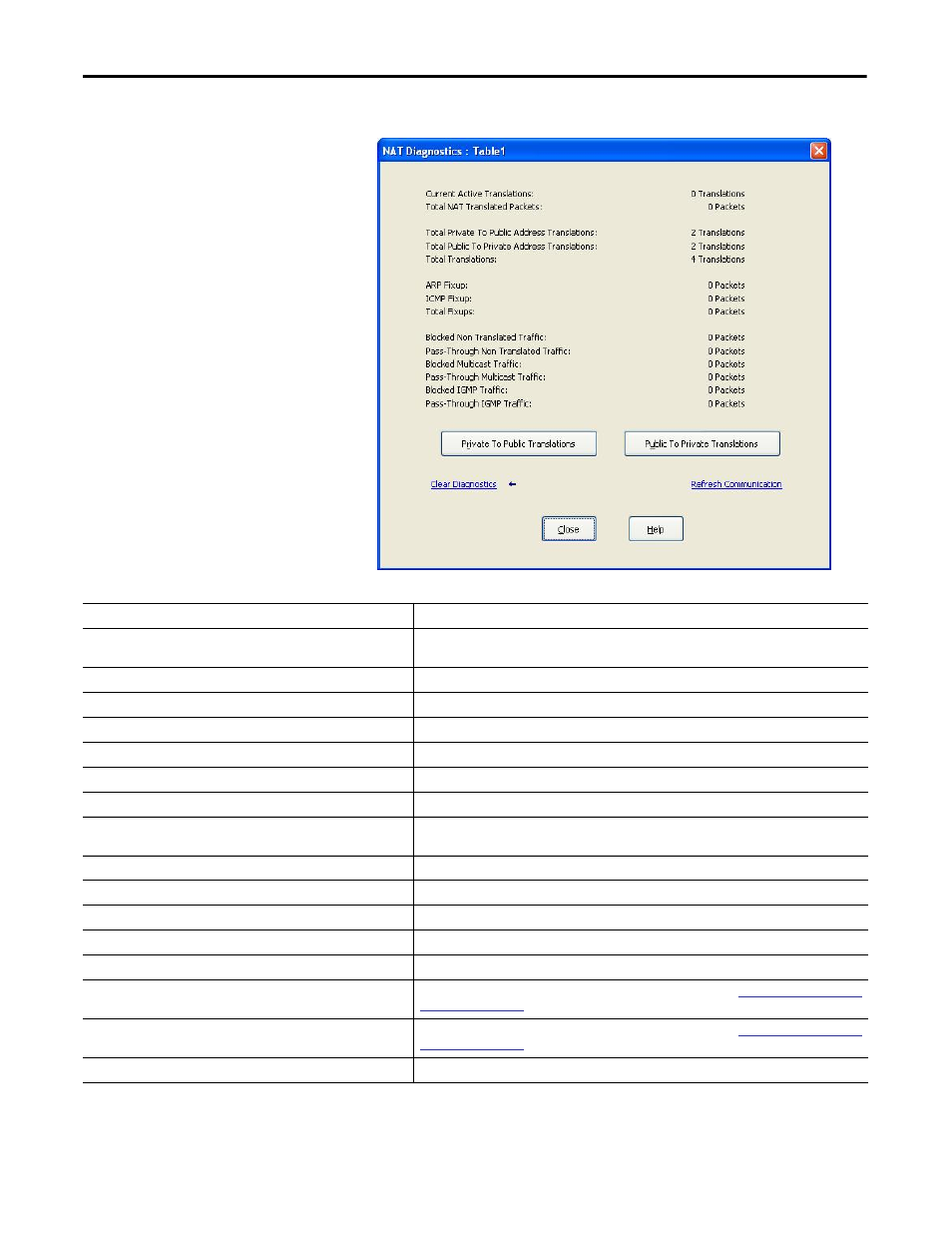

The NAT Diagnostics dialog box displays diagnostics for the selected instance.
Table 44 - NAT Diagnostics per Instance
Field
Description
Current Active Translations
Displays the number of translations that have occurred within the last 90 seconds across all NAT
instances.
Total NAT Translated Packets
Displays the total number of packets that have been translated for this instance.
Total Private to Public Address Translations
Displays the total number of private-to-public translations for this instance.
Total Public to Private Address Translations
Displays the total number of public-to-private translations for this instance.
ARP Fixup
Displays the number of ARP packets that have been fixed up for this instance.
ICMP Fixup
Displays the number of ICMP packets that have been fixed up for this instance.
Total Fixups
Displays the number of ARP and ICMP packets that have been fixed up for this instance.
Incoming Non Translated Traffic (Pass-Through)
Displays the number of incoming packets with untranslated traffic that NAT passed through for this
instance.
Outgoing Non Translated Traffic (Blocked)
Displays the number of outgoing packets with untranslated traffic that NAT blocked for this instance.
Incoming Multicast Traffic (Blocked)
Displays the number of incoming packets with multicast traffic that NAT blocked for this instance.
Outgoing Multicast Traffic (Pass-Through)
Displays the number of outgoing packets of multicast traffic that NAT passed through for this instance.
Incoming IGMP Traffic (Blocked)
Displays the number of incoming packets with IGMP traffic that NAT blocked for this instance.
Outgoing IGMP Traffic (Blocked)
Displays the number of outgoing packets with IGMP traffic that NAT blocked for this instance.
Private to Public Translations
Click to view private-to-public translation diagnostics for the instance. See
.
Public to Private Translations
Click to view private-to-public translation diagnostics for the instance. See
.
Refresh Communication
Click to refresh all diagnostics for this instance.
