Rockwell Automation Publication 1783-UM004E-EN-P - June 2014
225
Manage the Switch via the Studio 5000 Environment Chapter 5

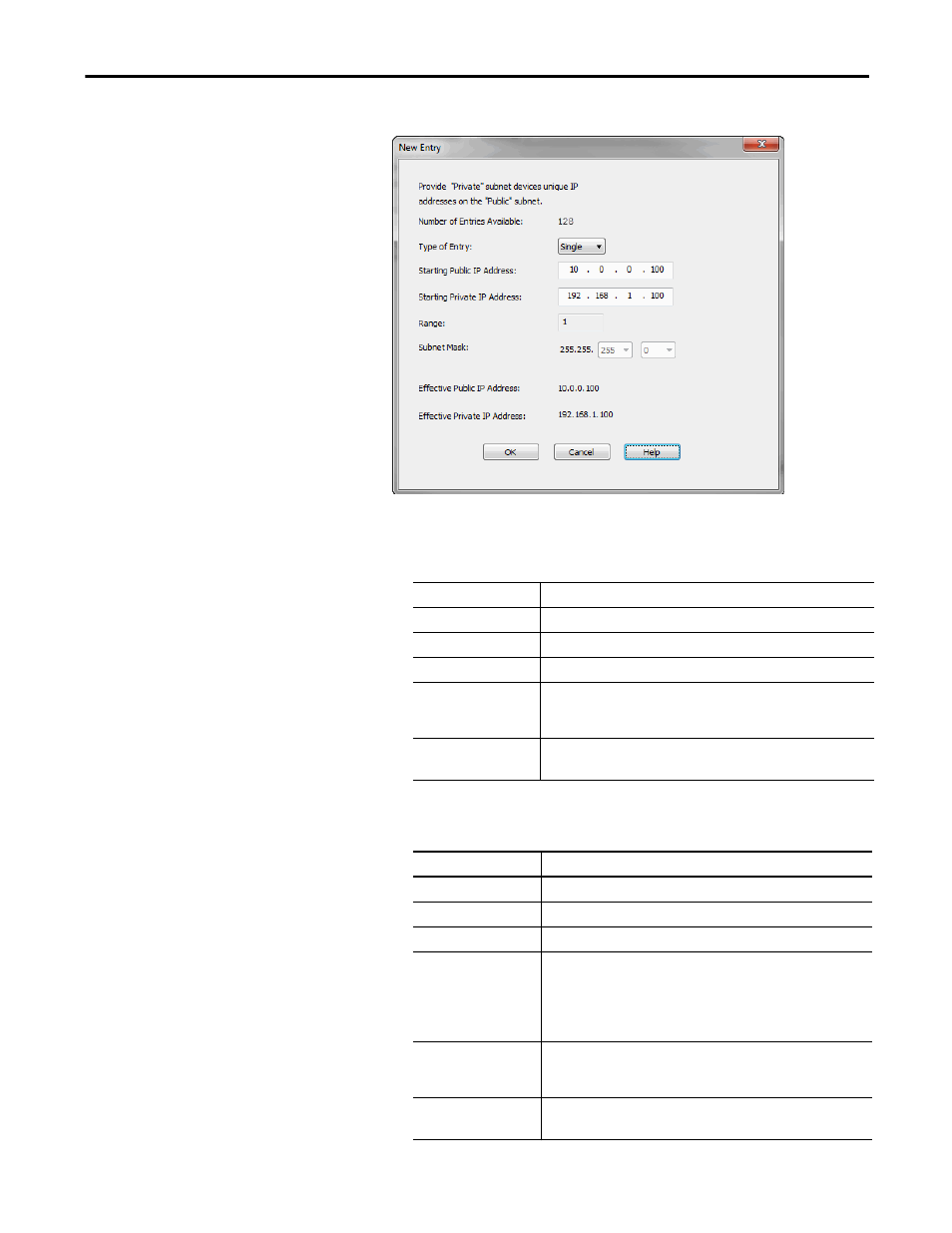

8. Click New Entry to display the New Entry dialog box.
9. Do one of the following:
• To translate a single address for a device on the public subnet that needs
to communicate on the private subnet, complete the fields below.
• To translate a range of addresses for devices on the public subnet that
need to communicate on the private subnet, complete the fields below
Field
Description
Type of Entry
Choose Single. This is the default value.
Starting Public IP Address
Type the existing address for the device on the public subnet.
Starting Private IP Address
Type a unique private address to represent the device.
Effective Public Addresses
Displays the existing address for the device on the public subnet that is
configured for translation.
If blank, verify that the values in the fields above are valid.
Effective Private Addresses
Displays the unique private address to represent the device.
If blank, verify that the values in the fields above are valid.
Field
Description
Type of Entry
Choose Range.
Starting Public IP Address
Type the existing starting address for the device on the public subnet.
Starting Private IP Address
Type a unique, starting private address to represent the devices.
Range
Type the number of addresses to include in the range.
Valid values: 1…128
Default value = 1
IMPORTANT: Each address in the range counts as one translation entry.
The switch supports a maximum of 128 translation entries.
Effective Public Addresses
Displays the range of existing addresses for devices on the public subnet
that are configured for translation.
If blank, verify that the values in the fields above are valid.
Effective Private Addresses
Displays the range of unique private addresses to represent the devices.
If blank, verify that the values in the fields above are valid.
