11 Diagnostics
11.1 LED status displays
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

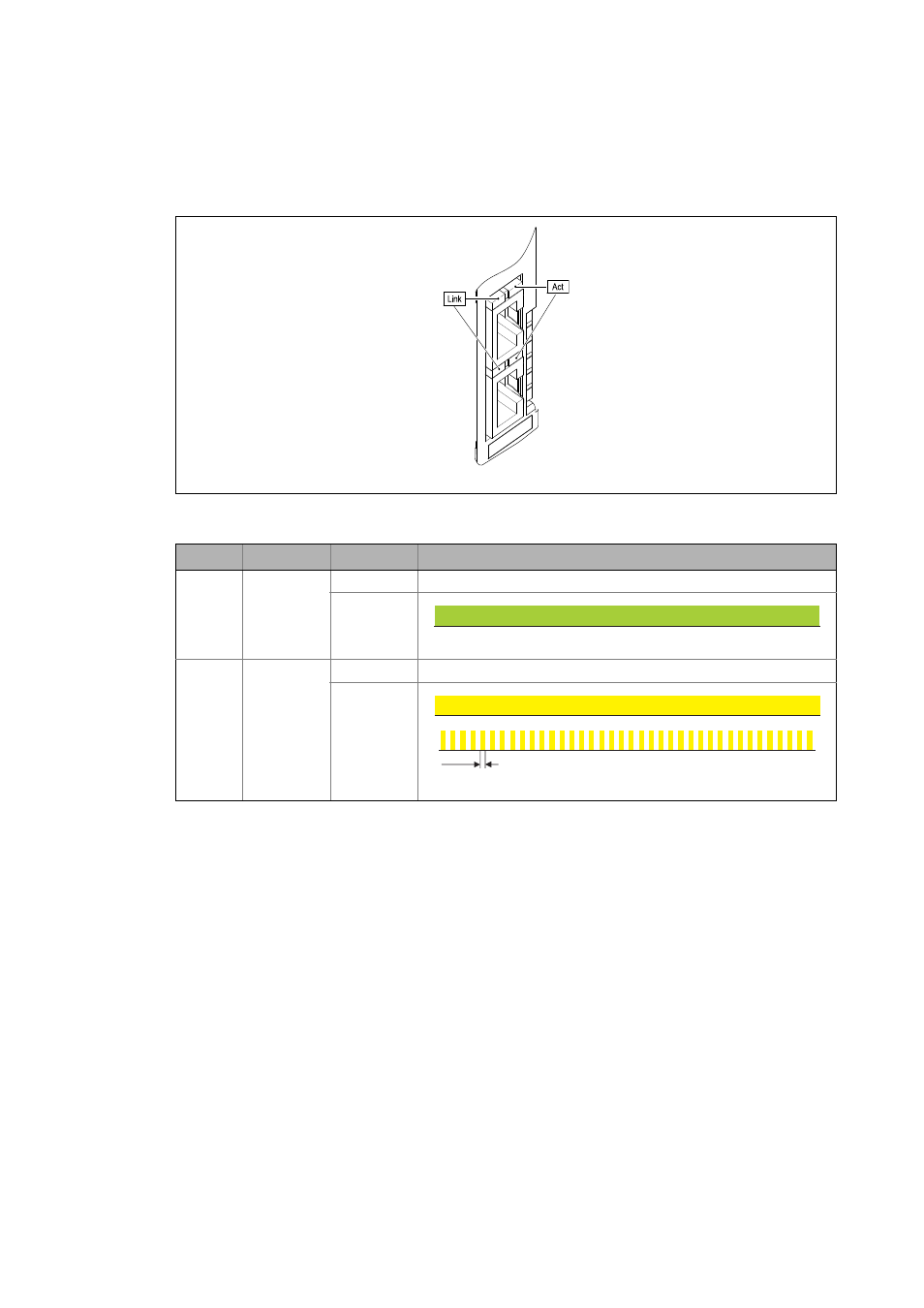

11.1.3 Status displays on the RJ45 sockets (X233, X234)
The LEDs on the RJ45 sockets X233 and X234 indicate the Ethernet connection status.
[11-3] LEDs Link , Act
E94AYCEO001E
LED Colour Status Description
Link Green Off No Ethernet connection
On
There is a physical Ethernet connection.
Act Yellow Off No Ethernet data transfer
On or
flickers
Data are being exchanged via Ethernet.
50 ms
