8 I/O data transfer (implicit messages)
8.3 I/O configuration with »RSLogix 5000« version 19 or lower
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9. Complete the settings with OK.
• The I/O configuration is now complete.

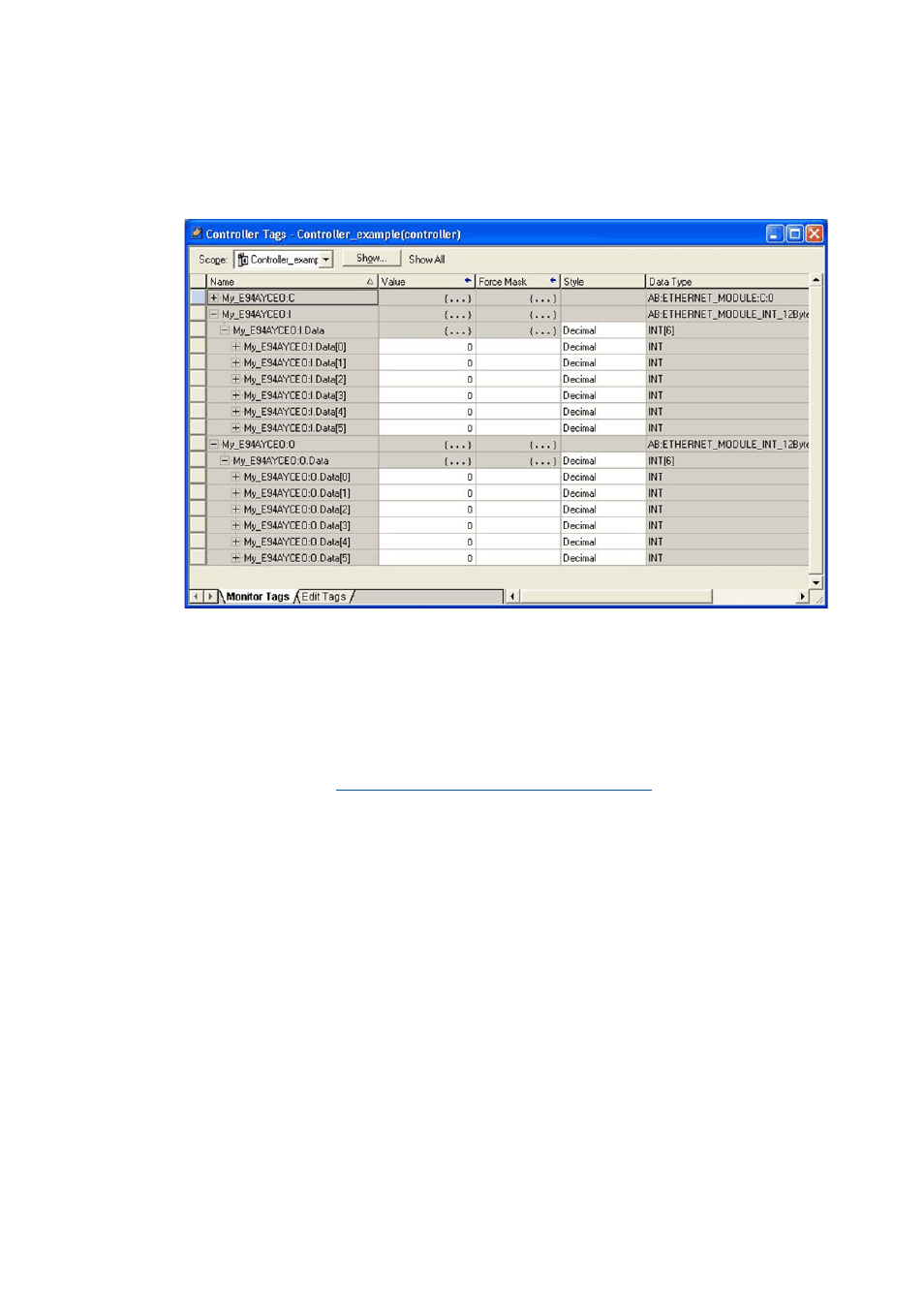

• The corresponding tags are then created in the "controller tags" of the control project:
In the example, the drive was named "My_E94AYCEO". There are three tag sets labelled
"My_E94AYCEO":
• "My_E94AYCEO:C" for the assembly configuration instance "1"
• "My_E94AYCEO:I" for the assembly input object instance "111"
• "My_E94AYCEO:O" for the assembly output object instance "110"
Click on the [ + ] in front of the "My_E94AYCEO" data to display the I/O data words of the
assemblies.
10. The last step is Saving the I/O configuration in »RSLogix 5000« ( 69) .
