9

Parameter data transfer (explicit messages)

9.2

Read parameters

73

Lenze · E94AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 12/2013 · TD17

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

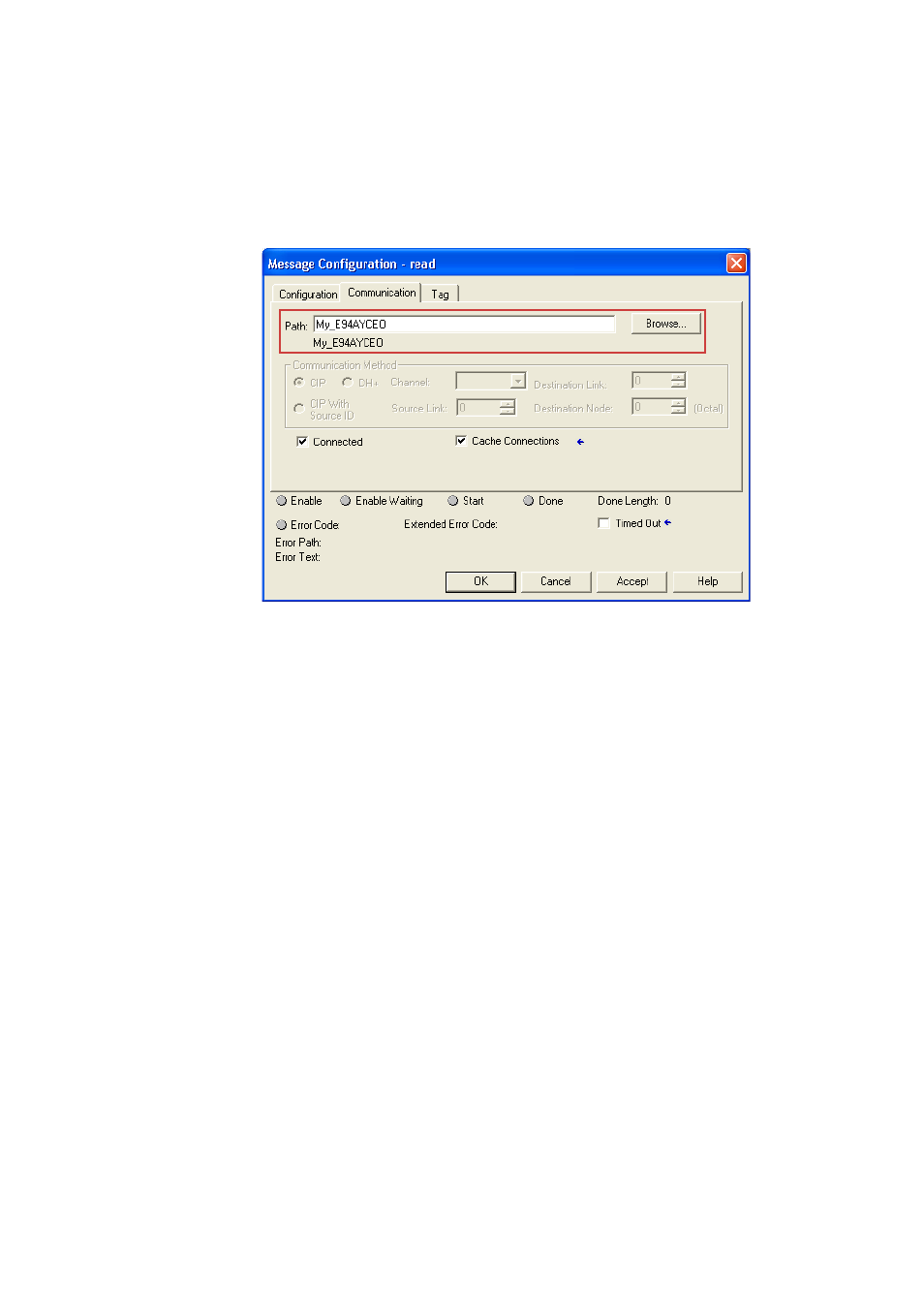

For every "explicit message", the path for sending the message via the Ethernet port of the

controller (scanner) to the IP address of the drive (adapter) needs to be set under the

Communication tab.
If you need assistance with the setting of this path, please consult the PLC manufacturer.
