I/O data transfer (implicit messages)

8.2

I/O configuration in the »Engineer«

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

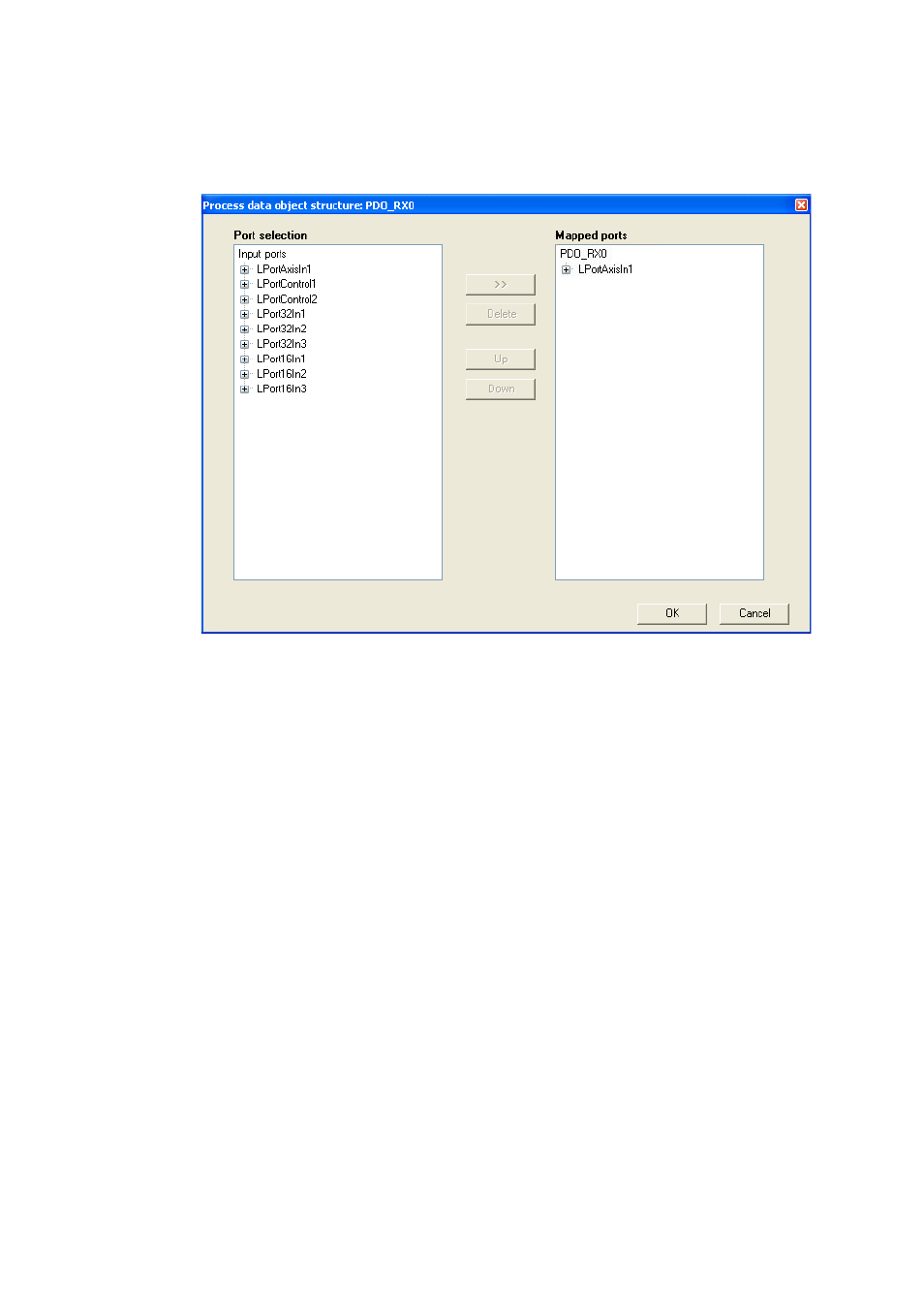

3. Click the Edit PDO button. The Process data object structure:PDO_RX0 selection window

opens:

Here you can map the individual ports from the Port Selection list to the receive PDO

"PDO_RX0" by clicking the >> button. The Up and Down buttons serve to shift the sequence

of the ports within the PDO.

4. Repeat steps 2. and 3. for the send object PDO_TX0.
