6 Commissioning
6.3 Setting the IP configuration of the Servo Drive 9400
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.3.2 Setting via codes in the »Engineer«

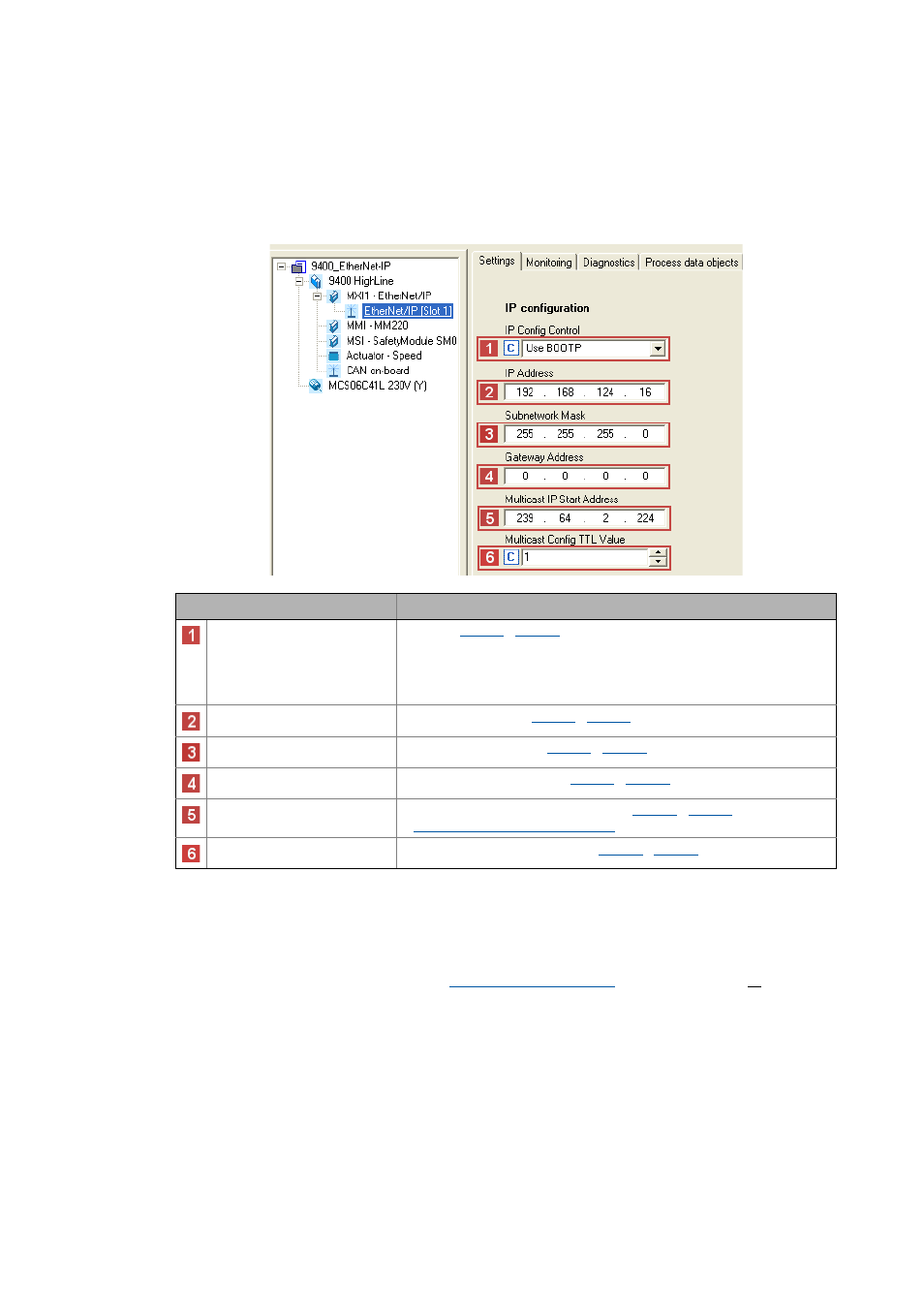

You can also set the IP parameters manually in the »Engineer« under the Settings tab. The values
will be transferred to the corresponding codes.

How to activate changed settings in the »Engineer«:
1. Execute device command C00002 = "11: Save all parameter sets".
The current IP configuration is stored in the memory module of the drive.
2. Carry out a "Type 0 reset" for the Identity Object (1 / 0x01) ( 121) of the node, or switch the
voltage supply of the communication module off and on again.
Settings Description
IP Config Control Selection ( C13005 / C14005 ) of how the IP configuration is to be effected:
• 0: The IP configuration currently stored in the communication module is
used.
• 1: The IP configuration is assigned by a BOOTP server using the BOOTP.
• 2: The IP configuration is assigned by a DHCP server using the DHCP.
IP Address Setting the IP address ( C13000 / C14000 )
Subnet mask Setting the subnet mask ( C13001 / C14001 )
Gateway Address Setting the gateway address ( C13002 / C14002 )
Multicast IP Start Address Setting of the multicast IP start address ( C13006 / C14006 )
 Setting the multicast configuration ( 43)
Multicast Config TTL Value Setting of the multicast TTL value ( C13019 / C14019 )
