8 I/O data transfer (implicit messages)
8.2 I/O configuration in the »Engineer«
57
Lenze · E94AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 12/2013 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

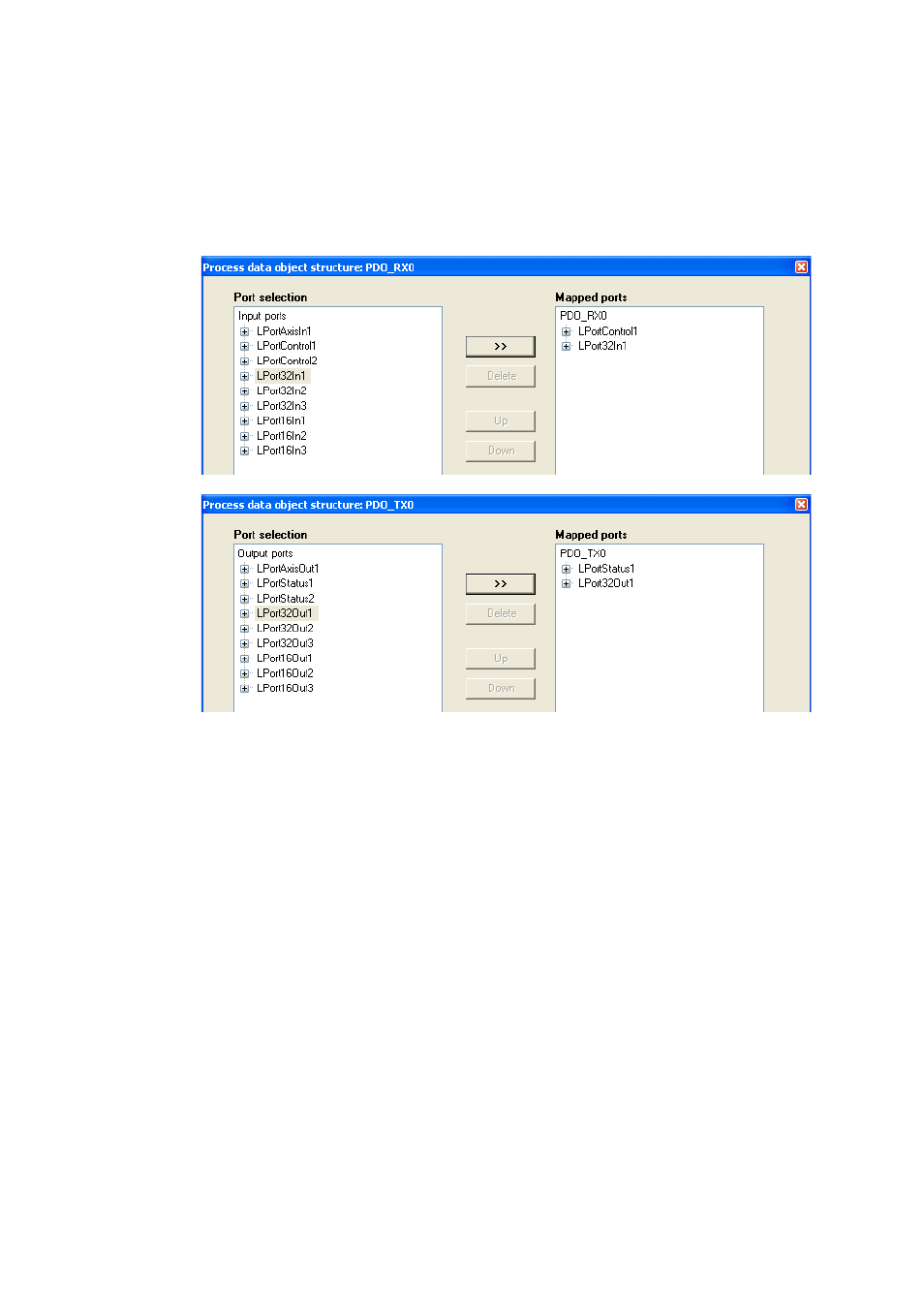

In the following example, ...
• the ports "LPortControl1" and "Lport32In1" (a total of 6 bytes) have been mapped into
the receive PDO PDO_RX0;
• the ports "LPortStatus1" and "LPort32Out1" (a total of 6 bytes) have been mapped into
the transmit PDO PDO_TX0.
5. Then link the mapped ports to application signals in the technology application selected.
• Activate the »FB-Editor« via the multiplexer codes (from code C03000) if this has not
been done yet.
• If the »FB Editor« is activated, the multiplexer codes are no longer available. In this case,
you must carry out the interconnection directly in the »FB Editor«.
