5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.3 EtherNet/IP connection
The EtherNet/IP connection is carried out via the RJ45 sockets X233 and X234.
You can use a standard Ethernet patch cable to connect the communication module to the
EtherNet/IP fieldbus.
 Ethernet cable specification ( 30)
The installation and removal of the Ethernet cables is optimised for the use of connectors in
accordance with the "Automation Initiative of German Domestic Automobile Manufacturers"
(AIDA).
Pin assignment

Tip!
The EtherNet/IP interfaces feature an auto-MDIX function. This function adjusts the
polarity of the RJ45 interfaces so that a connection can be established irrespective of the
polarity of the opposite EtherNet/IP interface and irrespective of the type of cable used
(standard patch cable or crossover cable).

Note!
To prevent the RJ45 socket from being damaged, insert or remove the Ethernet cable
connector straight (at a right angle) into or from the socket.

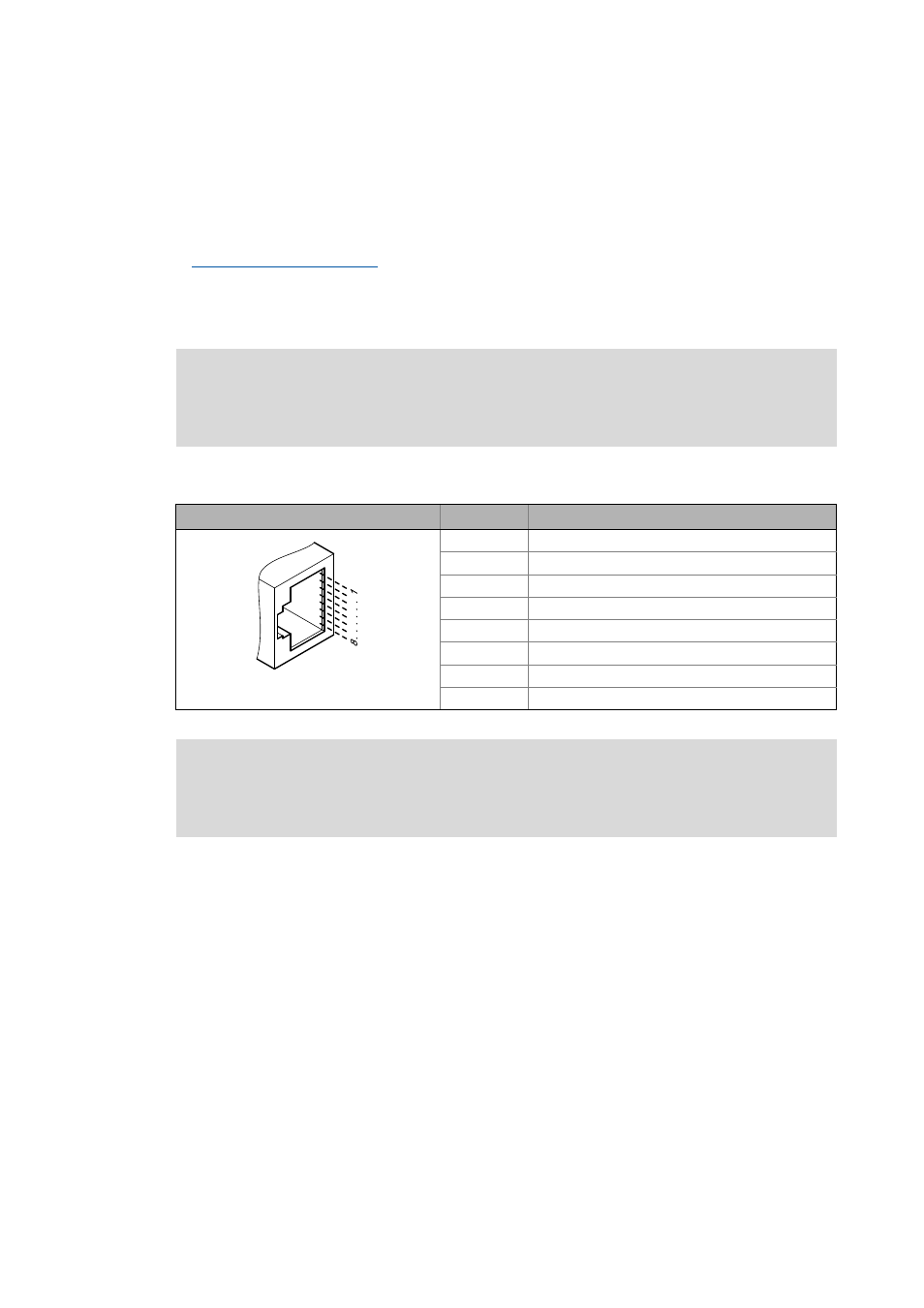

RJ45 socket Pin Signal
E94AYCXX004C
1 Tx +
2 Tx -
3 Rx +
4 -
5 -
6 Rx -
7 -
8 -

Note!
Dependent on the configuration of the Ethernet port of the device to be connected, we
recommend the use of a cross-over cable.
