8 I/O data transfer (implicit messages)
8.4 I/O configuration with »RSLogix 5000« version 20 or higher
67
Lenze · E94AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 12/2013 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

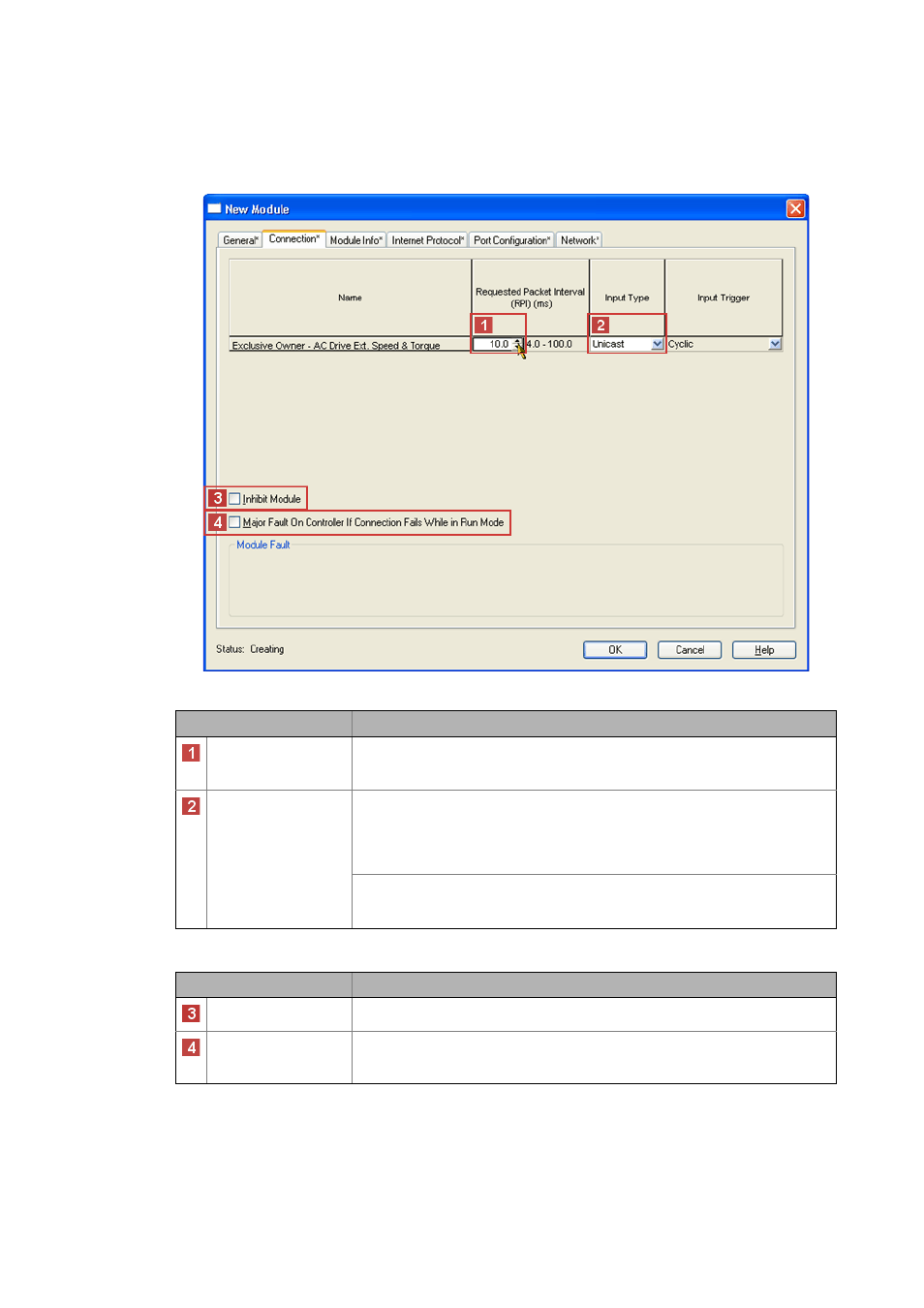

10. Open the "New Module" dialog window, select the Connection tab and set further
properties.
Required settings
Optional settings
Settings Description
Requested Packet
Interval (RPI)
Set RPI  2.0 ms. (Standard: 10 ms)
The RPI [ms] specifies the intervals for the I/O data exchange between the drive
(adapter) and the controller (scanner).
Input type "Multicast" input type:
• The input data is sent from the adapter to the scanner by means of multicast
telegrams.
• Other scanners can access this data in addition to the currently configured
scanner ("Listen only" or "Input only" connections).
"Unicast" input type:
The input data is sent from the adapter to the scanner by means of unicast
telegrams.
Settings Description
Inhibit module This option serves to interrupt or inhibit the communication to the adapter.
Major Fault On
Controller If Connection
Fails While In Run Mode
This option serves to put the scanner into the error status if the EtherNet/IP
connection to the drive (adapter) fails while the scanner is in operation.
