7 Data transfer
7.3 EtherNet/IP state diagram
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.3 EtherNet/IP state diagram

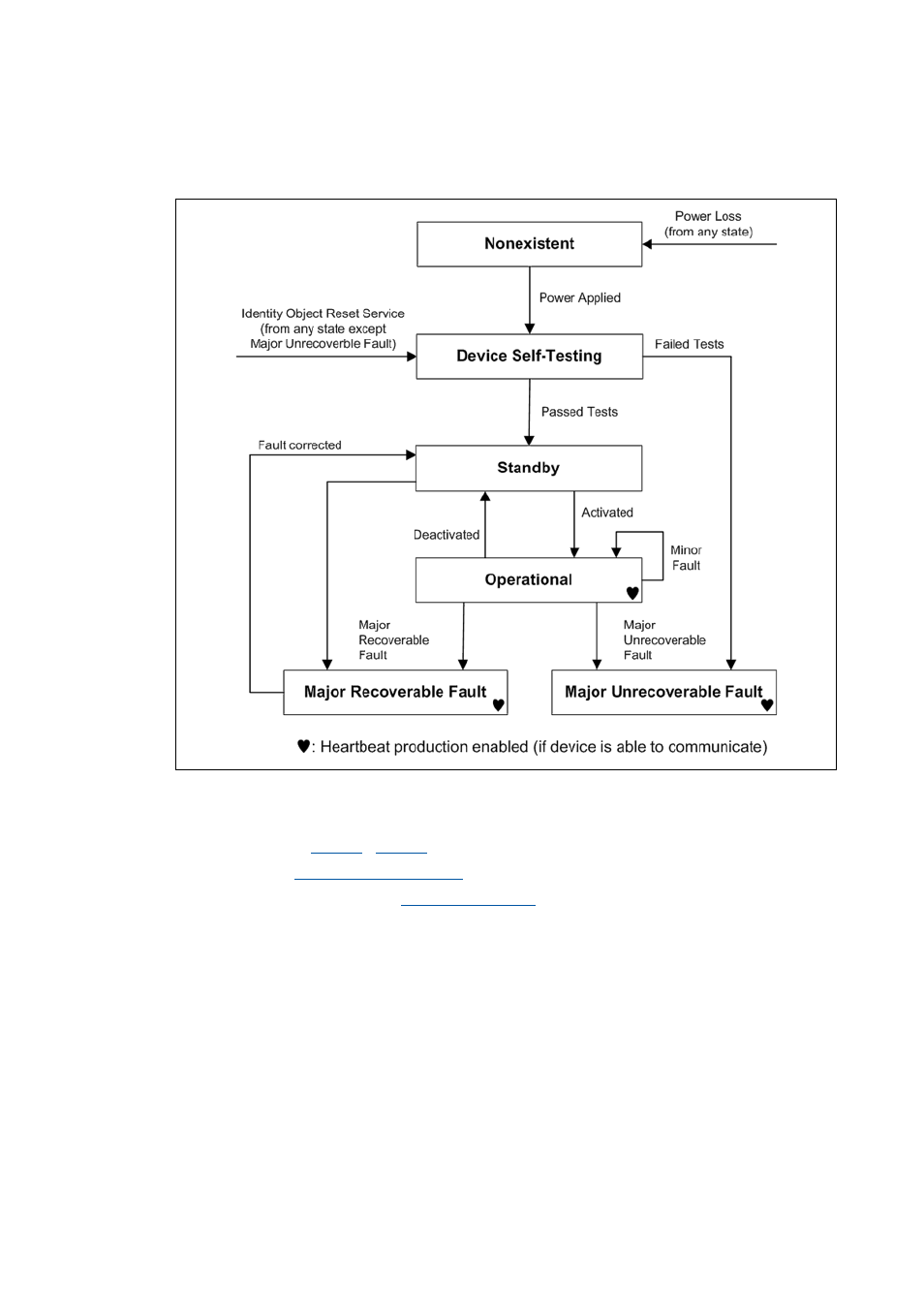

[7-1] EtherNet/IP state diagram
The current EtherNet/IP device state is ...
• output via code C13861 / C14861 ;
• output in the Identity Object (1 / 0x01) ( 121) via instance attributes 5 and 8;
• indicated via the LED MS (see CIP™ status displays ( 78) ).
