I/O data transfer (implicit messages)

8.3

I/O configuration with »RSLogix 5000« version 19 or lower

59

Lenze · E94AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 12/2013 · TD17

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

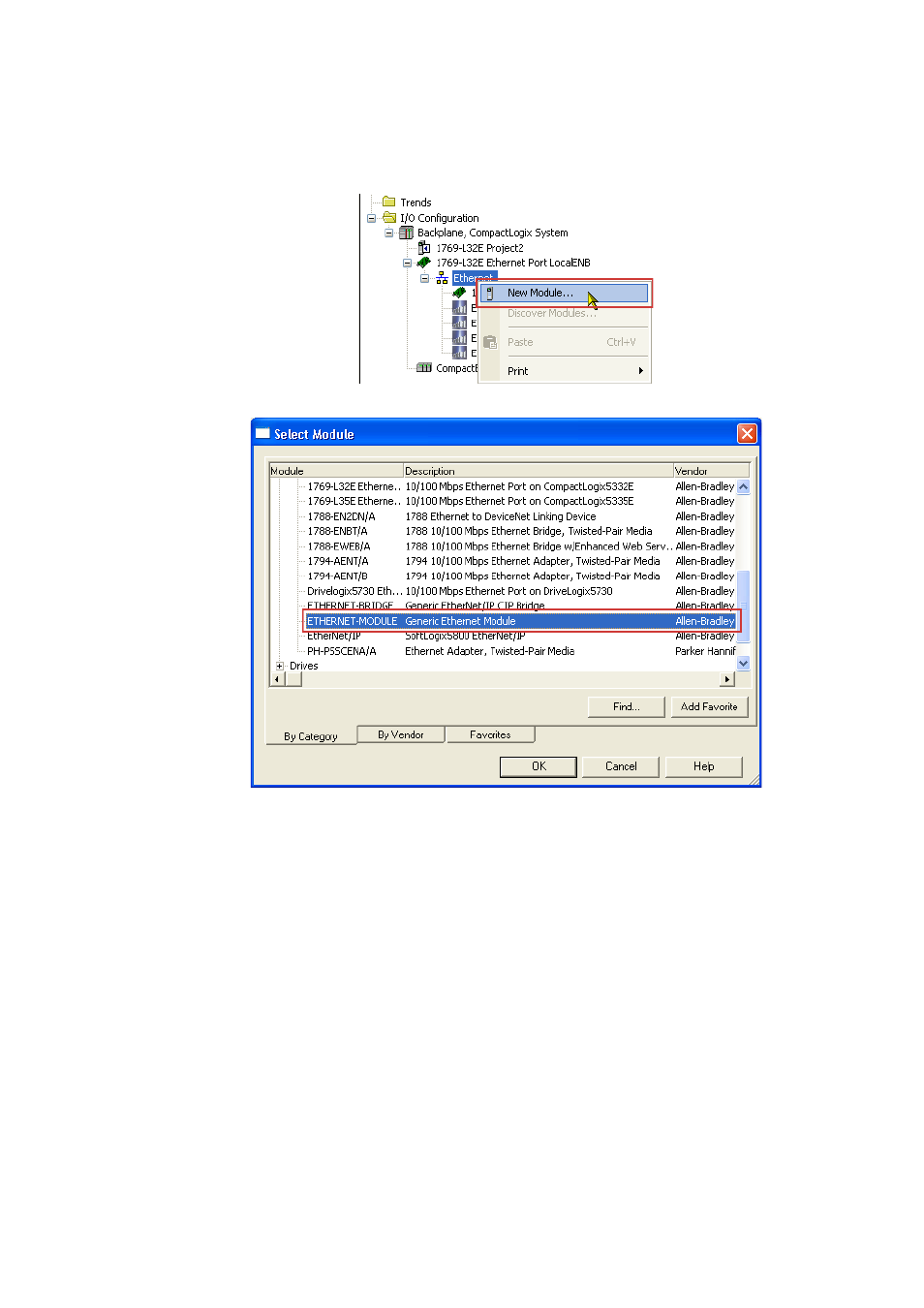

2. Right click on "Ethernet" and execute the "New Module ..." command from the context

menu.

3. Open "Communications" and select "ETHERNET-MODULE | Generic Ethernet Module".

4. Confirm the selection by clickingOK.
