Programming
34
Quick Rack Setup
The “Quick Rack Setup” menu provides you with easy access to set or edit the most
important dimmer rack properties. Voltage, Rack Type, and Temperature settings are
automatic settings (Auto) provided by the Echo ACP.
Notice also that rack property defaults have already been made for you and are indicated
in the default menu. Changing any of these settings will affect the entire DRd enclosure.
When a property has been changed, an asterisk “*” will display next to the changed value.
When you have made all property adjustments desired, scroll to the bottom of the menu.
Select “Apply Changes * Only” to save only the changes (indicated with an asterisk*) or
select “Apply All” to save all of the currently displayed settings in the “Quick Rack Setup”
menu.
Voltage L-N
This setting is automatically detected by the Echo ACP and should not need to be changed.
These settings include 100-130, 220-240, and 277V AC.
Step 1:
Use the touch wheel to scroll to “Voltage L-N”, press enter (
) repeatedly to
cycle through the available options.
Step 2:
When the desired value is displayed, use the touch wheel to scroll to the next
setup option or scroll to “Apply Changes Only” or “Apply All”. Press enter (
) to
select.
Rack Type
This setting is automatically detected by the Echo ACP and should not need to be changed.
These settings include DRd6, DRd12 and DRd24.
Step 1:
Use the touch wheel to scroll to “Rack Type”, press enter (
) repeatedly to
cycle through the available options.
Step 2:
When the desired value is displayed, use the touch wheel to scroll to the next
setup option or scroll to “Apply Changes Only” or “Apply All”. Press enter (
) to
select.
C A U T I O N :
Use extreme caution when adjusting settings that default to “Auto” as these affect
important aspects of your dimming configuration. For example, the voltage setting
determines which dimmer modules are available for selection.

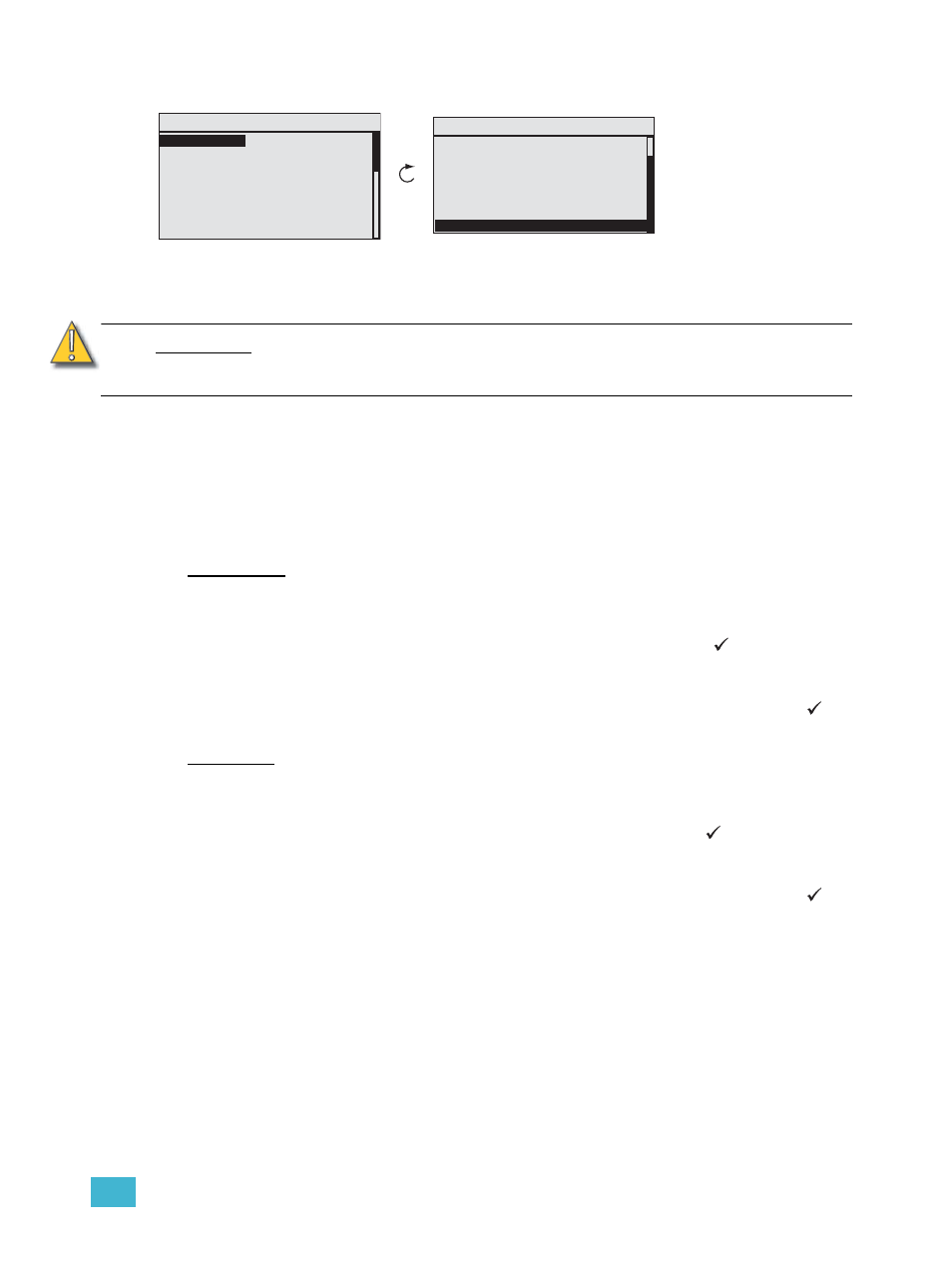

Quick Rack Setup
Voltage L-N
Auto
Rack Type:
Auto
Module Type:
D20
Balance:
Straight
DMX Start Addr:
1
sACN Universe:
1
sACN Start Addr:
1
Apply Changes* Only
Quick Rack Setup
DMX Start Addr:
1
sACN Universe:
1
sACN Start Addr:
1
Space:
1
Temp:
Auto
Apply Changes* Only
Apply All
