1
UI Overview and Installation
12
Enter
The enter button (
) is used to commit an edit or an action such as to make a selection
from the menu list or to commit a selected value.

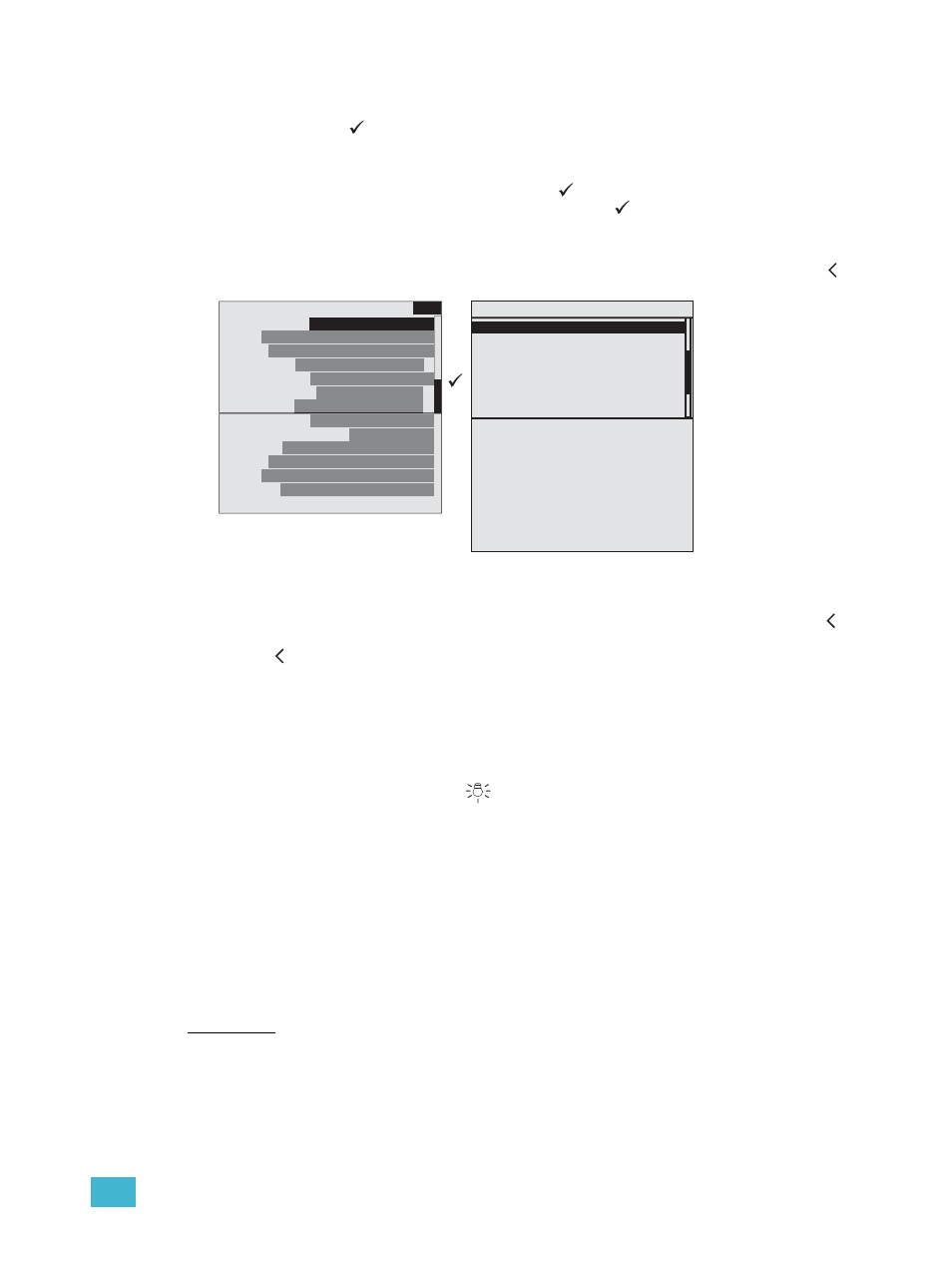

When focus is on the first text value (“Module Type:” in the example below) and an edit or
change to the selection is desired, press enter (
). The display changes to select the
Module Type. Scroll to select the type and press enter (
) to make the selection and
return to the Dimmer Setup menu. Scroll again to change focus to the next selectable
parameter for edit.
When all selections and edits have been made for the display, press the back button ( )
to return to the previous menu.
Back
To cancel an entry or selection and return to the previous menu, press the back button ( ).
When selection focus is on a specific value and you cancel the edit by pressing the back
button ( ), focus changes to the previous selectable value.
Multiple presses of the back button will eventually take you to the status display, either the
Dimming Rack Status (DRd only) display or the Arch Control Status display, whichever was
viewed last.
Control Menu Shortcut
The control menu shortcut button (
) provides easy access to the dimming and
architectural control menus.
Press the control menu shortcut button once to access the dimming control menu. Press it
again to access the arch control menu.
Numeric Button Pad
The numbers on the button pad may be used to select specific menu items when using
#nav shortcuts is enabled, or to enter a specific value such as a dimmer number, intensity
value, etc., while in a selectable menu. Additionally, the button pad may be used to
numerically search the menu. When a “abc” graphic is displayed in the right corner of the
display, numeric searching may be used.
Recentand
The [recent and] button is a dual function button.
•
Used as a menu navigation shortcut, pressing [recent/] at any point in navigation
displays a list of the last seven device menus that have been accessed, with the most
recent first in the list. Selecting any of the listed items automatically directs you to that
Dimmer Setup
Module Type:
D20
Mode:
Normal
Curve:
Mod Square
Threshold:
1
%
Voltage Reg:
On
Max
Scale:
118
V
Min Scale:
6
V
Dyn Preheat:
Off
Transformer mode:
On
DMX Res:
Hi 16 bit
Space:
1
Zone:
1
Circuit:
1
Name:
Circuit
1
1
Module Type
D20
D20E
D20F
ELV10
L10
L10F
R15
R20
D15FB
D20FB
AFM
CC15
CC20
D15
D15E
D15F
None
